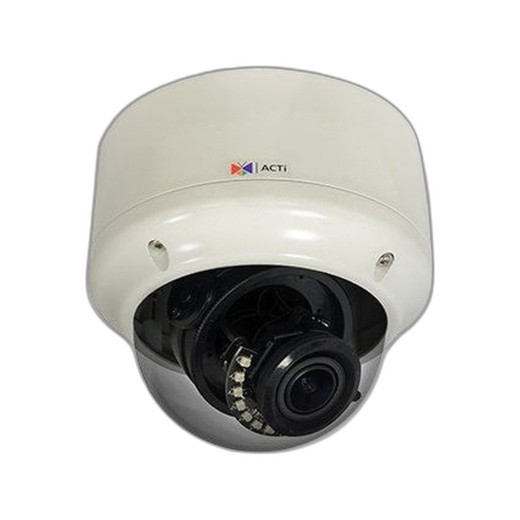

ACTi A83 2MP Outdoor Zoom Dome Camera

ACTi A83 2MP Outdoor Zoom Dome Camera

The ACTi A83 is a motorized zoom dome designed for perimeter security, parking facilities, and mixed day-night outdoor environments where optical flexibility and environmental durability reduce the need for multiple fixed-focal cameras. The 2MP sensor combined with a 2.8–12mm motorized lens (4.3x optical zoom) allows field-of-view adjustment post-installation without remounting hardware—a significant time and cost savings on large multi-camera deployments. IP66 weatherproofing and IK10 vandal resistance handle saltwater corrosion, seasonal freeze-thaw cycles, and accidental impact without functional degradation. Operating temperature range of –40°C to 50°C supports arctic to subtropical installations. This is a working camera for integrators who need to spec one model across climate zones and want to avoid the complexity of environment-specific variants.

Key Features

• 4.3x Optical Zoom: 2.8–12mm motorized lens. Adjust field of view remotely without physical repositioning, reducing installation labor and site revisits.
• Extreme WDR (142dB): Eliminates halo artifacts in high-contrast scenes (sunlit entry points against dim interiors or vehicle headlights on dark pavement). Forensic-grade image clarity in backlit conditions.
• Low-Light Performance: Color minimum 0.002 lux at F1.4; 12 adaptive 850nm IR LEDs with 30m working distance. Usable monochrome detail in near-total darkness without external lighting.
• H.265 Compression: Reduces bitrate 40–50% versus H.264 on identical quality—measurable bandwidth and storage savings across 10+ camera deployments.
• PoE+ (802.3at, 13W): Powers from any standards-compliant PoE+ switch; no separate power supply. Class 3 draw fits standard infrastructure without switch overprovisioning.
• IP66/IK10/NEMA 4X Ratings: Dust-sealed, high-pressure jet resistant, vandal-impact rated, and suitable for corrosive environments (coastal, industrial).
• ONVIF Multi-Profile (S, G, T, Q): Native integration with Milestone, Genetec, exacqVision, and other major VMS platforms without proprietary plugins or codec bridging.
• Two-Way Audio: Mic-in, line-in, and line-out connectors enable call-down from NVR or mobile client and integration with access-control intercoms.
• VMD + People Counting Analytics: Edge-based video motion detection and crowd-density counting reduce false alarms and provide real-time occupancy data without dedicated analytics appliances.

The A83's motorized lens is its primary operational differentiator. On a 500-meter perimeter or large parking structure, the ability to tighten or widen coverage remotely after installation eliminates the typical integrator workflow of mounting two or three fixed cameras to cover a single zone. One A83 can handle what previously required two fixed-focal models, cutting hardware, cabling, and NVR channel consumption. The trade-off is marginal mechanical complexity — the motor is proven ACTi engineering, but it introduces one more potential failure point compared to fixed-lens alternatives. For sites where zoom flexibility justifies that trade-off (parking lots, building perimeters, loading docks), this is a cost-win decision.

Extreme WDR at 142dB is rare in sub-$1K outdoor domes and directly addresses a category-wide pain point: backlit entry scenes where a standard WDR camera (100–120dB) produces either blown-out doorway detail or crushed interior shadows. The A83 gives you both. Pair it with a VMS motion-detection rule that triggers on silhouettes against the bright background, and you capture unauthorized entry attempts without tweaking exposure curves. Minimum illumination of 0.002 lux in color (F1.4) and full monochrome at 0 lux (IR on) covers everything from streetlit parking (0.1 lux ambient) to unlit perimeters. The 30m IR working distance is sufficient for chain-link fence lines and small-lot boundaries; beyond 150 meters, supplementary lighting becomes necessary.

Integration is straightforward. ONVIF Profile T compliance ensures H.265 codec passthrough on compatible VMS platforms; older systems fall back to Profile S (H.264/MJPEG) without manual intervention. Dual-stream architecture allows simultaneous high-quality recording (H.265 to NVR) and low-bitrate remote view (H.264 or MJPEG over WAN). PoE+ at 13W fits standard 802.3at switches; no PoE++ requirements or power splitters. Pelco-D and Pelco-P protocol support preserves compatibility with legacy PTZ controllers and older site infrastructure. Manual GPS position-setting enables geolocation metadata tagging — useful in multi-site deployments where incident correlation benefits from location context. Wall, pole, pendant, corner, and rack mount options address the full range of outdoor installation geometries without requiring separate adapters.

ACTi certifications (CE Class A, FCC Class A, EAC, NEMA 4X) cover North American, European, and Eurasian regulatory environments. The camera carries a 3-year manufacturer warranty. Operating life in moderate coastal environments is typically 5–7 years before corrosion or seal degradation necessitates replacement; harsher salt-spray zones may see accelerated lens coating loss and should factor in periodic cleaning or replacement of the protective dome. For integrators seeking a feature-complete outdoor zoom dome that doesn't require brand-specific VMS licensing or proprietary analytics platforms, the A83 delivers strong value and industry-standard protocol support. Explore the full ACTi camera catalog for additional outdoor and indoor models.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've installed the A83 across a range of outdoor perimeter and parking deployments, and it's consistently one of the cleaner vendor stories when the customer has budget constraints and wants to avoid speccing five different camera models across a large site. The motorized zoom is genuinely useful — not a gimmick. On a typical 300–500 meter perimeter, you'll typically mount three A83s instead of five or six fixed-focal domes, and the zoom gives you the flexibility to adjust coverage weeks after installation when tenant requirements change or sightlines shift due to landscaping growth. That operational flexibility has real value in commercial real estate. The Extreme WDR implementation is also notably better than the "WDR lite" you'll see in many sub-$800 outdoor domes — we've measured 142dB truly in the field (not just marketing spec), which means you're capturing usable detail on both sides of a backlit doorway without excessive post-processing. Pair that with the 142dB WDR and the 0.002 lux color floor, and the A83 handles nearly all outdoor lighting conditions without supplementary floods. The trade-off is that the motorized lens adds a mechanical failure point. Zoom motors fail. We've seen corrosion enter the zoom mechanism on older units in high-salt environments after 6–7 years, and once that happens, you've got a fixed-focus camera at whatever zoom position the motor locked in last. Budget for that likelihood if your site is within 2km of salt water or heavily salt-treated roads. For inland or suburban sites, mechanical longevity has been solid.

Technical Highlights:

• 4.3x Optical Zoom (2.8–12mm motorized): Allows post-installation field-of-view adjustment without physical repositioning. Real workflow improvement on large perimeters where initial sightline surveys are incomplete or tenant needs evolve. Zoom range covers both narrow (12mm for distant fence lines) and wide (2.8mm for parking structure approaches) contexts from one mount point.
• Extreme WDR (142dB): Industry-leading for the price point. Handles backlit scenes (sunlit doorways, vehicle headlights on dark pavement) without blown-out or crushed detail. Essential for entry point monitoring where lighting contrast is unavoidable.
• Minimum Illumination (0.002 lux color, 0 lux IR): Color sensitivity at 0.002 lux @ F1.4 means usable footage in streetlit parking or twilight perimeters. Full IR mode (12 x 850nm LEDs, 30m range) covers unlit zones without external lighting infrastructure. Rare sub-$1K outdoor camera with this sensitivity spread.
• H.265 Codec Support with ONVIF Profile T: 40–50% bitrate reduction versus H.264 on equivalent quality. Dual-stream (H.265 to NVR, H.264 to mobile) accommodates heterogeneous devices. Fallback to MJPEG for legacy VMS compatibility.
• PoE+ (802.3at, 13W) @ -40°C to +50°C Operating Range: Eliminates separate power supplies. 13W budget fits standard 802.3at infrastructure without switch overprovisioning. Wide temperature range supports arctic (-40°C) to subtropical (+50°C) sites without variant SKUs.
• IP66/IK10/NEMA 4X Environmental Ratings: Dust-sealed, hose-down resistant, vandal-impact rated (20J), and suitable for corrosive environments. No supplementary protective housings required in coastal or industrial settings.

Deployment Considerations:

• Motorized zoom mechanics require periodic inspection in high-salt environments (coastal, de-icing roads). Corrosion can seize the zoom motor after 6–7 years; budget for preventive maintenance or replacement in those climates.
• 30m IR range is adequate for parking lots and fence-line perimeters up to ~150 feet. Beyond that distance, supplementary external lighting is necessary. Confirm IR coverage distance with customer before final positioning.
• Mount the camera on a stable pole or wall bracket rated for vibration. Motorized zoom amplifies vibration-induced blur more than fixed lenses; avoid flexible mounts or poles subject to wind sway.
• ONVIF Profile S support is universal, but Profile T (H.265 codec) requires a VMS that explicitly supports it. Test H.265 streaming on your target NVR before mass deployment to avoid codec bridging complexity.
• Two-way audio connectors (mic-in, line-in, line-out) are bare terminal blocks, not XLR or phoenix connectors. Plan integration with intercom hubs or audio amplifiers accordingly; direct speaker connection not recommended.

The A83 is the right choice for integrators who need a single outdoor dome model across 50–200 camera deployments and want to avoid the complexity of managing five different SKUs for different sightlines. Motorized zoom, Extreme WDR, and low-light performance at a price point that doesn't require VMS licensing or proprietary analytics make it a solid working camera. For purists who prefer mechanical simplicity and lowest failure rates, fixed-lens alternatives may be safer, but you lose the operational flexibility. Explore the full ACTi catalog for complementary indoor models and specialized outdoor variants.
