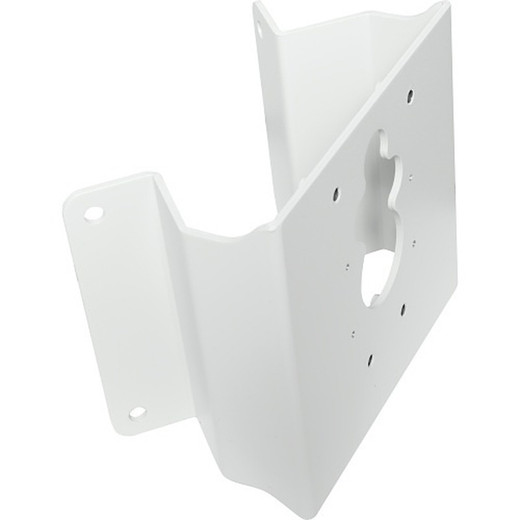

Axis 5504-711 Corner Bracket Mount
Overview
The Axis 5504-711 is a precision corner bracket designed to address a specific deployment challenge: mounting cameras at building or structure corners where dual or multi-angle coverage is required. Unlike wall or ceiling-only mounts, a corner bracket positions the camera at the intersection point, maximizing field-of-view overlap and eliminating blind spots at critical transition zones. This is especially valuable in retail environments, warehouse entry points, and perimeter security where a single camera must cover two adjacent wall faces or angles.
Key Features
- Corner-optimized form factor: Positions cameras at the inside or outside corner junction, allowing a single unit to surveil two directions simultaneously without requiring two separate mounts and cameras.
- RAL 9003 Signal White finish: Non-reflective white coating blends into standard building interiors, reducing visual prominence on ceilings and walls — important for retail or office settings where aesthetics matter alongside security.
- Weather-resistant construction: High-quality materials resist moisture, dust, and minor environmental stress. Suitable for both sheltered indoor installations and covered outdoor areas (not fully submersible; confirm specific IP/IK ratings against your camera model's datasheet).
- Lightweight design at 1.8 kg (3.97 lbs): Low mass reduces structural load on ceiling or wall systems, simplifying installation on drywall, drop ceilings, or lightweight building materials without requiring reinforced mounting points.
- Includes mounting hardware: All fasteners and templates are included, reducing procurement delays — no separate trips for brackets, bolts, or anchors.
- Broad model compatibility: Designed to fit Axis P5414-E/15-E, Q1765-LE, Q1931-E, and P33-VE series cameras, covering a range of Axis IP camera families from fixed-mount compact units to multi-sensor panoramic designs.
Integration and Mounting Considerations
Before specifying the 5504-711, verify your camera model is listed in the compatibility matrix above. If you are deploying Axis IP cameras in an environment requiring corner coverage — such as retail loss-prevention, warehouse receiving areas, or building perimeter monitoring — confirm the corner bracket is structurally rated for your selected camera's weight. The 1.8 kg mount itself is light, but when paired with a heavier Axis model (such as certain Q-series PTZ or multi-sensor units), the combined load must be within the bracket's load rating (verify in the product datasheet).
For outdoor IP camera corners or weather-exposed installations, confirm the bracket's weather resistance is adequate for your climate. Sheltered building corners (under eaves, in covered loading docks) typically present no issue; however, fully exposed outdoor corners in high-rain or salt-spray zones may benefit from additional protective coatings or sealing of fastener holes.
Installation typically involves anchoring the bracket to the corner junction using the provided hardware, then mounting the camera to the bracket using standard Axis camera mounting threads. Ensure electrical conduit or PoE cable routing does not interfere with bracket positioning, particularly in tight corner spaces.
When to Choose a Different Approach
If your deployment requires 360-degree or pan-tilt coverage from a single corner mount, a PTZ camera (such as an Axis Q series PTZ) may be more cost-effective than multiple fixed-angle corner-mounted units. If you need guidance on camera selection to determine whether corner mounting or alternative positioning is optimal for your site, consult a site survey or systems design checklist before committing to bracket inventory.
Frequently Asked Questions
Q: Is the Axis 5504-711 compatible with all Axis camera models?
A: No. The 5504-711 is designed for specific Axis camera series: P5414-E/15-E, Q1765-LE, Q1931-E, and P33-VE. Verify your camera model against this list before purchase. If your model is not listed, contact Axis technical support or consult the camera's datasheet for compatible mounting solutions.
Q: Can the 5504-711 be used for outdoor corner installations?
A: The bracket is weather-resistant and suitable for covered outdoor areas (sheltered corners under eaves, awnings, or covered loading docks). For fully exposed outdoor corners subject to direct rain, salt spray, or extreme temperature swings, verify the bracket's specific IP and IK ratings against your environmental requirements and consider additional protective measures.
Q: What is the weight limit for cameras mounted on the 5504-711?
A: The bracket itself weighs 1.8 kg. The load capacity for your specific camera depends on both the bracket design and the mounting surface (ceiling, wall, reinforcement). Consult the detailed product datasheet or Axis technical specifications to confirm the maximum supported camera weight.
Q: Does the 5504-711 include all necessary mounting hardware?
A: Yes. The package includes all fasteners and installation hardware required for deployment. No additional bolts, anchors, or adapters should be necessary, provided your mounting surface and camera model are compatible.
Q: Is the white finish (RAL 9003) paintable or adjustable?
A: The bracket arrives in RAL 9003 Signal White. If a different color or finish is required, consult Axis sales support or a qualified integrator about custom coating options — standard paint over the bracket may affect environmental resistance.
Q: What is the typical installation time for the 5504-711?
A: Installation typically takes 30–60 minutes per corner, depending on ceiling/wall construction, fastener requirements, and whether cable management is needed. Ensure structural anchors are appropriate for your mounting surface (drywall anchors vs. concrete bolts, for example).
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5504-711 corner bracket is one of those unglamorous infrastructure pieces that makes the difference between a one-camera blind spot and actually covering a corner. At 1.8 kg and with included hardware, it eliminates two common headaches: you don't need dual cameras at the same corner junction, and you don't need to source fasteners separately. The RAL 9003 white finish blends into typical office and retail ceilings, which matters if aesthetics are part of your compliance or tenant-satisfaction checklist.
Technical Highlights:
- Corner-junction design: Single mount covers two adjacent wall/ceiling angles, reducing equipment count and PoE line runs compared to deploying two separate wall-mounted cameras.
- 1.8 kg lightweight structure: Installs without reinforcement on standard drop-ceiling grid or drywall, cutting installation labor time and avoiding costly structural modifications.
- Weather-resistant materials: Suitable for sheltered outdoor corners (covered loading docks, under eaves) without additional protective coatings — though fully exposed corners in high-rain regions should be evaluated against specific IP/IK ratings.
- Complete fastener kit: All installation hardware included eliminates secondary procurement and streamlines deployment scheduling.
Deployment Considerations:
- Compatibility is restricted to four Axis camera families (P5414-E/15-E, Q1765-LE, Q1931-E, P33-VE). Verify your camera model before ordering — no universal fit here.
- Load capacity depends on both the bracket and your mounting surface. If you're hanging this on drywall or drop ceiling, confirm the structural anchoring is rated for your camera's weight plus the bracket's 1.8 kg.
- Corner installations can create cable management friction — route PoE and power carefully around the bracket junction to avoid crimping or binding connectors, especially in tight corner spaces.
The 5504-711 makes sense in retail stores, warehouse corners, and office building transitions where a single corner mount eliminates a second camera and associated cable run. Skip it if your corner requires pan-tilt coverage or if you're integrating with a camera model outside the compatibility list — a wall-mount or pole-mount will be more flexible.
