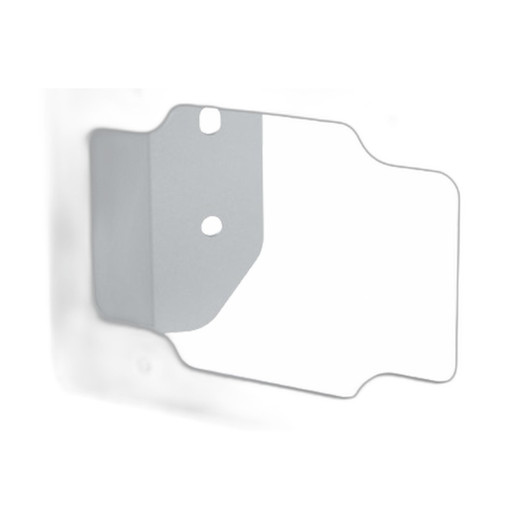

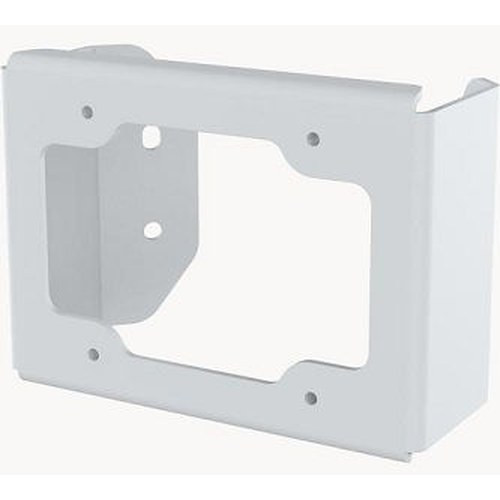

Axis 03003-001 Corner Bracket Mount
The Axis 03003-001 is a purpose-built mounting bracket engineered for network camera installations at building corners and wall junctions. This accessory solves the specific geometry challenge of positioning a single camera to cover two adjacent exterior walls — a common perimeter security requirement that standard L-brackets or pendant mounts handle poorly.
Key Features
- Corner-specific geometry: Designed to position cameras at the junction of two walls, eliminating sight-line gaps and reducing the number of cameras needed for full perimeter coverage.
- IK8 impact rating: Rated to withstand deliberate strikes and blunt-force vandalism attempts — IK8 means up to 5 joules of impact energy. This is relevant in exposed outdoor corners where cameras are visible and potentially targeted.
- Compact, low-profile design: Minimizes visual bulk and integration footprint compared to heavier steel L-brackets. The sleek form factor works in retail, institutional, and commercial settings where aesthetics matter alongside security.
- Straightforward installation: Axis-designed mounting interface ensures alignment without custom drilling or field-fabrication. This reduces installation labor and the risk of misalignment that requires rework.
- Compatible with Axis IP camera systems: Works with the full range of Axis compact and mini-dome cameras, as well as select turret and bullet models. Compatibility depends on the specific camera's mounting footprint — confirm your camera model before purchase.
- Weatherproof housing: Bracket materials and fasteners are corrosion-resistant, suitable for outdoor exposed mounting. No separate weather boot is typically required for the bracket itself, though the camera's own IP rating governs overall weather resistance.
Integration & Compatibility
The 03003-001 mount uses Axis's standard VAPIX mounting interface, common across Axis compact cameras. Before specifying this bracket, verify that your chosen camera model supports wall or corner mounting — some compact domes are designed for ceiling-only installation. If you are integrating this into a larger network video recorder or VMS deployment, the bracket itself has no impact on recording capacity, codec support, or analytics; it is purely a mechanical positioning accessory.
Typical Use Cases
Deploy the 03003-001 at building corners where two perpendicular walls meet and you need surveillance of both directions from a single vantage point. Common scenarios include warehouse perimeters, retail building corners, gated facility entries, and institutional campuses where corner coverage reduces blind spots. This bracket is NOT suitable for ceiling mounting, pendant applications, or panoramic multi-sensor cameras.
Deployment Considerations
The corner geometry of the 03003-001 (often searched as 03003 001) assumes the camera's lens will face outward at roughly 45 degrees to each wall, or be angled per your specific requirements. Verify cable routing—the bracket positioning may constrain conduit entry paths, especially in tight corners. Wind load and vibration damping depend on the total mass of the attached camera; lightweight compact domes experience minimal sway, but larger zoom or PTZ cameras may require supplemental bracing in high-wind environments.
