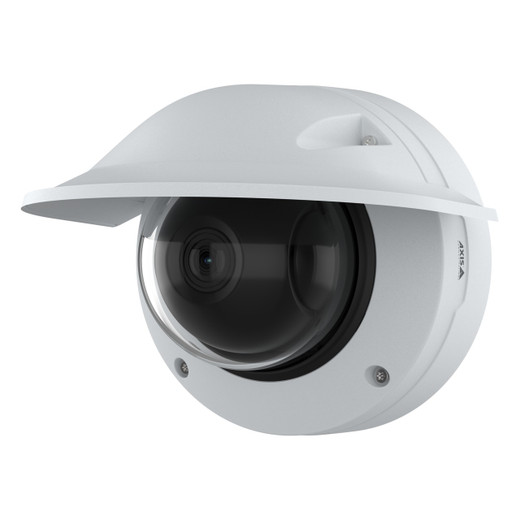

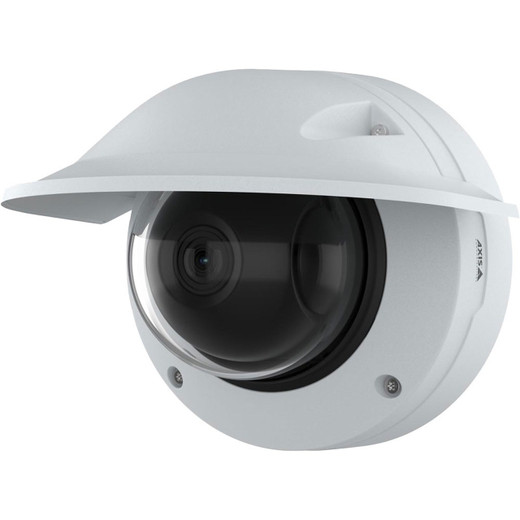

Axis 02617-004 Q3628-VE 8MP Varifocal Lightfinder Forensic WDR Outdoor Dome IP Camera
The Axis 02617-004 is an 8MP outdoor dome camera purpose-built for high-detail forensic surveillance in variable lighting. Its combination of varifocal optics (6.2–12.9 mm, F1.6–2.9), Lightfinder 2.0 technology, and Forensic WDR means you get usable detail in sunlit scenes and near-darkness on the same recording—without the false color or motion blur that plague cheaper WDR implementations. That matters when your integration needs to cover a parking lot from dawn to dusk without switching cameras or reconfiguring exposures.
Key Features
- 8MP Resolution (3840 × 2160): Delivers 8 megapixels of data per frame, supporting detailed license-plate reads and facial recognition at range in forensic review. More pixels = more evidence detail when zoomed into recorded footage.
- Varifocal Lens, Remote Adjustment (PTRZ): The 6.2–12.9 mm varifocal lens covers a horizontal field of view from 103° (wide, for perimeter coverage) down to 48° (tighter, for detail). Remote pan-tilt-roll-zoom (PTRZ) lets you adjust the view after installation—saves climbing a ladder or drone rental if you need to pivot coverage. Critical for retrofits where exact mounting height or angle isn't known until live testing.
- Lightfinder 2.0 + Forensic WDR: Lightfinder 2.0 boosts sensitivity in low-light scenes, preserving true color and detail even near dusk or in shadows. Forensic WDR (wide dynamic range) holds detail in both bright and dark regions of a scene—for example, a shadowed parking structure entrance against a bright exterior wall. Together, they eliminate the need for separate day/night profiles or manual gain adjustment. Frame rate stays at 25/30 fps (50/60 Hz) across all resolutions even with Forensic WDR active, so no motion smoothing penalty.
- Vandal Resistance (IK10) + Electronic Stabilization: IK10 rating means the dome can withstand direct impact (up to 20 joules) without cracking—relevant for high-traffic or adversarial environments. Electronic image stabilization smooths vibration-induced jitter (from wind or nearby traffic), ensuring steady footage even in exposed locations.
- ARTPEC-8 SoC + Deep Learning Processing Unit: The latest Axis system-on-chip includes a dedicated deep learning processor unit (DLPU) on-device. This means object detection, tracking, and analytics run locally without sending video streams to an external analytics server, reducing bandwidth consumption and latency. Deploy on-camera analytics directly without separate GPU hardware.
- IP66 Rated, Sealed Connectors: IP66 means dust-tight and able to handle water sprayed from any direction (hose-down, heavy rain, spray from cleaning trucks). The shielded RJ45 Ethernet connector is weatherproofed, so you can install this outdoors without a separate junction box. Skip this camera if you need full submersion protection (that requires IP67).
- PoE Powered, Low Budget Overhead: Draws maximum 25 W via PoE (IEEE 802.3at Type 2 Class 4), or 10–28 V DC auxiliary. A standard PoE switch with sufficient power budget can handle multiple units without upgrade. Typical draw is only 7 W, so even older PoE infrastructure may suffice—verify your switch's per-port limit.
- Axis Edge Vault + Secure Boot: Built-in cybersecurity: signed firmware, secure boot, and Axis Edge Vault simplify device authorization and guard against tampering. Aligns with enterprise zero-trust network policies and NDAA compliance reviews if your organization requires vendor-neutral device vetting.
- H.264 Compression: Uses H.264 (AVC) codec. For storage-critical deployments, H.264 at 8MP and 25/30 fps will consume roughly 5–10 Mbps depending on scene complexity and motion. If you need lower bitrate, consider querying the datasheet for H.265 support or looking at lower-megapixel variants in the Axis outdoor dome line.
Integration & Compatibility
The 02617-004 connects via standard Gigabit Ethernet (1000BASE-T) with PoE or 10–28 V DC. It outputs H.264 video streams compatible with ONVIF Profile S and common video management systems (Milestone, Axis Camera Station, etc.). The ARTPEC-8 SoC supports AXIS Object Analysis for motion detection and object tracking directly on the device—no external encoder or edge appliance required. Confirm VMS compatibility with your chosen platform before purchase; most modern systems support this camera family, but proprietary or very legacy systems may require firmware or client updates.
When to Choose a Different Model
If you need lower power consumption or a simpler feature set (no analytics, no WDR), consider a fixed-lens outdoor dome in the same Axis family. If forensic detail at extreme zoom is critical and your mounting point allows rigid PTZ (not just PTRZ adjustment), a motorized PTZ camera with 30x+ optical zoom may deliver tighter detail, though at higher cost and complexity. For indoor-only applications, Axis offers more compact, lower-cost alternatives without the vandal and environmental hardening.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02617-004 lands in that expensive-but-necessary category: outdoor domes with genuine forensic detail and low-light performance. The 1/1.2″ CMOS sensor, paired with Lightfinder 2.0 and Forensic WDR, means you're not gambling on a dark-hour recording being usable. That sensor size and the ARTPEC-8 with on-chip DLPU are the real reasons to spec this camera—they directly impact whether your team can actually extract evidence from the video.
Technical Highlights:
- 1/1.2″ Progressive Scan CMOS Sensor: Larger than the typical 1/2.8″ in budget outdoor domes. Bigger pixels gather more light, so Lightfinder 2.0 doesn't have to artificially amplify a weak signal—you get genuine detail without noise creep. That's the difference between a readable license plate and a pixelated smear at dusk.
- Forensic WDR at 25/30 fps Across All Resolutions: Many budget cameras reduce frame rate when WDR is active or drop resolution. This one doesn't. You get smooth 30 fps forensic-quality video even in mixed sunlit–shadowed scenes. For parking lots with dappled shadows or storefronts lit by interior lights against exterior darkness, that consistency is worth the premium.
- ARTPEC-8 + DLPU for Local Analytics: Object detection and tracking run on the camera itself. No separate edge server, no per-stream licensing from a cloud vendor. Deploy motion zones and people-counting analytics immediately on installation—bandwidth footprint stays low because you're not streaming full-resolution video to a backend.
Deployment Considerations:
- PTRZ, Not Full PTZ: This is pan-tilt-roll-zoom applied to a fixed-mounted dome after installation—not a motorized ball that follows motion in real time. If you need to track a moving subject automatically, you need a true PTZ camera. The 02617-004 is for repositioning coverage during setup or when playback review reveals a blind spot.
- PoE Budget Creep: At typical 7 W, the 02617-004 is lean, but running 16+ units on a single 60 W PoE switch means you need a switch that actually delivers its rated power per port—many don't. Budget for a dedicated security-grade PoE switch or validate that your existing infrastructure has headroom before installing.
- Varifocal Adjustment Learning Curve: Remote PTRZ is convenient, but varifocal lenses require focus-assist tools or live preview to dial in correctly. If your team hasn't tuned varifocals before, plan for a 15–30 minute per-camera commissioning window. Worth it, but not install-and-forget.
Ideal for high-security perimeter surveillance—parking lots, loading docks, building facades, critical infrastructure—where forensic detail and 24/7 usable footage matter more than cost. Skip this if your budget is fixed or if your lighting is exceptionally stable (constant indoor lighting, no shadows). For those cases, a fixed-lens 5MP outdoor dome will do the job at half the price.
Frequently Asked Questions
Q: Does the Axis 02617-004 support H.265 compression?
A: The specification sheet lists H.264 as the primary compression codec. Verify H.265 support with the manufacturer or your distributor's configuration tool before relying on it for storage savings.
Q: What's the actual maximum frame rate with Forensic WDR enabled?
A: 25/30 fps (50/60 Hz PAL/NTSC) across all resolutions, including 8MP. WDR does not reduce frame rate on this model.
Q: Can I use the 02617-004 outdoors without a weatherproof housing?
A: Yes, it's IP66 rated—sealed against direct rain and hose-down spray. The shielded RJ45 connector is also weatherproofed. However, skip this camera if you need full submersion (IP67 or higher).
Q: Does remote PTRZ mean it automatically tracks moving objects?
A: No. PTRZ (pan-tilt-roll-zoom) is a manual or application-initiated adjustment after installation, not live automated tracking. For real-time object following, you need a motorized PTZ camera.
Q: How much bandwidth does the 02617-004 consume?
A: Approximately 5–10 Mbps in H.264 at 8MP and 25/30 fps, depending on scene complexity and motion. Scenes with static backgrounds use less; high-motion areas use more. Test with a bandwidth calculator using your specific lighting and recording profile.
Q: Is the 02617-004 compliant with NDAA Section 889?
A: The specification sheet does not explicitly state NDAA compliance. If this is a requirement, confirm with the manufacturer or your security integrator before purchase.
