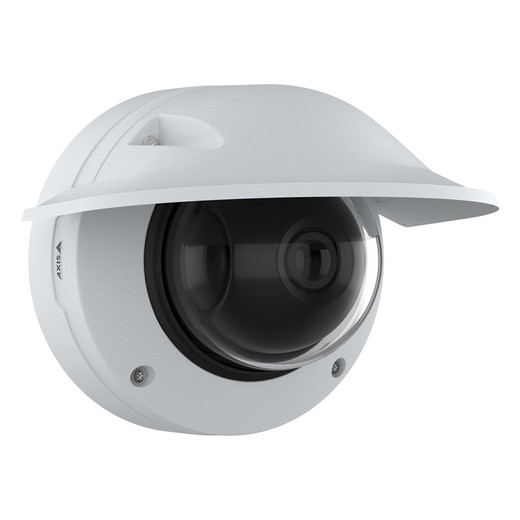

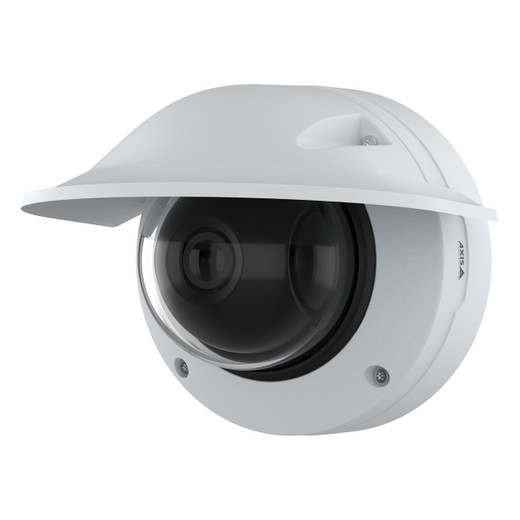

Axis Q3626-VE 4MP Varifocal Outdoor Dome Camera - 02616-004

Axis 02616-004 4MP Varifocal Outdoor Dome IP Camera

Overview

The Axis 02616-004 is a 4MP outdoor dome camera engineered for perimeter and wide-area surveillance where flexible zoom and low-light performance matter. Built on the ARTPEC-8 system-on-chip with integrated deep learning processing, this camera combines a motorized varifocal lens (4.3–8.6 mm, F1.5–2.4) with Lightfinder 2.0 and Forensic WDR to maintain color fidelity and detail in variable lighting — think dawn/dusk transitions, mixed sunlight and shadow, or overcast skies. The 1/1.8" progressive scan CMOS sensor delivers 2688×1512 (16:9) at up to 25/30 fps even with Forensic WDR enabled, so you don't sacrifice frame rate for dynamic range. Remote pan-tilt-roll-zoom (PTRZ) adjustment means you can reposition the lens view without sending a technician to the site — a real time-saver on large deployments or when coverage needs shift. IP66 and IK10 ratings handle direct rain, dust, and impact vandalism, making it suitable for exposed outdoor mounting on poles, eaves, or perimeter walls.

Key Features

• 4MP resolution (2688×1512, 16:9): Delivers enough pixel density for face identification at moderate distances and vehicle license plate capture on approach routes — typical for parking, entrance monitoring, and perimeter corridors.
• Varifocal 4.3–8.6 mm motorized lens: Adjusts on-demand to zoom from a wide 103° horizontal FOV down to 52° — eliminating the need for multiple fixed-lens cameras or manual lens changes during commissioning. PTRZ control happens over the network; no physical site visit required once installed.
• Lightfinder 2.0: Reduces noise and preserves natural color in low-light scenes (down to 0.01 lux equivalent with the F1.5 lens wide open). Useful for dusk/dawn monitoring and sites with minimal artificial lighting.
• Forensic WDR: Handles high-contrast scenes (bright sky, dark foreground) by balancing exposure across the sensor, then reconstructing detail in shadow and highlight regions. Maintains 25/30 fps even with WDR active — no frame-rate penalty.
• IK10 vandal resistance: Withstands 20 joule impacts (equivalent to a 5 kg weight dropped from 40 cm) — protects against casual damage and deliberate strikes. Combined with the dome form factor, this is a practical choice for accessible outdoor areas prone to tampering.
• IP66 environmental rating: Sealed against dust ingress and direct water jets. Not submersible (that requires IP67), but fine for rain, snow melt, and spray. Electronics remain dry in typical outdoor weather.
• PoE (IEEE 802.3at Type 2, Class 4): Typical draw is 7 W; peak is 25 W. Fits on standard PoE+ switches without strain. Dual power input also accepts 10–28 V DC if hardwired power is preferred.
• H.264 compression: Universally supported codec, proven for 24/7 recording. Storage efficiency is good on modern hardware; H.265 is not listed, so plan for slightly higher bitrates than newer models if archive size is tight.
• Deep learning processing unit (DLPU) on ARTPEC-8: Enables on-camera analytics (object detection, classification, counting). Reduces load on backend VMS and allows for edge-based alerting without streaming full-resolution video to a central server.
• Axis Edge Vault: Firmware signing and secure boot prevent unauthorized code injection. Paired with standard network controls (802.1X, TLS), this hardens the camera against network-level compromise.

Integration & Compatibility

The 02616-004 is ONVIF-compliant and integrates with any standards-based IP camera management platform, including Milestone XProtect, Genetec Security Center, and Axis Camera Station. Shielded RJ45 connectors support gigabit Ethernet (1000BASE-T), ensuring full bandwidth for high bitrate streams and rapid recovery from connection loss. H.264 is widely supported by NVRs and VMS software; confirm your chosen network video recorder supports the expected bitrate and resolution before commissioning. If you're building a PoE power infrastructure, account for the 25 W peak draw during lens adjustments and full-resolution recording.

When to Choose a Different Model

If your primary need is fixed-angle coverage with no zoom requirement, a comparable fixed-lens 4MP outdoor dome will be simpler and slightly lower cost. If low-light performance is critical and the scene is near-total darkness (parking garages, night perimeter without supplemental lighting), consider a higher-megapixel variant in the Axis Q36 family with higher F-number lens options or integrated IR. If you need full submersion capability (fountain monitoring, wet-room environments), you'll need an IP67-rated model instead.

Frequently Asked Questions

Q: Can I adjust the 02616-004's zoom and pan/tilt position remotely?

A: Yes. The remote PTRZ (pan-tilt-roll-zoom) adjustment happens over the network via any ONVIF-compliant management interface or Axis's own client software. Once mounted and powered, you never need to physically reposition the lens.

Q: What is the maximum infrared range on the 02616-004?

A: This model does not include dedicated IR illuminators. It relies on Lightfinder 2.0 to maximize sensitivity in existing low light. For total darkness (0 lux), you'll need supplemental IR lighting or a different camera model with integrated IR LEDs.

Q: Is the Axis 02616-004 NDAA Section 889 compliant?

A: Axis is a Sweden-based manufacturer. Compliance with NDAA Section 889 (restrictions on Huawei, ZTE, and Kaspersky) is not explicitly stated in the product specification. Confirm with your procurement or security team if this is a contractual requirement.

Q: Does the 02616-004 work with Milestone XProtect or Genetec?

A: Yes. The camera is ONVIF-compliant and supports standard IP camera integration protocols, allowing seamless integration into both Milestone XProtect and Genetec Security Center via ONVIF Profile S/T/G.

Q: What is the frame rate with Forensic WDR enabled?

A: The 02616-004 maintains up to 25 fps (50 Hz) or 30 fps (60 Hz) at all resolutions with Forensic WDR active. Unlike many cameras, there is no frame-rate reduction when WDR is on.

Q: Can I power the 02616-004 with 12V DC instead of PoE?

A: Yes. The camera accepts 10–28 V DC via a dedicated power terminal in addition to PoE (IEEE 802.3at). This is useful if you have existing hardwired power infrastructure and want to avoid PoE switch upgrades.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02616-004 is a solid midrange outdoor dome if your site has variable lighting and you want zoom flexibility without mechanical repositioning. The combination of Lightfinder 2.0, Forensic WDR, and a 4.3–8.6 mm varifocal lens hits a practical sweet spot for perimeter monitoring, parking, and entrance corridors where you can't pre-engineer fixed angles. The 4MP sensor and ARTPEC-8 chip give you enough pixel density for moderate-distance identification and room for edge-based analytics if your VMS supports ACAP plug-ins.

Technical Highlights:

• Forensic WDR with no frame-rate penalty: Most WDR implementations tank FPS when enabled. The 02616-004 holds 25/30 fps even in full WDR mode — means you don't drop to 15 fps when the sun is bright. Real advantage if you're doing license plate or face capture in mixed lighting.
• Varifocal 4.3–8.6 mm lens with remote PTRZ: Covers 103° down to 52° horizontal FOV. If you get the angle wrong on install, you can fix it from the VMS. Save a truck roll. The motorized zoom lets you reframe wide scenes without moving the camera.
• ARTPEC-8 with integrated DLPU: Onboard deep learning means object detection, counting, and classification can run at the edge. Reduces backend load and enables faster alerting — you don't have to stream everything back to the NVR to detect a person or vehicle.
• PoE+ at 7 W typical, 25 W peak: Fits on standard 95.3W PoE+ switches without strain. If you're daisy-chaining multiple cameras, the 02616-004 won't monopolize your power budget the way some high-res models do.

Deployment Considerations:

• No integrated IR illuminators — rely on Lightfinder 2.0 for low light and ambient sources. If your site has zero ambient light at night, plan for external IR floods or consider a different model.
• H.264 only (no H.265) — storage efficiency is okay but not cutting-edge. On a 24/7 rig with dozens of cameras, account for 30–40% higher bitrate than you'd see with H.265 cameras. NVR sizing should reflect this.
• IK10 rating is robust for exposed locations, but the dome form factor and size mean it's still a visible target. If anti-tampering is critical, pair with physical barriers or a recessed mount to discourage direct impact.

Deploy the 02616-004 on perimeter walls, parking lot poles, or entrance vestibules where you need zoom flexibility and can't afford multiple fixed-angle cameras. It's not the highest resolution, but the PTRZ, Lightfinder, and edge processing make it a practical choice for sites that want to minimize post-install reconfigurations and reduce NVR workload. Expect solid performance in dawn/dusk transitions and mixed-lighting outdoor scenes.
