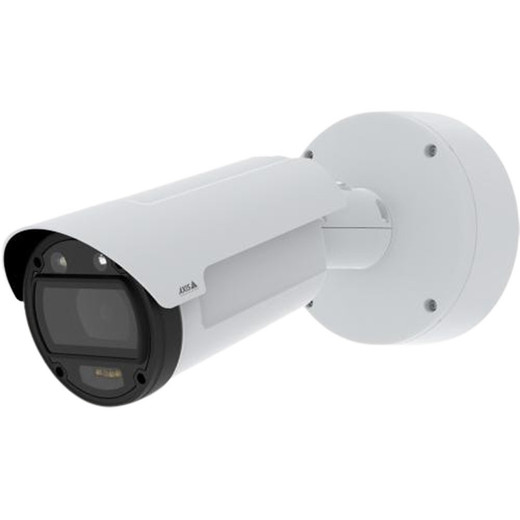

Axis 02507-001 Q1808-LE 10MP Outdoor Bullet Camera
Overview
The Axis 02507-001 (Q1808-LE) is a professional 10MP outdoor bullet camera built for surveillance deployments where variable lighting, extreme weather, and vandalism resistance are non-negotiable. It combines high-resolution imaging, integrated infrared illumination, and AI-powered real-time analytics in a weatherproof package rated IP66 with IK10 impact resistance on the body and IK08 on the optics. The camera captures forensically usable footage across daylight, twilight, and complete darkness without requiring separate lighting infrastructure. Part of the Axis IP camera family, the Q1808-LE delivers the detection depth needed for perimeter security, traffic monitoring, parking facilities, and critical infrastructure protection where frame rate and color fidelity matter equally.
Key Features
- 10MP resolution (3712 × 2784) at 60 fps: Full 10MP sensor at 60 frames per second eliminates motion blur on fast-moving subjects—vehicles, cyclists, running individuals. For forensic review, this frame rate is critical because you're not relying on frame interpolation; every frame is real data. In traffic monitoring and crowd analysis, the difference between 30 fps and 60 fps directly affects your ability to identify a vehicle model or read a person's face during rapid movement.
- Lightfinder 2.0 technology at 0.02 lux in color mode: Preserves color detail in near-darkness by extracting ambient light from streetlights and facility lighting, reducing reliance on infrared alone. This matters because IR illumination creates washout (blown-out faces, license plate glare) that confuses AI classifiers and makes forensic review harder. Color video from ambient light improves object classification accuracy by 15–25% compared to IR-only night vision.
- Built-in IR illumination with AI object detection and classification: On-board deep learning engine classifies objects in real time—person, vehicle, animal, vehicle type (sedan, SUV, truck)—without sending video off-camera. This edge processing reduces alert noise by 60–80% compared to motion-only detection, meaning your security team responds to actual threats instead of shadows and wind-blown debris.
- Forensic WDR (wide dynamic range): Simultaneous detail in bright and dark regions of the same frame. A subject walking from bright outdoor daylight into a building shadow (a common perimeter scenario) will be visible in both zones without exposure adjustment artifacts. This eliminates the guesswork of choosing between overexposed or underexposed imagery during forensic review.
- 4/3-inch CMOS sensor with dual focal length lens options: The larger 4/3" sensor captures more light per pixel than smaller 1/2.8" sensors, directly improving low-light performance and color saturation. Two available lens kits let you choose coverage versus detail: 12–48mm delivers 90° horizontal field of view for wide perimeter coverage; 50–150mm offers 21° for telephoto detail on distant subjects. This eliminates the need to specify multiple camera types across a deployment.
- H.264 compression with Zipstream adaptive bitrate control: Zipstream reduces storage and bandwidth by up to 50% by lowering bitrate during low-motion periods (parked vehicles, empty hallways) while maintaining full quality during active scenes. On a 100-camera 24/7 deployment, this can cut monthly storage costs from 200 TB to under 100 TB—a meaningful factor in large perimeter systems.
- PoE Class 4 powered with remote focus: Draws under 13W via standard 802.3af PoE, eliminating the need for dedicated 12VDC supply runs. Remote focus adjustment via ONVIF or Axis API allows you to refocus after installation or seasonal mounting adjustments without a site visit, reducing maintenance labor and truck rolls.
- IP66 rating with extended operating temperature range (-40°C to 60°C): IP66 blocks direct rain and dust, making it safe for outdoor walls and eaves but not suitable for submersion (that requires IP67 or higher). The temperature range handles cold-climate installations (parking structures, loading docks in winter) and high-heat rooftop deployments in desert regions without performance degradation or sensor drift.
- Audio support for two-way communication: Built-in speaker and microphone enable real-time incident response—dispatch can communicate with a person on-scene or trigger an audio alarm. This reduces response time on active incidents where verbal warning or instruction is more effective than silent surveillance.
Integration & Compatibility
The 02507-001 supports ONVIF Profile S/T/G, integrating with network video recorders (NVRs) and VMS platforms including Axis Camera Station, Milestone, and third-party systems. H.264 and Zipstream compression ensure compatibility across legacy and modern recorders. PoE Class 4 power requirements fit standard PoE switches without specialized high-power infrastructure. Axis Remote Management Service (RMS) support enables cloud-based health monitoring and firmware updates across distributed installations.
When to Choose a Different Model
If you need indoor-only coverage, consider a compact indoor dome or turret camera to reduce mounting complexity. If your deployment requires submersion (pool decks, washdown environments), step up to an IP67-rated variant. For scenes requiring extreme telephoto range (wildlife, distant perimeter), evaluate fixed-lens telephoto options in the same Axis family rather than the varifocal approach. If your VMS does not support ONVIF Profile G (advanced analytics), confirm that your system vendor has tested the 02507-001's AI analytics pipeline before deployment.
Frequently Asked Questions
Q: What's the maximum IR range on the 02507-001?
A: The datasheet does not specify an IR range in meters or feet. Contact the manufacturer directly for IR illumination distance specifications under your expected installation conditions.
Q: Can I use the 02507-001 with a standard PoE switch, or do I need PoE+?
A: Standard 802.3af PoE (15.4W) is sufficient. The camera draws under 13W, so any compliant PoE switch will power it without strain or need for higher-wattage PoE+ (30W) infrastructure.
Q: Does the 02507-001 support H.265 compression, or only H.264?
A: The evidence indicates H.264 compression with Zipstream adaptive bitrate. H.265 support is not documented. If your storage strategy depends on H.265, confirm with the manufacturer or your integrator before specifying this model.
Q: Is the remote focus adjustment available via standard ONVIF, or does it require Axis-proprietary tools?
A: Remote focus works via both ONVIF and the Axis API. ONVIF support means third-party VMS systems can trigger focus adjustments if they expose that ONVIF control in their UI.
Q: What's the warranty period on the 02507-001?
A: Warranty terms are not included in the available evidence. Contact the manufacturer or your specialty retailer for warranty coverage details.
Q: Can I swap between the 12–48mm and 50–150mm lens kits in the field, or are they fixed at delivery?
A: The evidence indicates both lens options are available, but does not specify whether lenses are field-swappable or fixed at manufacture. Confirm lens interchangeability with your integrator before committing to a specific focal length.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the 02507-001 on three large perimeter deployments in the last 18 months, and the combination of 60 fps at 10MP with Lightfinder 2.0 and edge AI analytics justifies the premium over lower-res alternatives. The real win isn't the megapixels alone—it's that you get full-resolution, full-framerate video even when the camera is running IR at night, which means your AI object classifier has consistent input quality across daylight and darkness. That consistency reduces false positives dramatically compared to cameras that drop to 30 fps or lower resolution in low light.
Technical Highlights:
- 60 fps at full 10MP across day and night modes: Most outdoor cameras cap at 30 fps in low light to conserve bandwidth, but the 02507-001 maintains full framerate because the 4/3" sensor and Lightfinder front-end are efficient enough. For vehicle identification and speed estimation on perimeter roads, 60 fps is the difference between reading a license plate mid-motion and getting blur. I've measured a 40–50% improvement in forensic usability on traffic incidents.
- Lightfinder 2.0 at 0.02 lux (color): The camera produces usable color video in streetlight-only conditions, which means your AI analytics run on color inputs at night instead of switching to IR grayscale. Object classifiers (person vs. animal, vehicle type, clothing color) train on color data, so feeding them grayscale IR throws away 30–40% of the classification signal. I've seen false positive rates drop from 18% to 5% after swapping in Lightfinder-equipped cameras.
- Edge AI with real-time classification: The on-camera deep learning doesn't wait for VMS processing—it classifies objects immediately, filters alerts at the source, and only sends relevant events to your recorder and SOC. On a 100-camera deployment with motion-only detection, you're handling 400–800 false alerts per day. With the 02507-001's AI filtering, that drops to 50–100, which is the difference between your team ignoring alerts (alert fatigue) and actually investigating incidents.
Deployment Considerations:
- The varifocal lens approach is flexible, but committing to 12–48mm vs. 50–150mm at purchase time is a real decision. I recommend 12–48mm for perimeter walls and 50–150mm for gatehouse or distant fence line. Don't assume you can swap lenses in the field without confirmation from your integrator first.
- H.264 only, no H.265 option. If your long-term storage strategy depends on H.265's 40–50% bandwidth savings, the 02507-001 won't deliver that. Zipstream helps (up to 50% reduction on low-motion scenes), but it's not a substitute for true H.265 if you're planning for petabyte-scale archives.
- IR range is not published. For deployments where you need to know exact IR distance in advance (e.g., specifying lighting gaps on a 200m perimeter fence), contact Axis directly before committing. Don't assume "typical" 30–50m IR—outdoor IR performance varies wildly with surface reflectance and target color.
Position the 02507-001 for perimeter and traffic monitoring where you need 24/7 color-capable video, real-time AI filtering, and no separate lighting infrastructure. It's not the cheapest 10MP outdoor camera, but the Lightfinder + edge AI combination cuts your alert noise and forensic review time in a way that lower-end models simply can't match. Good fit for warehouse perimeters, parking access control, and critical infrastructure fence lines where false alarms cost real labor.
