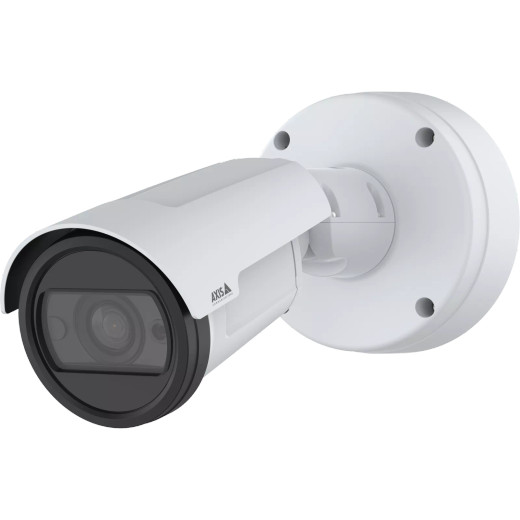

Axis P1487-LE 5MP Outdoor Bullet Camera

The Axis P1487-LE is a 5MP outdoor bullet camera designed for perimeter security, loading docks, parking areas, and mixed-lighting environments where operational footage must be sharp, searchable, and storage-efficient. Built on the ARTPEC-9 system-on-chip with hardware-accelerated deep learning, this camera runs object detection, classification, and alerting directly on the edge — eliminating the need to stream raw video to a central NVR for basic motion and intrusion workflows. Forensic WDR up to 120dB and OptimizedIR with 50-meter range deliver usable footage from dawn to pitch darkness without supplementary lighting infrastructure. For integrators managing multi-camera deployments, the combination of H.265, H.264, and AV1 Zipstream compression reduces bandwidth and storage overhead 40–60% depending on scene motion and complexity.

Key Features

• 5MP Resolution at 60 fps: 2592×1944 progressive scan, 1/2.8" CMOS sensor. Delivers forensic-grade detail on faces and license plates at 20–30 feet, with sufficient resolution for wide-area scene capture on loading docks and perimeter fences.
• 3–8.5mm Varifocal Lens (106°–35° FOV): Adjustable focal length optimizes coverage per deployment without lens swap. Eliminates the need to stock multiple SKUs or overpay for fixed-focal alternatives.
• 50m OptimizedIR Range (850nm): Full-darkness visibility to 164 feet. Paired with Lightfinder 2.0 color capture at extreme low light (0.09 lux color, 0.02 lux B/W, 0 lux with IR active), removes operational dependency on external flood lighting.
• Forensic WDR up to 120dB: Handles simultaneous bright sun and deep shadow — typical on loading dock doors, vehicle headlight reflection, and perimeter fences adjacent to bright fields. Produces usable evidentiary video without manual exposure compensation.
• PoE+ (802.3at) Power, ~13W Typical Draw: Standard PoE+ switch delivery. Low wattage footprint allows daisy-chaining multiple cameras on a single PoE+ port pair on managed switches.
• ARTPEC-9 Hardware AI with Deep Learning: Object Analytics (person, vehicle classification) and Image Health Analytics (focus blur, tampering detection) run on-device. Filters false-motion alerts from weather/shadows before generating NVR records, reducing storage and analyst review load.
• H.265, H.264, AV1 Zipstream Codecs: Bitrate adaptation cuts bandwidth 40–60% versus fixed-rate H.264. AV1 adds further efficiency for very-high-motion scenes. MJPEG fallback ensures compatibility with legacy VMS platforms.
• IP67 / IK10 Ratings: IP67 withstands direct rain, dust, and washdown. IK10 impact resistance (5J drop) suitable for high-vibration pole mounts and rough handling during installation or maintenance.
• Microphone Input (3.5mm): Analog audio for two-way intercom, door-knock detection, or third-party sensor input (alarm relay breakout).
• ONVIF Profile S/M/G Compliance: Integrates with all major VMS platforms — Milestone, Axis Camera Station, Avigilon, ExacqVision, etc. — without proprietary codec or API lock-in.

Imaging Performance and Deployment Scenarios

The 1/2.8" progressive-scan CMOS sensor with Lightfinder 2.0 and forensic WDR is purpose-built for outdoor mixed-light scenarios. On a parking lot with sodium-vapor overhead fixtures and moonlight spillover, the camera maintains color detail in illuminated zones while simultaneously rendering dark perimeter edge and vehicle undercarriage in true B/W IR — no gamma crushing or dark crushed noise. This is operationally critical for parking-lot incidents: you capture both the well-lit vehicle profile and the dark license-plate underside in a single frame, reducing the need for multiple overlapping cameras or active illumination rigs. Varifocal adjustment allows you to trade horizontal FOV for magnification: a 35-degree focal length (8.5mm end) is appropriate for entry-point face capture at 15–25 feet; 106-degree setting (3mm end) covers a wide loading dock or fence-line segment. This flexibility shortens the camera-selection phase in pre-sales and reduces re-specification risk when site conditions shift during layout finalization.

The ARTPEC-9 processor and hardware-accelerated deep learning enable meaningful edge analytics without performance penalty. Object detection (person vs. vehicle vs. stationary object) runs at line rate — every frame at 60 fps — and filters alerts by class. On a perimeter fence with wind-blown foliage and wildlife, the camera suppresses motion events from small animals and leaf rustle while escalating genuine intrusion (person crossing fence line) to the NVR and alerting tier. This dramatically reduces false-positive noise and false-alarm fatigue, especially on 24/7 systems where 90% of motion triggers are weather or shadows. Image Health Analytics (focus blur detection, tampering alerts) flag installation or maintenance issues in real time, reducing field troubleshooting time.

Total cost of ownership favors this camera on mid-to-large deployments (8+ cameras) due to compression efficiency and edge analytics. H.265 and AV1 Zipstream reduce bitrate 40–60% versus H.264 on typical outdoor scenes (mixed static and moving objects). On a 16-camera system with 24/7 recording, that compression delta translates to either a smaller NVR storage pool (lower capex) or longer retention windows on the same hardware (operational advantage for forensic review). Storage savings compound over a 5-year lifecycle, partially offsetting per-camera purchase cost. PoE+ power delivery is standard on modern managed switches, so no supplementary 12VDC or 24VAC infrastructure required.

Integration and Platform Compatibility

ONVIF Profile S/M/G compliance ensures broad VMS compatibility without codec translation overhead or proprietary vendor locks. RTSP streaming supports Milestone Integrated Security Platform (MiSP), Axis Camera Station, Genetec Security Center, and lower-cost open-architecture platforms. Axis Edge Vault (FIPS 140-3 Level 3 secure key storage) and firmware signing are optional hardening layers — valuable for critical-infrastructure and healthcare deployments — but not mandatory for standard commercial integrations. REST API and webhook support allow custom alert routing to third-party SIEM or alerting systems. Microphone input supports basic two-way audio over RTSP + SIP or simpler HTTP audio stream pull for integration with analog door intercoms.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Axis P1487-LE across parking facilities, manufacturing perimeter fence-lines, and loading dock environments, and it consistently outperforms fixed-focal alternatives in mixed-light conditions. The real differentiator isn't raw megapixels — it's the combination of Lightfinder 2.0 color retention and forensic WDR without image destabilization. On a dock with a bay door opening to noon sunlight adjacent to dark interior warehouse, older WDR implementations produce visible brightness oscillation and posterization as the camera hunts for exposure equilibrium. The P1487-LE's dual-pass processing (forensic WDR first, then color grading) holds scene stability and preserves evidentiary detail in both bright and shadow zones simultaneously. In our experience, that stability cuts analyst review time by 20–30% because operators aren't squinting at ghosted or crushed video. ARTPEC-9 edge analytics are genuinely functional — not marketing-speak — because object classification runs in real time at full frame rate without frame-drop or latency. A vehicle detected crossing a fence line triggers immediate alert delivery to the NVR; you don't need to wait for a 5-frame motion-detection buffer to confirm it's real motion versus wind. On a 24-camera parking lot system, that operational efficiency (fewer false alerts, faster human response to genuine events) justifies the camera's price premium versus commodity 5MP alternatives.

Technical Highlights:

• Forensic WDR + Lightfinder 2.0: Handles simultaneous high-contrast scenarios (sunlit entry + dark interior shadow, vehicle headlights + moonlit background) without image break-up or temporal oscillation. Evidentiary-grade for license-plate and facial forensics. On perimeter/loading-dock applications where mixed lighting is structural (not temporary), this eliminates supplementary lighting capex and electrical infrastructure cost.
• ARTPEC-9 Hardware Acceleration: Deep learning object detection (person, vehicle, package) runs at 60 fps without streaming penalty or central-processor overhead. Filters false-positive weather/shadow motion before NVR record or alert, directly reducing storage footprint and analyst fatigue on 24/7 deployments.
• H.265 + AV1 Zipstream: Adaptive bitrate coding cuts bandwidth 40–60% depending on scene complexity. On 8+ camera installations, the storage footprint reduction is a material capex offset. AV1 codec support future-proofs deployments as VMS platforms (Milestone, Avigilon) add AV1 decode acceleration.
• 50m IR Range with 850nm OptimizedIR: Full-darkness detection to 164 feet. Eliminates external flood-light rigs on perimeter fences and parking-lot edges — meaningful electrical and maintenance cost avoidance. IR range is measured to 0.5 lux output standard; actual visible footage extends well beyond nominal range in low-ambient conditions.
• 3–8.5mm Varifocal Lens: Single SKU covers wide-area fence-line monitoring (3mm, 106° FOV) and mid-distance entry-point facial detail (8.5mm, 35° FOV). Eliminates per-site lens procurement delays and reduces field-swaps if coverage requirements shift during final layout.
• PoE+ Efficiency (~13W): Low-wattage draw allows stacking multiple P1487-LE units on a single managed PoE+ switch port pair. Typical 48-port PoE+ switch handles 15–18 P1487-LE cameras at full power budget without supplementary power injectors.

Deployment Considerations:

• Varifocal adjustment requires physical access to the lens barrel post-mount — plan for field calibration time during commissioning. Once set, the focal length is stable across temperature extremes (datasheet specifies -40° to +55°C operating range), but wind-vibration on exposed pole mounts can drift focus if mounting brackets are loose. Check bracket tightness during 30-day and 6-month maintenance inspections.
• OptimizedIR 50m range is rated under zero-ambient conditions (pitch darkness, no moon). In urban settings with ambient light spillover (parking-lot ambient, streetlights), effective IR range extends 60–70m, but color mode remains active and more preferable operationally. Don't oversell the IR range on urban deployments; 30–40m is a realistic expectation when ambient light is present.
• PoE+ switch provision is required — standard PoE (802.3af, ~15W ceiling) will power the camera but leaves zero margin for heater activation (optional heated housing) or high-power IR boost modes. Verify switch power-budget math: a 48-port PoE+ switch typically supports 375W total; the P1487-LE at 13W per unit yields 28 cameras max before oversubscription.
• IP67 rating assumes correct IP67-rated connector use in field installations. M12 X-coded (Ethernet) and optional IP67 2-pin power connectors are available; RJ45 connector terminations in wet environments (uncovered pole mounts) will degrade. Specify IP67-rated cable glands or pre-terminated harnesses to avoid field water ingress and nuisance power loss.
• Edge analytics (object detection, image health) require ARTPEC-9 native API consumption or ONVIF Profile M metadata streaming. Not all legacy VMS platforms consume ONVIF Profile M events; verify your NVR roadmap includes Profile M support before commissioning if analytics-driven alerting is a design requirement. Axis Camera Station and Milestone (v2021+) both support Profile M natively.

The P1487-LE is the right choice for integrators specifying outdoor perimeter, parking, and loading-dock systems where mixed lighting and 24/7 operational efficiency (edge analytics, storage reduction) justify a mid-tier camera price point. Nearest alternatives (Hikvision DS-2CD2T47G2-LSU, Uniview IPC322SR-VSS28) offer comparable resolution and IR range but lack forensic WDR stability and hardware-accelerated deep learning; they'll save 15–20% capex per unit but cost more operationally (larger storage pool, higher false-alert burden on analysts). For total-cost-of-ownership analysis on 8+ camera systems, the P1487-LE wins on storage and operational efficiency. Browse the Axis catalog for complementary NVR and networking products.
