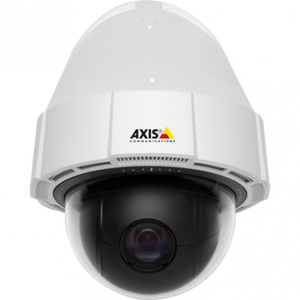

Axis 0588-001 Outdoor PTZ Network Camera
Overview
The Axis P5414-E is a professional-grade outdoor PTZ camera built for perimeter surveillance, parking structures, and wide-area monitoring where you need to cover large zones and zoom into detail without committing a fixed lens to a single field of view. Model 0588-001 (often searched as 0588 001) ships in a white outdoor housing designed for permanent installation on poles, walls, and parapet mounts. If your project involves a guard station dispatching camera control, or automated presets tracking vehicle lanes and entry points, this is a purpose-built unit for that workflow — not a repurposed indoor dome pushed outdoors.
The 18x optical zoom is the defining capability here. At 18x, you can frame a license plate from a distance that a fixed lens cannot reach, then pan to a second zone in seconds — without swapping hardware or adding camera count. That matters in environments where conduit runs, network ports, and licensing seats all cost money. One PTZ covering three patrol zones is a real installation argument, not a marketing claim. Pair this with a PTZ camera infrastructure plan and you reduce your total camera count while keeping coverage density high.
Key Features
- 18x Optical Zoom: True optical zoom (not digital crop) maintains image integrity at full magnification. This is the difference between a usable license plate read at 80 feet and a pixelated smear — optical zoom keeps the sensor's full resolution across the zoom range, where digital zoom just enlarges existing pixels.
- Day/Night Operation: Mechanical IR-cut filter switches out in low light so the sensor can use available infrared illumination. This is a hardware switch, not a software approximation — color accuracy in daylight, usable monochrome sensitivity after dark without a separate IR projector investment.
- SD Card Local Storage: On-board SD card storage provides edge buffering when the network drops or bandwidth is constrained. In distributed deployments where WAN links are unreliable, local recording keeps footage intact even during outages — footage syncs back to the NVR when connectivity restores, depending on VMS configuration.
- 4 Configurable I/O Ports: Four alarm inputs/outputs let you wire this camera directly into door contacts, motion triggers, or external lighting relays. Instead of routing every alarm through middleware, the camera itself can trigger a siren or strobelight on a positive detection — useful in unmanned perimeter applications where response latency matters.
- Audio Support: Two-way audio capability (microphone input and speaker output) supports verbal challenge scenarios at guard checkpoints or gate intercom positions — the camera doubles as a communication point without a separate intercom device on the pole.
- PoE Connectivity: Standard Ethernet with PoE support simplifies cable runs to a single Cat5e/Cat6 — power and data on one cable means no separate conduit for 24V AC runs in most installations. Note that the P5414-E also supports 24V DC power for installations where a hardwired power supply is preferred over PoE.
- PTZ Form Factor: The dome-style PTZ housing provides 360-degree continuous pan with full tilt range, standard for perimeter patrol. The white finish suits commercial building exteriors and reduces heat absorption compared to black housings in direct sunlight environments.
Integration & Compatibility
As part of the broader Axis camera lineup, the P5414-E integrates with AXIS Camera Station and is compatible with ONVIF-conformant VMS platforms. The 4 configurable I/O ports extend integration into access control and alarm systems directly at the edge. For deployments requiring NVR-based recording, this camera's SD card storage also supports edge-only or hybrid recording architectures. Review your NVR channel capacity and PoE switch budget before finalizing placement — PTZ cameras draw more power than fixed units and may require PoE+ ports depending on heater/blower options. See our PoE switch selection for compatible infrastructure.
Frequently Asked Questions
Q: What power options does the Axis P5414-E (0588-001) support?
A: The P5414-E supports both 24V DC and PoE (Power over Ethernet), giving installers flexibility to use existing low-voltage DC infrastructure or a single Cat5e/Cat6 run from a PoE switch.
Q: Does the 0588-001 include local storage?
A: Yes, the P5414-E supports on-board SD card storage, enabling edge recording and local buffering when network connectivity is interrupted.
Q: How many alarm I/O ports does the P5414-E have?
A: The camera provides 4 configurable alarm inputs/outputs, allowing direct integration with door contacts, motion sensors, lighting relays, or external alarm devices.
Q: Is the Axis P5414-E suitable for outdoor installations?
A: Yes, the P5414-E is an outdoor-rated PTZ designed for permanent exterior installation. Confirm the specific IP/NEMA rating against your site's weather exposure requirements before specifying.
Q: Does the 0588-001 support audio?
A: Yes, the P5414-E includes audio support for two-way communication, enabling verbal challenge capability at gate, parking, or perimeter positions without a separate intercom device.
The feature I keep coming back to on the 0588-001 is those 4 configurable I/O ports. Most integrators focus on the 18x zoom — which is legitimately useful — but the I/O capability is what makes the P5414-E a system node rather than just a camera. Wire it into your gate controller or perimeter fence sensor and the camera can trigger external devices autonomously, without routing every event through a VMS action rule or separate controller panel.
Technical Highlights:
- 18x Optical Zoom: True optical magnification at 18x preserves full sensor resolution across the zoom range — no pixel interpolation at max zoom, which matters when you need a readable plate number or a face from 100+ feet.
- Day/Night with Mechanical IR-Cut Filter: The hardware filter switch (not a software mode) ensures accurate color in daylight and maximizes photon capture at night — no color cast artifacts that software-only solutions introduce.
- 4 Configurable I/Os: Direct wiring to external devices cuts latency on alarm-triggered actions and removes dependency on VMS middleware for real-time physical responses like gate locks or strobe activation.
Deployment Considerations:
- Confirm your PoE switch port budget before installation — PTZ cameras with heater/blower assemblies often exceed standard 802.3af 15.4W limits and require 802.3at (PoE+) ports. Verify the P5414-E's exact draw against your switch's per-port budget.
- SD card storage is a buffer, not a replacement for centralized NVR recording — plan your VMS retention policy and SD capacity together, especially in high-motion outdoor scenes where bitrate spikes can fill cards faster than expected.
The P5414-E 0588-001 is the right specification for manned or automated perimeter patrol at mid-sized commercial properties — parking decks, distribution yards, campus entry points — where a single controllable camera needs to cover multiple named zones and respond directly to alarm inputs without adding controller hardware.
