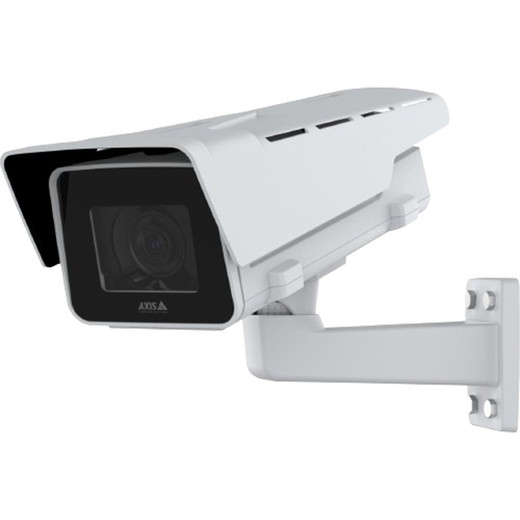

Axis 02734-001 P1385-E 2MP Outdoor AI Box Camera

The Axis 02734-001 (P1385-E) is a professional 2MP outdoor box camera purpose-built for surveillance applications where intelligent analytics and low-light performance matter. It combines edge-based AI, motorized varifocal optics, and rugged IP66/IK10 construction—meaning you avoid false alarms through smarter detection, cover multiple angles with a single lens, and don't worry about weather or vandalism degrading the image feed.

Key Features

• 2MP Full HD resolution (1920×1080): Delivers sufficient detail for facial recognition and license plate capture at distances typical of perimeter and parking lot deployments. Not a wide-area overview camera—position it where you need forensic clarity, not coverage of an entire parking structure.
• Lightfinder 2.0 technology: Produces color video down to 0.05 lux—equivalent to deep dusk or a parking lot with minimal lighting. Reduces your dependency on IR illumination or installing additional outdoor lighting infrastructure, lowering capex and electrical load.
• Motorized varifocal lens (2.8–13mm, 121° to 26° horizontal FOV): Adjust field of view and focus after installation via the management interface. Eliminates the need to mount two or three fixed cameras to cover the same zone—a real cost and cable-routing win in dense deployments.
• Forensic WDR (Wide Dynamic Range): Balances exposure in high-contrast scenes—facility entrances with bright sunlight behind subjects, loading docks, or reflective surfaces. Produces usable video in both the shadow and lit areas of the same frame, reducing the need for multiple cameras or repositioning.
• H.264 + Zipstream compression: Zipstream intelligently reduces bitrate by up to 50% without sacrificing detail in regions of interest. On 24/7 recording across multiple cameras, this translates to smaller storage footprints and lower network bandwidth overhead—meaningful when you're operating dozens of endpoints.
• PoE Class 4 (average 3.6W, peak 25.5W): Runs on standard gigabit PoE injectors or switches without special high-power supplies. No separate DC power runs to simplify installation and reduce cabinet clutter. Peak draw of 25.5W means you can run 10+ cameras per standard PoE switch port budget if managed carefully.
• IP66 weatherproof + IK10 vandal resistance: IP66 means rain, dust, and hose-down jets won't cause leaks or condensation inside the housing. IK10 (20J impact rating) withstands deliberate strikes and thrown objects—relevant for high-theft or hostile environments. Not rated for full submersion (that requires IP67); position it under eaves or in semi-protected areas.
• AI-powered edge analytics: Runs object detection and classification on the camera itself—flags people, vehicles, or specific threat behaviors without sending raw video to a backend server. Reduces false motion alerts from rain, shadows, or moving foliage, saving security staff alert fatigue and response overhead.
• Two-way audio support: Embedded microphone and speaker enable remote announcements or warning broadcasts—useful for unauthorized-area warnings or two-way verification without a separate intercom system.
• Operating temperature –40° to +60°C: Handles arctic cold and desert heat without performance degradation. A practical spec if you're deploying across multiple climates or in unheated/uncooled outdoor cabinets.

Integration & Compatibility

The Axis 02734-001 supports ONVIF Profile S/T/G, making it compatible with most mainstream video management systems including Milestone XProtect, Genetec, and others. H.264 output works with any NVR or recording appliance that supports the codec. Signed firmware and secure boot harden the camera against tampering. PoE integration is straightforward—confirm your PoE switch has sufficient available power budget (25.5W peak per camera) and plan accordingly if you're daisy-chaining multiple high-demand endpoints.

When to Choose a Different Model

If you need higher resolution for wide-area overviews or extreme forensic zoom capability, consider a higher megapixel variant in the Axis outdoor IP camera range—the P1388-E (5MP) or P1389 (8MP) series deliver more pixels for the same form factor. If you require true submersion protection or washdown-hose tolerance beyond IP66, step up to IP67-rated models. If low-light performance is critical and you cannot use Lightfinder, clarify your illumination standards with your integrator—some outdoor sites can achieve acceptable performance with optimized IR rather than color at extreme lux levels.

Deployment Considerations

Box cameras require weatherproof or semi-protected mounting—wall, soffit, or pole bracket under cover. Unlike dome cameras, they don't hide the lens direction, making their coverage obvious to site visitors and potential intruders. This transparency can be an asset (visible deterrent) or liability (target awareness) depending on site policy. Plan lens focus and zoom settings in a staging environment if possible—remote focus simplifies on-site commissioning but doesn't eliminate the need for clear cable runs and stable mounting brackets. Confirm your NVR or VMS supports Zipstream or equivalent bitrate optimization—older systems may not recognize the variable-bitrate stream, leading to unexpected storage or network surprises.

Frequently Asked Questions

Q: Can the 02734-001 operate indoors?

A: Yes, it can function indoors in controlled climates, but the IP66/IK10 outdoor rating and sealed housing make it overkill for typical office or hallway deployment. The 2MP resolution and varifocal lens are better suited to perimeter or distance-monitoring tasks where you need flexibility and low-light color capture.

Q: What power supply do I need?

A: None. The camera draws up to 25.5W peak from PoE Class 4 (IEEE 802.3at). Verify your PoE switch or injector has sufficient available budget—if you're running 8 of these cameras at full power, you'll need a 200W+ PoE supply.

Q: Does the 02734-001 work with Milestone or Genetec?

A: Yes. ONVIF Profile S/T/G support means it integrates with any compliant VMS. Confirm your Milestone or Genetec version is current and supports H.264 Zipstream bitrate optimization for best storage efficiency.

Q: How far can I run the Ethernet cable?

A: Standard Cat5e or Cat6 supports PoE over 100 meters (328 feet). Beyond that, use Cat6a or run a secondary power cable alongside PoE for redundancy, or deploy a PoE extender.

Q: Is the lens removable or upgradeable?

A: No. The varifocal lens is factory-integrated and sealed. Motorized zoom and focus are your only post-install adjustments. Choose the lens type at purchase, not after deployment.

Q: What's the warranty period?

A: Refer to your purchase agreement or distributor terms. Axis products typically carry a 3-year limited warranty from the date of purchase; confirm with your authorized supplier.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02734-001 delivers a practical combination of low-light color performance and field-of-view flexibility that often eliminates the need for multiple cameras in outdoor perimeter or parking deployment scenarios. Lightfinder 2.0 at 0.05 lux is the real differentiator—most box cameras struggle to produce color imagery below 0.3 lux, forcing you to either accept black-and-white night vision or install supplemental lighting. The 02734-001's ability to maintain color at deep dusk or under minimal ambient illumination sidesteps that infrastructure cost entirely.

Technical Highlights:

• Motorized varifocal 2.8–13mm lens with remote adjustment: Covers 121° wide-angle down to 26° medium-tele—single camera can handle parking lot overview plus distant gate verification. Saves conduit runs, switch ports, and RFP complexity versus deploying three fixed-lens cameras.
• H.264 Zipstream compression with up to 50% bitrate reduction: Real-world impact: a 24/7 4-camera deployment recording at 1080p/30fps typically consumes 300–400 GB/day without Zipstream. Enabled, you're looking at 150–200 GB/day—meaningful when your NVR is a 16TB appliance and retention policy is 60 days.
• Forensic WDR ensuring usable shadow and highlight detail: Backlighting at facility entrances—strong sunlight behind an arriving vehicle—kills footage on cheaper cameras. Forensic WDR handles this, producing readable license plates even when the sky is blown white in the same frame.

Deployment Considerations:

• Peak PoE draw of 25.5W is manageable on modern switches, but careless overbooking is a common failure mode. If you're running 12+ cameras on a 60W PoE switch, you'll trigger thermal shutdowns mid-afternoon. Plan per-port budget explicitly.
• Box form factor requires weatherproof mounting—don't expect to wire-tie it to a fence post. Budget for stainless steel L-bracket, conduit entry glands, and gasketted wire ports to maintain IP66 integrity.
• The sealed varifocal lens design means focus and zoom are permanent post-commissioning—no field swaps to different focal lengths if site requirements shift. Scope your coverage zones correctly before purchase.

The 02734-001 is a solid pick for sites where low-light color detail and flexible coverage outweigh ultra-high resolution. Perimeter gates, parking lot entries, and loading dock scenarios where you're catching vehicle and pedestrian identity are its sweet spot—not wide-area campus overviews or traffic counting where you'd want 5MP or higher.

Key Specifications:
Field of View: 121 - 26 °
Color: White
