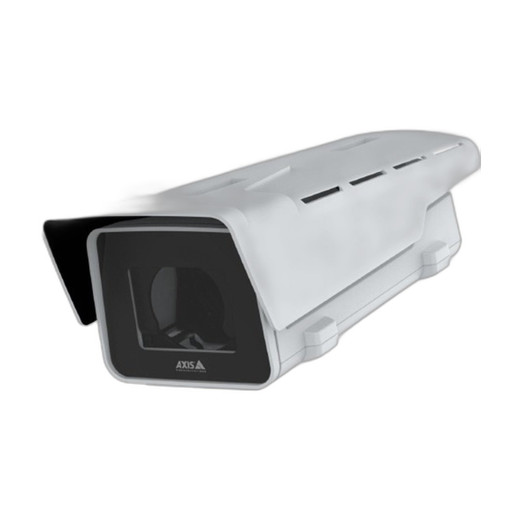

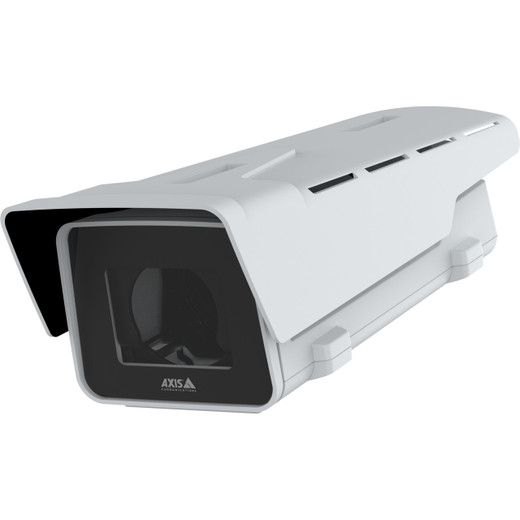

Axis 02900-001 P1385-BE 2MP Outdoor AI Box Camera
The Axis 02900-001 is a professional outdoor box camera built to handle perimeter security, parking facilities, and infrastructure monitoring where rugged construction and intelligent detection matter. This is a camera you mount once and trust in rain, dust, temperature swings from -40°C to +60°C, and direct physical impact — then let it work without constant maintenance or thermal artifacts from IR illuminators.
Overview
The P1385-BE combines 2MP resolution (1920×1080) with AI-powered analytics, advanced low-light sensitivity, and a vandal-resistant housing. Unlike traditional surveillance cameras that rely on infrared floods, this model deploys Lightfinder 2.0 technology — a sensor-level optimization that captures usable detail in near-total darkness without thermal blooming or maintenance-heavy IR emitters. The 1/2.8" CMOS sensor and Forensic WDR (wide dynamic range) engine handle high-contrast scenes: think bright skies with subjects in shadow, or vehicle headlights against dark backgrounds. The result is forensically useful image detail across a wider range of lighting conditions than either technology alone.
It integrates into existing outdoor IP camera deployments via standard Ethernet — PoE Class 4 power delivery means no separate power runs, just one network cable. Zipstream compression technology intelligently preserves detail in regions of interest (moving objects, faces, license plates) while compressing static backgrounds, cutting storage and bandwidth demand by up to 50% without sacrificing forensic quality.
Key Features
- 2MP sensor with 1920×1080 resolution: Sufficient for wide-area monitoring and object identification at moderate distances; expect clear facial or license-plate detail at 10–15 meters under good lighting.
- Lightfinder 2.0 night vision: No built-in IR means no heat signature, no maintenance, and no IR reflection artifacts on windows or wet surfaces — a genuine advantage in covert deployments or energy-conscious sites.
- Forensic WDR: Balances exposure across high-contrast scenes so you capture usable detail of subjects against bright backgrounds or in mixed lighting — critical for incident reconstruction and evidence quality.
- AI analytics: Detects and classifies objects (people, vehicles) on-camera, reducing false alerts and enabling intelligent motion rules; edge processing means no dependency on external analytics servers for basic detection tasks.
- Zipstream compression: H.264 video with intelligent bandwidth optimization; real-world deployments report 40–50% reduction in storage footprint over standard H.264 at equivalent quality.
- PoE Class 4 (10–28V DC): Draws 3.6W average, 25.5W maximum — well within standard PoE+ budgets and manageable on any modern network switch; no external power supply needed.
- IP66/IK10 rating: IP66 means full dust protection and water jets from any direction won't cause failure; IK10 (11 joules) withstands deliberate impact — relevant for accessible outdoor locations.
- CS-mount lens design: Allows field selection of focal length and iris — you're not locked into a fixed lens. Pair with 2.8mm, 4mm, 6mm, or longer lenses depending on coverage needs.
- 30fps standard (up to 50/60fps capable): 30fps is standard for surveillance; higher frame rates available if you're recording fast-moving traffic or need smoother motion detail.
- Two-way audio: Built-in microphone and speaker support — useful for intercom functions at entry points or as a deterrent at perimeter fences.
- Operating temperature -40°C to +60°C: Handles extreme cold (Canadian winters) and heat (rooftop installations in summer) without seasonal recalibration or lens fogging.
- Secure Boot and Signed OS: Firmware integrity checks and secure boot prevent unauthorized code injection — baseline hardening for surveillance networks in regulated environments.
Integration & Compatibility
This camera speaks ONVIF and integrates with network video recorders and VMS platforms that support H.264 and ONVIF Profile S or T. Axis Camera Station and third-party platforms (Milestone, Genetec, etc.) recognize it via standard discovery protocols. If you're planning multiple units, consult a PoE power budget guide to ensure your switch has sufficient Class 4 capacity; a 48-port PoE+ switch typically handles 24–32 of these cameras comfortably.
When to Choose a Different Model
If you need higher resolution (5MP, 8MP) or 40x+ optical zoom, look to higher-megapixel variants or PTZ models in the Axis surveillance line. If the site has no network access yet or requires analog fallback, a hybrid approach with a traditional DVR may suit better. If thermal imaging is a hard requirement, specify a thermal/radiometric camera instead. For indoor-only applications, consider compact dome or turret forms instead.
Frequently Asked Questions
Q: Does the Axis 02900-001 require an external IR illuminator or can it work in total darkness?
A: No external IR required. Lightfinder 2.0 is engineered to capture usable video in near-total darkness (down to 0.3 lux) without built-in IR emitters. True 0-lux performance requires some ambient light; in pitch darkness, consider a separate IR array if your site has zero ambient illumination.
Q: What is the maximum distance at which the P1385-BE can identify a face or license plate?
A: At 2MP with a standard 4mm lens, expect clear facial identification at 8–12 meters and legible license plates at 10–15 meters under good daylight. Exact distance depends on lens choice, lighting, and contrast. For longer-range identification, upgrade to a 5MP or higher model or use a telephoto lens.
Q: How much storage does Zipstream save compared to standard H.264?
A: Zipstream typically reduces bandwidth and storage footprint by 40–50% on scene-dependent basis. High-motion scenes (busy parking lots, traffic) save less; static scenes (fence lines, empty lobbies) save more. Your actual savings depend on scene complexity and analytics configuration.
Q: Can the 02900-001 be wall-mounted or must it be ceiling-mounted?
A: The box form factor supports both wall and ceiling mounting. Standard mounting brackets accommodate either orientation. Consult the installation guide for specific bracket part numbers and load ratings.
Q: Is the Axis P1385-BE NDAA Section 889 compliant?
A: Axis is a Swedish manufacturer; verify NDAA compliance status with your procurement or security team. If NDAA restriction or TAA status is a hard requirement, confirm with your specialty retailer before purchase.
Q: What compression codecs does the 02900-001 support?
A: Primary codec is H.264 with Zipstream optimization. H.265 support and additional codecs vary by firmware revision; consult the product datasheet or contact Axis technical support for codec options on your specific firmware release.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02900-001 P1385-BE is a solid choice for outdoor surveillance where low-light performance and operational simplicity matter more than raw megapixel count. Lightfinder 2.0 eliminates the maintenance burden and thermal artifacts that plague traditional IR cameras. The omission of built-in IR means no bulky lens covers, no seasonal cleaning of emitters, and no thermal signature bleeding into adjacent frames — a real advantage in forensic reconstruction and sustained covert monitoring.
Technical Highlights:
- Forensic WDR + Lightfinder 2.0 pairing: Together they handle the two hardest scenarios: backlit subjects (WDR) and near-darkness (Lightfinder). Most cameras excel at one or the other; this model stacks both, reducing the chance of unusable footage.
- Zipstream + 3.6W average draw: Intelligent compression cuts storage by 40–50% without external software; 3.6W average means even a small 24-port switch with six cameras won't trigger thermal throttling or cost overruns on the power bill.
- IP66/IK10 durability: Direct rain, sand, dust, and impacts all rated. The compact box form factor fits tight spaces (roof edges, corner fascias) where larger housings won't work, and the CS-mount lens lets you pick the focal length after installation.
Deployment Considerations:
- 2MP resolution is adequate for wide perimeter coverage and object identification but falls short for facial recognition at distances beyond 12–15 meters. If identification at range is critical, step up to 5MP or add a second camera with a telephoto lens.
- Zipstream's efficiency depends on proper analytics tuning. Overly aggressive region-of-interest settings can compress forensic detail out of frames where you later need it. Calibrate analytics rules during commissioning and test recorded footage quality before going live.
- CS-mount flexibility is powerful but requires field decision-making on lens selection. Without a clear coverage plan, you risk installing the wrong focal length and having to swap lenses on-site. Pre-plan the mounting height, horizontal/vertical FOV, and lens before unpacking the camera.
Deploy the 02900-001 at perimeter fences, parking lot entries, loading docks, and traffic corridors where 2MP wide-area detection is sufficient and low-light sensitivity without IR overhead is valued. Pair it with a network video recorder supporting H.264 and ONVIF to unlock full Zipstream efficiency and edge analytics.
