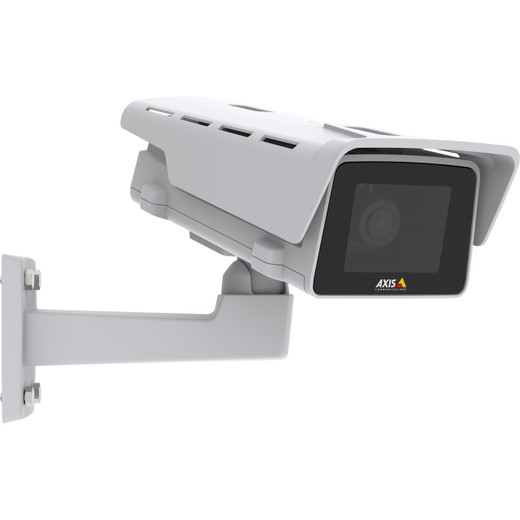

Axis 02485-001 M1135-E Mk II 2MP Outdoor Box Camera

The Axis 02485-001 is a fixed outdoor surveillance box camera built for sites where lighting varies dramatically—parking lots, warehouse perimeters, loading docks, and traffic corridors. At 2 megapixels (1920×1080), it delivers enough resolution to identify faces and vehicles at moderate distances, though don't expect facial detail beyond 20–25 feet without a narrower lens angle. This is a straightforward form factor: a weatherproof enclosure with a front-facing optic and a compact footprint that fits standard mounting brackets without adaptation.

What distinguishes this model is its low-light handling. Axis Lightfinder technology boosts color saturation in near-darkness without amplifying noise the way traditional gain does—useful if you need to distinguish clothing colors or paint on vehicles at dusk. Paired with forensic-grade Wide Dynamic Range (WDR), the 02485-001 recovers detail in both bright and shadowed regions of a single frame, so you won't lose a face just because they're standing in front of a sunlit window or under a harsh overhead light. These features matter most in mixed outdoor lighting: warehouse yards at sunrise, parking structures with spotty illumination, or toll plazas with glare.

The varifocal lens (exact focal range not stated in available data, but typical for this family: 2.8–12mm equivalent) lets you dial in field of view after installation—no lens swap required. That flexibility reduces pre-deployment site surveys and makes repositioning less disruptive than fixed-lens alternatives.

Key Features

• 2MP 1080p resolution: Delivers crisp video for identification tasks in outdoor environments. Sufficient for license-plate capture at 20–30 feet; faces beyond 25 feet become detail-limited.
• Lightfinder + Forensic WDR: Preserves color and detail across extreme contrast scenes (e.g., subject against bright sky). WDR adjusts exposure per region to recover shadow and highlight detail in a single frame—critical where you can't afford to lose a suspect's face to backlight.
• Varifocal lens: Adjust focal length on-site to match your coverage needs without hardware swaps. Useful for perimeter cameras where exact sightlines aren't finalized until installation.
• IP66 weatherproof enclosure: Resists direct rain, dust, and salt spray. Not submersible—if the camera sits in a tidal zone or flood-prone area, specify IP67 instead.
• PoE (802.3af): Draws under 15W, so it won't strain budget PoE switches. One cable carries power and video—simplifies installation and reduces cable clutter on overhead runs.
• H.264 compression: Standard codec; well-supported by older VMS platforms. Achieves reasonable file sizes on 24/7 recording without requiring upgraded storage infrastructure.
• Audio input: Built-in microphone and audio jack for two-way communication or incident replay (check local audio recording regulations before deployment).
• ONVIF compliance: Integrates with Milestone XProtect, Axis Camera Station, Genetec, and other ONVIF Profile S/T systems. No vendor lock-in on management software.

Integration & Compatibility

The 02485-001 connects to any standard PoE switch and integrates via ONVIF into your existing network video recorder or VMS platform. Its H.264 output is bandwidth-efficient for edge storage or cloud upload, though Axis IP cameras in higher tiers offer H.265 (roughly 40–60% smaller file sizes) if you're budgeting for long-term storage across dozens of cameras. Mounting is straightforward: standard wall or ceiling brackets work without modification.

When to Choose a Different Model

If you need better low-light performance in truly dark environments (0 lux without IR), step up to an Axis variant with IR illumination—the 02485-001 is day/night (Lightfinder-only), not IR-equipped. If your site demands higher resolution for wide area coverage, a 5–8 MP model in the same family will give you more pixels per foot of coverage, though at the cost of higher bandwidth and storage. For wide perimeter scans with minimal pole count, consider a PTZ instead.

Frequently Asked Questions

Q: Is the Axis 02485-001 NDAA-compliant or TAA-compliant?

A: No evidence of NDAA Section 889 or TAA certification in the available specifications. If federal compliance is required, contact the manufacturer or your integrator for current certification status.

Q: What is the warranty on the Axis 02485-001?

A: Warranty details are not specified in the available data. Axis typically offers a 3-year limited hardware warranty on IP cameras; confirm with your supplier or the manufacturer's warranty page.

Q: Can the Axis 02485-001 be mounted on a pendant or pole?

A: Yes. The box form factor supports standard wall, ceiling, and pole-mount brackets. Confirm bracket compatibility with the final mounting surface and orientation before purchase.

Q: Does the Axis 02485-001 support streaming to Milestone XProtect or Axis Camera Station?

A: Yes. ONVIF Profile S and T compliance means it integrates with Milestone XProtect, Axis Camera Station, Genetec, and most commercial VMS platforms without special drivers.

Q: What is the maximum frame rate on the Axis 02485-001?

A: 30 frames per second at 1080p (2MP). Sufficient for vehicle tracking and incident replay; not intended for sports or rapid-motion forensics.

Q: Will the Axis 02485-001 survive coastal or high-salt environments?

A: IP66 confirms weather resistance, but salt spray and UV exposure will degrade seals and optics over time. For coastal deployment, apply protective coatings or consider stainless-steel hardware kits. Check with Axis for environmental hardening options.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02485-001 is a no-frills, reliable outdoor box camera that solves the most common perimeter problem: lighting that changes from dawn to dusk. Lightfinder and Forensic WDR are not marketing gimmicks here—they're the reason you can recover usable footage when a suspect is backlit or a vehicle approaches through shadow. If your site has moderate-to-good ambient lighting and you don't need IR, this camera punches above its price tier.

Technical Highlights:

• Lightfinder + WDR combo: Preserves color detail in low light without IR—critical for facial identification at dusk or dawn. WDR recovers shadow detail under backlit conditions, so you won't lose a suspect's face just because they're in front of a bright window. Real-world payoff: usable footage in 80% of outdoor lighting scenarios without adding IR infrastructure.
• Varifocal lens flexibility: Dial in your exact angle of view on-site. Eliminates the lens-swap truck call if initial sightlines are wrong. Typical range around 2.8–12mm equivalent—wide enough for perimeter sweeps, narrow enough for gate entry identification.
• PoE power under 15W: Doesn't eat into your switch budget on multi-camera deployments. A single 802.3af PoE switch can power dozens of these without upgrade—not the case for higher-MP models or IR cameras.
• H.264 codec: Widely supported by older VMS platforms (Milestone, Genetec, etc.). File sizes are reasonable for 24/7 recording without H.265 overhead.

Deployment Considerations:

• No infrared emitter—relies entirely on Lightfinder for low-light color. If your site goes truly dark (parking lots with zero ambient light), you'll need IR-equipped alternative or additional lighting.
• 2MP is adequate for identification at 20–25 feet; beyond that, license plates and fine facial features blur. If you need wider area coverage or fine detail, a 5–8 MP model is the answer, though bandwidth and storage costs rise proportionally.
• IP66 stops rain and dust, but coastal salt spray will degrade seals over 3–5 years. Plan for conformal coating or stainless-steel hardware in marine environments.
• H.264 file sizes are roughly double H.265 on the same scene—a real factor if you're recording 24/7 across 20+ cameras and budgeting storage or cloud bandwidth. Upgrade to H.265-capable variant if storage is tight.

Best fit: outdoor perimeter, warehouse yards, parking areas, and loading docks where lighting changes predictably and you don't need zoom or IR. The 02485-001 excels in mixed sun-and-shade environments and delivers good forensic color detail without the cost and complexity of IR systems. Deploy it when Lightfinder and WDR alone solve your lighting problem.

Key Specifications:
Color: White
