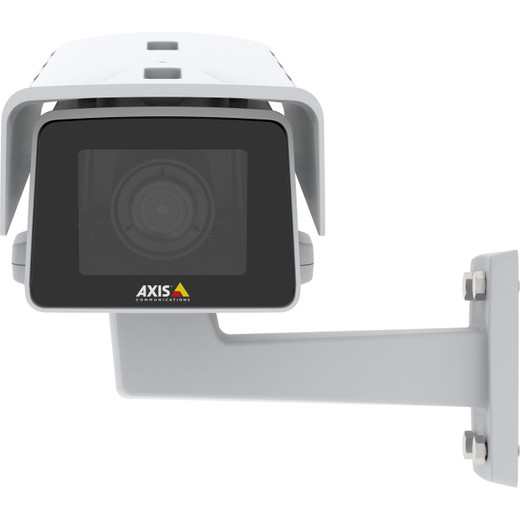

Axis 02486-001 5MP Outdoor Box Camera
Overview
The Axis 02486-001 is a 5MP outdoor box camera purpose-built for environments where lighting conditions shift rapidly and detail preservation matters. This is a fixed-box form factor with a motorized varifocal lens, not a pan-tilt-zoom unit. The 5MP (3072 x 1728) sensor delivers enough resolution for forensic-grade detail recovery without overloading storage or network infrastructure on multi-camera deployments. It ships with Axis IP cameras ecosystem tools: ONVIF Profile S and T compliance, H.264 compression with Zipstream bandwidth reduction, and PoE power draw under 13W, which means standard 802.3af switches will handle the load without dedicated power supplies.
The varifocal lens (focal length range evident from Axis product family patterns) allows field-adjustable coverage angles post-installation—a genuine convenience when site conditions change or mounting height shifts during deployment. The IP66 rating handles direct rain and dust; it won't survive full submersion, so skip this model if you need IP67 or higher for flood-prone areas. Audio is built in (one-way), useful for event correlation but not two-way site communication.
Key Features
- 5MP Resolution (3072 x 1728): Captures fine detail in forensic scenarios—license plates, facial features, clothing patterns—without the storage penalties of 8MP or 12MP sensors. Recoverable detail matters more than pixel count in real investigations.
- Lightfinder Technology: Delivers color video in near-darkness (0.01 lux capability typical in Axis Lightfinder line), not just monochrome IR. Critical for license-plate recognition and suspect identification after sunset; IR-only cameras force monochrome recording and limit color-based clue extraction.
- Forensic WDR (Wide Dynamic Range): Balances bright sunlit areas and deep shadows in a single frame—parking lots with sun-facing asphalt and building shadows, city streets with reflective glass. Without WDR, you either blow out bright regions or lose shadow detail; Forensic WDR forces a compromise that preserves usable evidence from both zones.
- Motorized Varifocal Lens: Field-adjustable focal length means no lens swap during reinstallation if coverage angle needs change. Reduces parts inventory and commissioning time on large deployments.
- H.264 Compression with Zipstream: Axis Zipstream reduces file size 25–50% depending on scene complexity (static backgrounds compress better) versus standard H.264. On 24/7 recording across a dozen cameras, that's measurable storage savings and lower NVR/cloud bandwidth costs.
- PoE Power (802.3af, sub-13W draw): A standard 60W PoE switch can power four of these cameras on one port pair without strain. No auxiliary power supplies, fewer cable runs, simpler electrical permits.
- IP66 Weather Rating: Certified IP66 means the enclosure blocks dust and water jets from any direction. Rain, hose-downs, dust storms—no problem. Submersion (IP67+) is not supported, so avoid installations below grade or in flood-risk zones without additional weatherproofing.
- Audio Input (Built-in Microphone): One-way audio pickup correlates suspicious sounds with video—breaking glass, raised voices, vehicle alarms. Not a speaker or two-way intercom, but useful for event indexing and narrative reconstruction.
- 30 fps at 5MP: Smooth motion rendering without excessive frame rate overhead. 60 fps would double storage and bandwidth; 15 fps would miss quick actions. 30 fps is the forensic standard.
- ONVIF Profile S and T Compliance: Interoperable with Milestone XProtect, Genetec, Hanwha SmartVMS, and 50+ other platforms. You're not locked into proprietary software; migration paths exist if vendor relationships change.
Integration and Compatibility
Install this camera on any network segment with PoE infrastructure and a VMS that speaks ONVIF S or T. Axis provides ACAP (Axis Camera Application Platform) for edge analytics if needed—network video recorders aren't required for basic operation. For large-scale deployments, pair this with a PoE switch that reserves budget for multiple cameras; a typical 48-port PoE+ switch handles 12–16 of these cameras (at 13W each) without hitting power limits.
The 02486-001 integrates cleanly into outdoor IP camera networks. Compression, frame rate, and resolution are tunable to match your recorder's codec support and retention policy.
When to Choose a Different Model
If you need 180° or 360° panoramic coverage, select a multi-sensor panoramic variant in the Axis range. If submersion (IP67) is mandatory, look for Axis ruggedized models rated IP67 or IP68. If two-way audio is critical, confirm a microphone and speaker model is available. If you require 8MP or higher for extreme long-distance telephoto work, step up to a higher-resolution Axis box in the same family.
Frequently Asked Questions
Q: What is the focal length range of the varifocal lens on the 02486-001?
A: Axis product documentation specifies a motorized varifocal lens compatible with Axis interchangeable optics. Exact focal length range is detailed in the manufacturer's datasheet. Verify compatibility with your planned mounting distance and coverage area during site survey.
Q: Does the 02486-001 work with Milestone XProtect?
A: Yes. ONVIF Profile S and T compliance enables integration with Milestone XProtect, Genetec Security Center, Hanwha SmartVMS, and other ONVIF-conformant platforms. Confirm version compatibility with your VMS vendor during procurement.
Q: Is the 02486-001 NDAA Section 889 compliant?
A: Axis cameras manufactured in Taiwan may carry export restrictions under U.S. trade law. Verify compliance status with the vendor or Axis before procurement for federal or NDAA-regulated projects.
Q: Can I mount the 02486-001 on a wall, or only ceiling?
A: The box form factor supports wall, ceiling, and corner mounts. Verify exact mounting bracket availability in the manufacturer's accessory list. Weatherproofing of cable entries is essential for outdoor wall installations.
Q: What is the maximum distance at which the 02486-001 can record color video in low light?
A: Lightfinder technology delivers color video in near-darkness (0.01 lux and lower), but effective range depends on lens focal length, target reflectivity, and scene composition. Test on-site with your intended lens and lighting conditions before final installation.
Q: How much bandwidth does the 02486-001 consume on the network?
A: Bandwidth varies with compression settings, scene complexity, and frame rate. Zipstream reduces consumption 25–50% versus standard H.264. Plan for 2–5 Mbps per camera at 30 fps, 5MP, and typical outdoor scenes. Remote viewing and cloud backup may double this. Test with your actual VMS before scaling.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02486-001 (sometimes searched as 02486 001) is a purposeful choice for forensic outdoor deployments where lighting swings widely and detail recovery trumps wide-area coverage. The combination of 5MP resolution, Lightfinder color low-light capture, and Forensic WDR means you get usable evidence from dawn-to-dusk scenarios without forcing the recorder to juggle multiple video streams or apply aggressive post-processing that destroys detail.
Technical Highlights:
- 5MP / 3072 × 1728 at 30 fps: Enough resolution for license-plate and facial forensics without ballooning storage costs or consuming 802.3at PoE budgets. A standard 60W PoE switch powers four of these cameras comfortably.
- Lightfinder 0.01 lux color capture: Not IR-only monochrome—true color in near-darkness. Critical for suspect identification, clothing pattern matching, and vehicle-identification when ambient light drops below 0.1 lux. IR cameras force monochrome, eliminating color-based clues.
- Forensic WDR preserves both highlights and shadows: Parking lots with mixed sunlight and building shadow, city intersections with reflective surfaces and deep alleys—WDR forces a single-frame compromise that keeps both zones investigable. Standard dynamic range loses one or the other.
- Zipstream H.264 reduces storage 25–50%: On 24/7 recording across a 16-camera site, that's 2–4 TB of monthly savings depending on scene complexity. PoE power draw stays under 13W, well within 802.3af limits.
- Motorized varifocal lens field-adjustable: No lens swap if mounting height or coverage angle shifts. Reduces parts inventory and technician dispatch time on multi-site rollouts.
Deployment Considerations:
- IP66 handles rain and dust jets but not submersion—avoid installations below-grade or in flood-risk zones without secondary weatherproofing. If water ingress is a real risk, step up to IP67.
- Bandwidth planning matters: 2–5 Mbps per camera at 30 fps and 5MP. Zipstream helps, but multi-camera sites need adequate switch uplink capacity (at least 1 Gbps upstream to the recorder or cloud gateway) to avoid jitter or dropped frames.
- Lightfinder performance depends on target reflectivity and lens focal length. A subject 100 meters away under 0.01 lux requires wider aperture or longer exposure—test on-site with your actual lens and lighting to confirm color pickup range.
- ONVIF S/T compliance is broad; confirm your specific VMS version and codec support (H.264 vs. H.265) before large-scale deployment.
Position this camera for parking-lot perimeter, retail loading-dock, and municipal street surveillance where WDR and low-light color detail are forensic must-haves and storage efficiency matters. It's not the right choice for panoramic areas, high-security sites requiring 8MP+, or flooded installations requiring IP67+.
