Axis M1137-E Mk II 5MP Weatherproof Bullet Camera - 02623-001

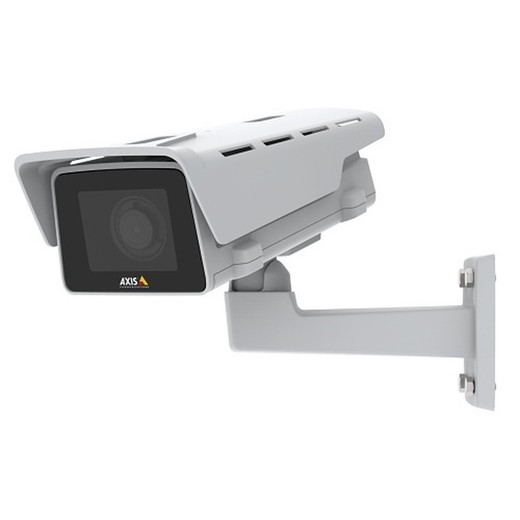

Axis 02623-001 M1137-E Mk II 5MP Weatherproof Outdoor Bullet Camera

The Axis 02623-001 is a purpose-built outdoor surveillance camera for environments where weather resistance and forensic-quality imaging are non-negotiable. The M1137-E Mk II combines a 5MP (2592×1944) sensor with a varifocal lens, intelligent low-light processing, and rugged IP66/IK10 construction into a compact bullet form factor. If you need to capture legible detail outdoors across dawn, dusk, and nighttime conditions without breaking storage budgets, this is a direct contender.

Key Features

• 5MP resolution at 30fps continuous: Delivers 2592×1944 pixel frames suitable for forensic review and license plate/facial detail capture at 15–25 feet. At this resolution and frame rate, expect roughly 300–450 GB per camera per week on 24/7 recording with standard H.264 compression—a meaningful factor when sizing NVR storage.
• Varifocal 2.8–13mm i-CS lens with 112–24° field of view: Eliminates the need to stock multiple fixed-lens SKUs. Adjust coverage angle on-site without changing hardware. The 112° wide end suits general perimeter coverage; the 24° telephoto captures detail at greater distances.
• Lightfinder technology down to 0.17 lux color / 0.03 lux B/W: Operates in near-darkness without switching to grayscale or relying solely on IR. This matters for dawn/dusk transitions where color identity (clothing, vehicle paint) aids investigation. Most competitors require IR or accept grayscale below 1 lux.
• Forensic WDR (Wide Dynamic Range): In high-contrast scenarios—bright sky above dark ground, or backlit subjects—WDR balances exposure to preserve detail in shadows and highlights simultaneously. Critical when the sun is low and a suspect's face would otherwise be silhouetted.
• Zipstream compression technology: Reduces bandwidth and storage consumption by up to 50% versus standard H.264, depending on scene complexity. On a multi-camera system, this translates to smaller NVR drives or longer retention periods at the same storage capacity.
• IP66 and IK10 environmental ratings: IP66 means sustained rain jets and salt spray won't penetrate the housing—suitable for coastal or high-pressure wash environments. IK10 withstands deliberate impact (roughly 20 joules, equivalent to a hammer blow), though the bullet form remains more visible than turret alternatives, which matters in low-threat settings.
• PoE Class 3 power draw (4.4W typical): Runs on standard 802.3af PoE without straining a 90W switch's budget. A single switch port supplies both power and data; no separate power supply or conduit required.
• H.264 compression with integrated audio: Compact, widely supported codec. Audio input allows pairing with an external microphone for incident correlation (e.g., linking audio of a break-in to video timeline).
• Operating temperature -20 to 50°C (-4 to 122°F): Handles temperate and cold climates. Below -20°C, performance isn't guaranteed; in extreme heat above 50°C, sensor frame rate may degrade. Thermal management becomes a factor in unventilated attic or south-facing wall mounts.
• Secure boot and signed firmware: Prevents unauthorized firmware modifications. In high-security or compliance-critical environments (federal facilities, chemical plants), this is table stakes.
• PVC-free design: Environmentally responsible; some public and healthcare institutions require this.

Integration & Compatibility

The 02623-001 supports Axis IP cameras ecosystem integration. ONVIF Profile S/T support enables broad VMS compatibility—Milestone, Genetec, Hanwha SmartVMS, and others. The compact bullet mount integrates into standard wall and eave brackets without custom fabrication. Power sourcing requires a PoE-capable network switch with 802.3af support; a typical 48-port 90W managed switch can supply 20+ of these cameras simultaneously.

When to Choose a Different Model

If you need higher megapixel density for extreme-distance detail (license plates at 100+ feet), consider a higher-resolution variant in the Axis outdoor line. If covert mounting is required, a compact turret or mini-dome form factor is less conspicuous than a bullet. If you need pan-tilt-zoom capability, evaluate PTZ camera options instead. If the environment exceeds -20°C regularly or requires full submersion (IP67+), verify thermal and submersion specs against your site conditions.

Outdoor Surveillance Planning

Before deploying any outdoor camera, confirm PoE switch capacity, cable run distances (max 100m for PoE), conduit routing to avoid UV-exposed runs, and mounting hardware rated for wind load in your region. A camera selection guide can help validate lens angle and resolution against specific coverage areas.

Frequently Asked Questions

Q: Is the Axis 02623-001 suitable for high-vandalism environments?

A: The IK10 rating provides robust impact resistance, but the bullet form factor remains more visible than compact or flush-mount designs. In extremely high-risk settings, pair the camera with a protective cage or choose a more discreet form factor.

Q: Does the M1137-E Mk II require a separate power supply?

A: No. The camera draws 4.4W typical via PoE Class 3 (802.3af), so a single network cable carries both power and data. No additional power conduit or 12VDC supply is needed.

Q: What's the typical storage footprint for 24/7 recording?

A: At 5MP, 30fps, H.264 with Zipstream enabled, expect roughly 300–450 GB per camera per week depending on scene complexity and motion. Use this to calculate multi-week or multi-month retention on your NVR.

Q: Can I integrate this camera into Milestone XProtect or other third-party VMS?

A: Yes. The camera supports ONVIF Profile S and T, enabling integration with most enterprise VMS platforms. Verify specific version compatibility with your VMS provider.

Q: Is the varifocal lens motorized or manual?

A: The i-CS lens is motorized, allowing remote focus and zoom adjustment via the camera's web interface or integrated management software. No physical adjustment at the camera is required after initial installation.

Q: What happens to color performance below 0.17 lux?

A: Below 0.17 lux, the camera switches to black-and-white mode to maintain usable sensitivity down to 0.03 lux. IR illumination (if present on the camera) would enhance nighttime range, but verify IR specs in your deployment datasheet.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The 02623-001 addresses a specific and common challenge in outdoor surveillance: delivering color-capable forensic imagery in variable lighting without excessive storage or bandwidth overhead. The combination of Lightfinder and Forensic WDR is the real differentiator here. Most outdoor cameras force a choice between low-light sensitivity and color fidelity, or between dynamic range and compression efficiency. The M1137-E Mk II doesn't eliminate that tradeoff entirely, but it handles the middle ground well—dawn and dusk transitions, backlighting scenarios, and marginal nighttime conditions where you still need identity information.

Technical Highlights:

• Lightfinder at 0.17 lux (color): Real advantage over fixed-aperture competitors. Many 5MP bullets require either IR illumination or grayscale mode below 1 lux. Here, you retain color identity (vehicle paint, clothing) through twilight, which matters for non-criminal investigations where a witness's description might reference color rather than grayscale tonality.
• Zipstream compression (up to 50% reduction): On a 10-camera perimeter system, this means NVR drive savings equivalent to 1–2 additional cameras' worth of storage. Real budget impact at scale.
• PoE Class 3 at 4.4W typical: A 90W switch supplies 20+ of these without daisy-chaining or auxiliary power. Simplifies infrastructure planning and reduces cable runs and power conduit cost.
• IP66 + IK10: The IK10 is the standout. Most outdoor cameras top out at IK08. IK10 means you can deploy in moderate-to-high vandalism risk areas without additional protective housings, assuming the integrator uses robust mounting hardware.

Deployment Considerations:

• Bullet form factor visibility: The M1137-E Mk II is not discreet. In campus settings or aesthetically sensitive areas, a flush-mount turret or dome may be preferred despite slightly higher cost. In perimeter and industrial applications, visibility is often a deterrent—so it's a feature, not a bug.
• Thermal stress above 50°C: Southern wall or roof mounts in hot climates can push ambient temps past 50°C, causing the sensor to throttle frame rate or trigger thermal shutdown. Plan for ventilation or shade in those scenarios.
• Varifocal lens complexity: The motorized i-CS lens is powerful but adds one more configuration step. If your integrator team is unfamiliar with Axis VMS or ONVIF tools, allocate time for focus and zoom commissioning. It's not difficult, but it's not plug-and-play either.

This camera suits perimeter surveillance for mid-to-large facilities, critical infrastructure sites, parking structures, and transportation hubs where weather resistance and forensic image quality justify the slightly higher capex versus budget-grade alternatives. Skip it if you need extreme zoom (consider PTZ), covert form factors, or extreme-cold operation below -20°C.
