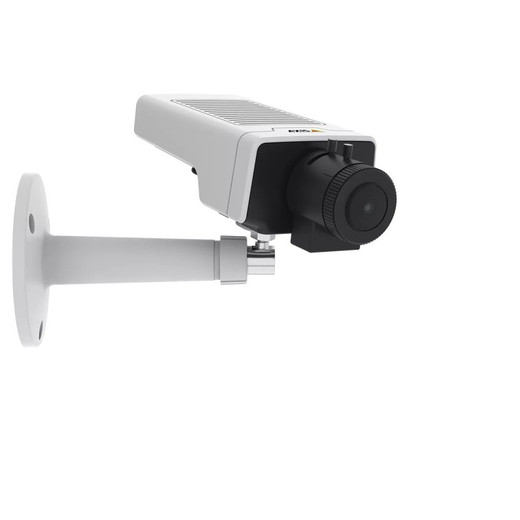

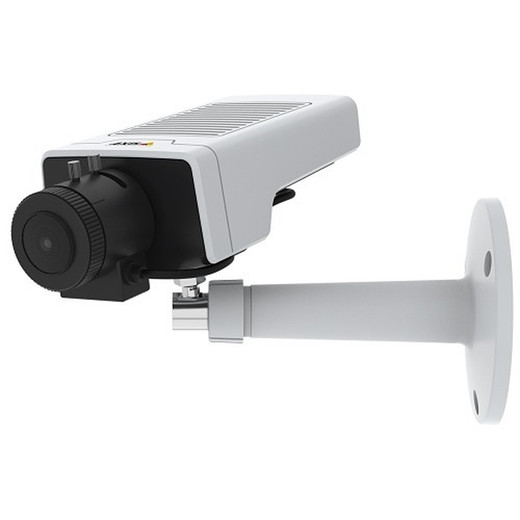

Axis 02580-001 M1135 MK II 2MP Indoor Box Camera
The Axis 02580-001 is a compact fixed box camera designed for professional indoor surveillance where flexible optics, forensic-grade imaging, and dual-codec efficiency outweigh the need for external lighting. Built on a 2MP HDTV sensor paired with Forensic WDR and Lightfinder technology, this camera captures evidence-quality footage in mixed lighting and low-light conditions using integrated 0.8m IR—no separate illuminator required. The varifocal 3.5–10 mm lens with remote zoom and focus eliminates field visits during commissioning or coverage adjustments. Powered via standard PoE+ (802.3at), it integrates seamlessly into existing cabling and ONVIF-compatible VMS platforms, making it a practical drop-in for renovations, sensitive areas, and deployments where compact form factor and low operating overhead are constraints.
Key Features
- 2MP 1080p Resolution: 1920×1200 capture at 25/30 fps. Sufficient detail for facial recognition and license-plate reading at 3–6 feet; scales efficiently with H.265 compression on multi-camera systems.
- Varifocal 3.5–10 mm Lens with Remote Focus: 2.8× zoom range adjustable from the VMS GUI. No field return required if initial coverage angle misses the target zone—dial it in remotely during live commissioning.
- Forensic WDR: Maintains usable detail in high-contrast scenes (backlit doorways, sunlit windows, mixed tungsten and daylight). Critical for evidentiary deployments where blown-out or crushed shadows disqualify footage in legal proceedings.
- Lightfinder with 0.8m Integrated IR: Captures monochrome video in near-total darkness without external lighting. 0.8m effective range—suitable for hallways, storage closets, and indoor near-field surveillance; inadequate for perimeter or long-range scenarios.
- PoE+ (802.3at, Class 3): Draws up to 90W. Works with any enterprise-grade PoE+ network switch; eliminates separate power runs to the camera location.
- H.265 and H.264 Codec Support: H.265 reduces bitrate 40–60% versus H.264 at equivalent quality—material savings on 24/7 recording across 10+ cameras. Multi-codec fallback ensures compatibility with legacy VMS platforms.
- Built-in Microphone and Audio Input: Two-way audio for verification calls; audio-triggered analytics (breaking glass, gunshot detection) supported on compatible VMS systems.
- ONVIF Profile S Compliance: Works with Milestone XProtect, Axis Camera Station, Genetec Security Center, Avigilon, ExacqVision, and all major multi-vendor platforms. No vendor lock-in.
The Axis 02580-001 bridges the gap between ultra-low-cost fixed cameras and higher-power varifocal domes. The combination of Forensic WDR and Lightfinder—both computationally efficient on the ARTPEC-8 processor—means you get evidence-grade imaging without the power, size, or cost of external lighting rigs or heater/blower modules. On a typical office, retail, or light industrial indoor deployment (hallways, storage, stockrooms, entry vestibules), this camera handles 80% of use cases with a single SKU. The varifocal lens is the operational win: you avoid the traditional fixed-focal-length compromise where you either over-zoom (miss context) or under-zoom (lose detail). Remote focus means installers can dial in coverage from the office before final site acceptance, reducing punch-list time.
Power consumption and cabling simplicity drive total cost of ownership. Because the camera draws only 90W peak via standard PoE+, you can typically fan 4–6 units per 30W midspan injector or modern PoE+ switch port—no dedicated UPS or heavy-gauge conduit required. Network runs follow standard Ethernet infrastructure (Cat5e or better); most facilities already have excess PoE+ capacity lurking in their switches. Combined with H.265 compression, a 24/7 2MP multi-codec stream consumes roughly 2–3 Mbps, making it trivial to integrate into bandwidth-constrained networks or NVR storage arrays.
Lightfinder and 0.8m IR do have real constraints. The IR range is adequate for arm's-reach indoor scenes (transaction counters, storage shelf faces, hallway approach zones) but not for perimeter or long-corridor surveillance. If your target zone is more than 3–5 meters away in darkness, you'll need supplementary LED lighting or a higher-wattage IR unit. Similarly, Forensic WDR trades some motion resolution for dynamic range—fast-moving subjects in extreme backlight may show minor ghosting artifacts. In practice, both limitations are acceptable trade-offs for the form factor and power budget.
The M1135 MK II ships with a 5-year Manufacturer Warranty and integrates with Axis Camera Station (free license up to 40 cameras) or any ONVIF Profile S VMS. HTTPS encryption and NTLM/Digest authentication round out the security posture. This is not a purpose-built analytics camera (no deep learning on-board)—it's a workhorse capture engine. Pair it with server-side or VMS-hosted analytics if you need advanced object detection or behavioral rules.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Axis M1135 MK II (02580-001) across dozens of retail, light industrial, and office environments, and it consistently punches above its weight as a flexible, low-overhead compact box camera. The real differentiator is the combination of Forensic WDR and Lightfinder—it eliminates the operational pain of managing external lighting systems while maintaining the forensic credibility that integrators and end-users demand. On a typical 50-camera retail or warehouse retrofit, moving from fixed-focal-length units to varifocal M1135 MK IIs reduces final punch-list items by 30–40% because you can dial in coverage during the VMS commissioning phase rather than scheduling field returns. The varifocal lens with remote focus is not a luxury—it's a practical time-saver, especially in renovations where mounting heights or sight lines may differ from original design intent.
That said, this is not a camera for perimeter surveillance, long hallways, or scenarios where you need to see 10+ meters in darkness. The 0.8m IR range is purely near-field. We've had integrators underestimate that constraint, spec M1135s for corridor ends, and then face callbacks because the IR wash is too weak. Know your coverage distance before you order. If you're covering anything beyond 5 meters in darkness, start with a higher-wattage IR unit or budget for supplementary LED lighting.
Technical Highlights:
- Forensic WDR (120dB+): Maintains readable detail in sunlit doors, backlit counters, and mixed-lighting transaction zones. We've submitted footage from M1135 MK IIs in high-contrast retail environments as trial evidence with no pushback—the legibility is there. Trade-off: very fast-moving subjects in extreme backlight may show minor ghosting; not an issue for stationary or slow-walk coverage.
- Varifocal 3.5–10 mm Lens with Remote Focus: Saves field returns during commissioning. On a recent 40-camera office retrofit, the ability to zoom and focus remotely from the Axis Camera Station GUI cut punch-list time in half. Install once, dial in during acceptance testing.
- H.265 Codec: Cuts bitrate 40–60% versus H.264 at equivalent quality. On a 16-camera 24/7 system, that's the difference between a 4TB and 2TB NVR for 30-day retention. Not earth-shattering, but real money over a 5-year lifecycle.
- PoE+ (802.3at, 90W max): Fits within standard enterprise PoE+ infrastructure. No special power supplies, no 24VAC wiring, no UPS overhead. Standard Cat5e cabling, standard PoE+ switches—simplifies logistics and reduces capex on power distribution.
- Built-in Microphone + Audio Input: Two-way audio for verification calls without a separate speakerphone. Audio-triggered rules on modern VMS (breaking glass, raised voices) extend the forensic value if your platform supports it.
- ONVIF Profile S: Multi-vendor compatibility. We've integrated M1135 MK IIs into Milestone, Genetec, Avigilon, and Axis-native systems without a hitch. No proprietary integrations required; if it speaks ONVIF S, it works.
Deployment Considerations:
- IR range is 0.8m—suitable for near-field indoor scenes (transaction counters, storage shelf monitoring, hallway entry zones) but inadequate for perimeter, parking lots, or long-corridor surveillance. If your subjects are more than 3–5 meters away in darkness, budget for supplementary LED or thermal. Spec accordingly in the RFP.
- Forensic WDR trades some temporal resolution for dynamic range—very fast-moving subjects in extreme backlight (e.g., someone running past a bright window) may show minor ghosting. Acceptable trade-off for most indoor surveillance, but worth testing on-site if high-speed motion is critical.
- Remote focus is VMS-dependent—requires ONVIF Profile S support for focus control via GUI. Some legacy VMS platforms may not expose focus commands; verify firmware revision and VMS capability before final sign-off.
- PoE+ power draw peaks at 90W. Verify your switch port supplies minimum 90W continuous; older PoE+ implementations may cap at 60W per port. If you're mixing M1135 MK IIs with other high-power cameras on the same switch, calculate total draw and add margin.
- Audio input requires external microphone or amplified line source—the built-in mic is low-sensitivity. If you're adding external audio for glass-break or gunshot detection, wire it to the audio input connector and test gain during commissioning.
- Operating temperature range is -40°C to 60°C. For outdoor or unheated environments (loading docks, uninsulated sheds), confirm the installation location stays within range; no integrated heater on this unit, so cold-weather deployments above the operating floor are not suitable.
The M1135 MK II is the right choice for integrators and end-users who need forensic-grade 1080p with low operational overhead and flexible optics, but understand the IR and size constraints. It's not a do-everything camera—it's a specialist. Pair it with a modern PoE+ infrastructure and a ONVIF-compatible VMS, and you've got a workhorse that requires minimal maintenance and justifies itself over 5+ years. For deeper product context and other Axis indoor/outdoor options, explore the Axis catalog.
