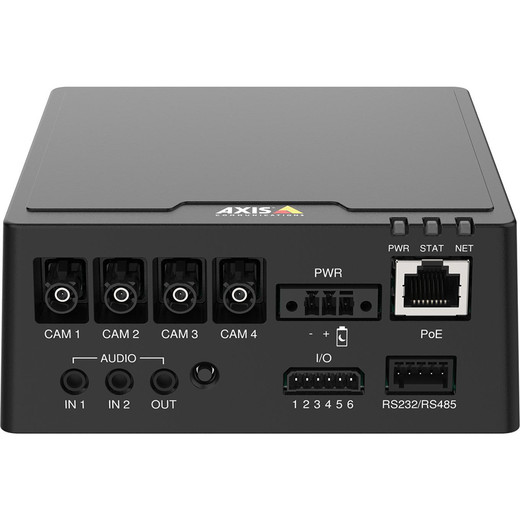

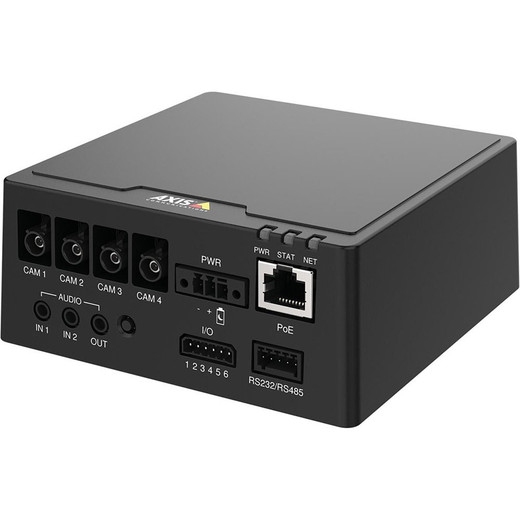

The Axis F9114 Main Unit (Model 01991-001) is a sophisticated, second-generation 4-channel main unit designed to work exclusively with the 2nd generation sensors and cables from Axis F Series. This unit is tailored for demanding surveillance scenarios, offering robust performance and a range of advanced features.
Key Features:
- Compatibility: It only works with 2nd generation sensors and cables from the Axis F Series, ensuring seamless integration with existing Axis systems.
- Video Performance: Supports four HDTV 1080p video streams at 30 fps or 720p video streams at up to 60 fps, delivering high-quality video even in challenging light conditions.
- Forensic WDR and Lightfinder: These features provide clarity in both dark and light areas of a scene and capture sharp, color images in low light, respectively.
- Axis Zipstream Technology: Supports H.264 and H.265 video compression formats, effectively reducing storage and bandwidth requirements without compromising image quality.
- Rugged Design: The unit and its connectors are designed to withstand harsh conditions, suitable for installations that may be exposed to vibrations.
- Two-Way Audio and I/O Support: Allows for the connection of external microphones for audio warnings and listening in on the environment.
- Cybersecurity Features: Built-in cybersecurity features, including Axis Edge Vault, enhance the security of the system by protecting the device ID and simplifying network authorization.
- Flexible Installation: The divided network camera concept allows for maximum flexibility in selecting the sensor unit and cable type and length based on specific needs.
Package Contents:
- Axis F9114 Main Unit
- Installation Guide
- Windows® decoder 1-user license
Additional Specifications:
- Environmental Suitability: Designed for indoor use.
- Material and Color: Made of aluminum and comes in black.
- Dimensions: 51 x 120 x 120 mm (2 x 4.7 x 4.7 inches).
Smart Features:
- Ignition Control: Ideal for emergency vehicles and buses, featuring ignition control with controlled shutdown to prevent battery drain.
- Built-in Analytics: Offers built-in analytics for enhanced surveillance capabilities.
Compatibility and Integration:
- Compatible with VAPIX, ACAP (AXIS Camera Application Program), ONVIF Profile G, and ONVIF Profile S.
- NDAA compliant, ensuring adherence to specific security standards.
The Axis F9114 Main Unit is an excellent choice for advanced surveillance systems, especially in scenarios where rugged and reliable equipment is required. Its high-performance video capabilities, combined with advanced features like WDR, Lightfinder, and cybersecurity measures, make it a top-tier choice for businesses seeking sophisticated surveillance solutions.
