Axis F9114-B Mk II 4-Channel Main Unit - 03001-001

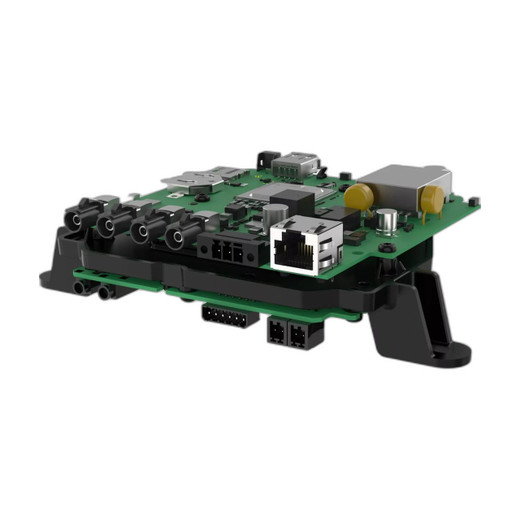

Axis 03001-001 F9114-B Mk II 4-Channel Main Unit

The Axis 03001-001 is a 4-channel edge processing hub designed to centralize intelligence across distributed modular camera deployments. Rather than pushing video analysis to a remote server or cloud platform, this main unit processes analytics at the edge — meaning lower latency, reduced WAN bandwidth consumption, and faster incident response. If you're building a multi-sensor surveillance network where scene intelligence matters more than traditional DVR-style recording, this barebone processor unit handles that workload without external compute infrastructure.

Key Features

• 4-channel capacity: Supports up to four Axis F-series modular sensor units, allowing you to deploy different sensor types (standard, panoramic, or specialized) through a single processing pipeline. This flexibility is critical when a single wide-area camera doesn't match your coverage requirements — swap in a different F-series head without replacing the main unit.
• 8MP resolution per channel at 12–15 fps: Each connected sensor delivers forensic-quality image clarity. The 12–15 fps frame rate is optimized for detail capture in stationary scenes (retail floors, warehouse zones, loading docks) rather than high-motion tracking. You're trading smoothness for pixel density — a worthwhile tradeoff when identifying faces, license plates, or small objects matters more than motion blur.
• Edge-based AI analytics: Runs detection and classification directly on the main unit without sending video to external analytics servers. This reduces latency for alarm events and eliminates the need for a separate analytics workstation in many deployments, cutting capital and operational complexity.
• Axis Edge Vault hardware-level cybersecurity: Protects device identity, firmware integrity, and configuration data against unauthorized modification through cryptographic hardware binding. This isn't just software encryption — the unit resists tampering at the silicon level, critical in regulated environments (healthcare, finance, critical infrastructure) where audit trails and supply-chain integrity are non-negotiable.
• Two audio-in ports: Enables two-way communication or synchronized audio capture across multiple zones. Useful for retail loss prevention (pairing audio with video analytics) or industrial sites where coordinating incident response requires real-time voice integration.
• Four configurable I/O ports: Direct integration with legacy alarm systems, access control readers, occupancy sensors, and intercom infrastructure. No separate relay module or third-party gateway — plug your existing sensors straight into the main unit's I/O headers.
• Barebone form factor: Ships without an enclosure, cooling system, or power supply. You select the housing (compact wall-mount, 19" rack-mount system, or weatherproof outdoor box) and power configuration that fits your site. This flexibility is invaluable in constrained spaces — ceiling cavities, equipment racks, or OEM-integrated systems where standard camera housings won't fit.
• UL recognized for regulatory compliance: Meets safety and construction standards required for commercial deployments in North America, reducing friction in procurement workflows that demand third-party validation.

Integration & Compatibility

The F9114-B Mk II (03001-001) connects to any Axis F-series modular sensor head via proprietary sensor cabling. Video output supports standard ONVIF protocols, allowing integration with third-party VMS platforms (Milestone XProtect, Genetec, etc.) or standalone recording systems. Audio and I/O ports are RJ-45 connectors; pin configurations are documented in the full technical specification sheet. Power input is 12VDC; actual current draw depends on the number and type of connected sensors — plan for your specific sensor configuration during power-budget design.

When to Choose a Different Model

If your deployment doesn't require modular sensor flexibility — meaning a single fixed-position camera covers your scene — a standard integrated Axis IP camera will be simpler and cheaper. If you need higher frame rates (30+ fps) for motion-heavy scenes (busy intersections, vehicle monitoring), consider an Axis model with native 30 fps at full resolution rather than this 12–15 fps edge processor. If you lack the engineering resource to select and integrate a barebone unit with custom housing and power, defer to integrators with established NVR and camera packages.

Applications

• Transportation hubs and parking facilities requiring discreet, modular multi-angle coverage
• Industrial environments with space constraints and modular sensor needs
• Urban surveillance networks leveraging edge processing for reduced backbone bandwidth
• Custom-built security systems requiring tailored form factors and OEM integration
• Multi-zone monitoring with centralized analytics and legacy alarm system integration

Frequently Asked Questions

Q: Can the 03001-001 work with non-Axis cameras?

A: No. The F9114-B Mk II is a dedicated processing unit for Axis F-series modular sensors. It does not accept ONVIF camera feeds as input. However, it outputs ONVIF video streams, so the processed output integrates with third-party VMS platforms.

Q: What's the bandwidth footprint of a fully populated 03001-001 with four 8MP sensors?

A: At 12–15 fps per channel with H.265 compression, bandwidth ranges from roughly 8–15 Mbps aggregate depending on scene complexity and encoder settings. H.265 is the default; H.264 is also supported if your network infrastructure prefers it, though at the cost of roughly 40–50% higher bitrate.

Q: Is the 03001-001 NDAA Section 889 compliant?

A: Axis is a Swedish manufacturer (Axis Communications AB). The unit is not listed as NDAA-restricted, but verify with your procurement team or consult the official NDAA restricted-products database if federal contracting is involved.

Q: What power supply should I use?

A: The unit requires 12VDC input. Actual current draw depends on the number and type of connected F-series sensors (typically 2–4A total for four sensors). Select a regulated 12VDC supply rated for your worst-case load plus 25% headroom. The barebone form factor means power selection is your responsibility — no supply is included.

Q: Can I mount this in a standard 19" equipment rack?

A: The main unit is barebone — no standard rack ears are included. However, the compact form factor is designed for custom mounting. Select a small 1U or 2U mounting chassis, or integrate it directly into your OEM enclosure. Integrators typically handle this customization.

Q: Does Axis provide a recommended housing or power supply kit?

A: No. The barebone design requires you or your integrator to source appropriate enclosure and power components. This is not a limitation — it's the design intent, enabling flexibility in constrained installations.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 03001-001 represents a deliberate shift away from centralized video analytics. Instead of streaming video to a separate NVR or analytics server, this main unit processes intelligence at the edge — meaning detection events (object crossing, loitering, unauthorized access) are triggered locally with near-zero latency. For integrators managing bandwidth-constrained networks or sites where sub-second alarm response is required, that's a material advantage. The 4-channel modular architecture also eliminates the need to buy four separate camera units; you deploy one processor with four different sensor heads tailored to each zone's coverage requirements.

Technical Highlights:

• 8MP per channel at 12–15 fps: Delivers forensic-grade pixel density for identification tasks (faces, license plates, small objects) in stationary scenes. The lower frame rate isn't a weakness — it's intentional. You're not streaming video for motion tracking; you're capturing high-resolution snapshots of events. A warehouse operator monitoring a loading dock or retail loss-prevention team analyzing customer flow benefits more from 8MP at 15 fps than from 2MP at 30 fps.
• Edge Vault cryptographic binding: Firmware and configuration data are signed and verified at boot, resistant to offline tampering or supply-chain injection attacks. In regulated sectors (healthcare, finance, critical infrastructure), this hardware-level assurance simplifies audit and compliance workflows — you can prove the unit hasn't been modified since manufacture.
• Dual audio input + four configurable I/O ports: Direct integration with existing alarm and access control infrastructure. No middleware, no separate relay module — the 03001-001 connects to motion sensors, door readers, and intercom systems via RJ-45 pinouts. This is critical for sites with decades of installed base equipment that won't be replaced.
• Barebone form factor enables custom housing: Unlike integrated cameras, you select the enclosure. Deploy in a concealed ceiling cavity, sealed industrial box, rack system, or OEM-embedded application. This flexibility is invaluable in constrained spaces where standard form factors fail.

Deployment Considerations:

• Power and housing are your responsibility. The unit ships without a supply or enclosure. You must size 12VDC power for your specific sensor load (typically 2–4A for four sensors) and source or fabricate appropriate housing. This is not a limitation if you have integrator support — it's intentional design. But if you expect a plug-and-play unit, this is not it.
• 12–15 fps is not negotiable. If your deployment requires smooth motion tracking or high-frame-rate forensics (busy intersection, vehicle lot), this processor won't deliver. Confirm your scene requirements before specifying — a 30 fps camera unit may be a better fit if motion smoothness is essential.
• Modular sensors only. The 03001-001 processes F-series sensor input exclusively. You cannot attach standard Axis IP cameras or third-party camera feeds. This is a strength (unified pipeline, consistent analytics) and a constraint (no mixing legacy cameras with new deployment).

The 03001-001 is strongest in distributed surveillance networks where edge intelligence, modular sensor flexibility, and custom form factors matter more than simplicity. Transportation hubs, industrial zones, and large retail environments with multiple observation points benefit from reduced latency and unified analytics. Smaller single-camera deployments or sites requiring smooth motion capture should defer to standard Axis camera units or Axis surveillance models with higher frame rates.
