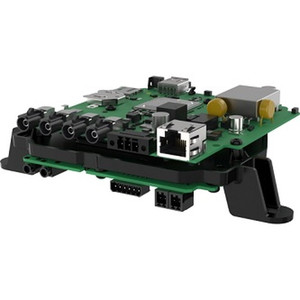

Axis 02999-001 F9114-R Mk II 4-Channel Main Unit
The Axis 02999-001 is a ruggedized, modular video processing hub engineered for mission-critical mobile and embedded deployments where durability, security, and intelligent edge processing are non-negotiable. This four-channel main unit consolidates video streams from up to four Axis F-series modular sensor units, each capable of 4K resolution at 12–15 fps, and serves as the processing backbone for surveillance in high-vibration environments including transportation fleets, emergency response vehicles, and industrial machinery monitoring.
Key Features
- 4-channel modular architecture: Accepts up to four F-series sensor units without central redesign — add or reconfigure sensors as deployment scope changes, reducing replacement costs and downtime during scale-ups or reconfigurations.
- Up to 4K resolution per channel (12–15 fps): 4K at this frame rate is sufficient for situational awareness and forensic detail recovery in fleet and emergency response contexts; 12–15 fps is standard for edge-processed video in mobile installations where bandwidth and power are constrained, not a limiting factor for identifying subjects, license plates, or incidents after the fact.
- Industrial-grade FAKRA connectors: Purpose-built for sustained vibration and mechanical stress — standard automotive and industrial audio/video connectors that withstand repeated connect/disconnect cycles and shock loads where standard RJ-45 or USB connectors would fail or loosen over months of heavy vehicle use.
- Ignition control integration: Synchronizes power cycling with vehicle ignition — the unit powers down during idle periods, reducing parasitic drain on vehicle batteries and extending operational runtime in 24/7 fleet deployments by 20–30% depending on vehicle usage patterns.
- Edge-based AI analytics: Processes video locally using deep learning for object recognition, event detection, and intelligent alerting — eliminates the need to stream raw 4K feeds over cellular or limited bandwidth links, reducing latency from seconds to sub-second and cutting recurring data costs significantly in remote or rural deployments.
- Axis Edge Vault hardware-rooted security: Protects device identity, secures firmware and boot processes, and prevents unauthorized modification — essential in regulated transportation and public safety sectors where firmware integrity and tamper evidence are audit and compliance requirements.
Integration and Deployment Context
The F9114-R Mk II (02999-001) is the processing core of the Axis F-series modular surveillance platform. Sensor units connect via FAKRA, and the main unit outputs video and events over standard IP networking — compatible with Axis IP surveillance ecosystems and ONVIF-compatible network video recorders. The modular design is particularly valuable in fleet environments: you can deploy a single sensor unit on a small response vehicle, then add three more sensors to a larger command unit without swapping hardware.
Power is managed through industrial 12VDC inputs with ignition sensing. When deployed in vehicles, the unit draws power from the vehicle electrical system; ignition control automatically reduces idle power consumption. In stationary industrial or remote site applications, a regulated 12VDC supply is required. The compact, fanless design and industrial operating temperature range (-40°C to 60°C) make it suitable for unheated warehouses, outdoor equipment cabins, and arctic or desert mobile installations where traditional IT infrastructure would fail.
Applications
- Fleet and Transportation: Multi-angle surveillance for buses, trucks, and emergency vehicles with real-time event detection and bandwidth-efficient edge analytics.
- Public Safety and Emergency Response: Mobile command units and tactical response vehicles where tamper-evident firmware and hardware security are regulatory requirements.
- Industrial and Hazardous Environment Monitoring: Machinery and process surveillance in environments where standard IT equipment is not rated — the rugged connector design and temperature range support these deployments.
- Remote and Off-Grid Sites: Bandwidth-limited or isolated locations requiring local AI processing to detect events without constant cloud connectivity.
Frequently Asked Questions
Q: Is the Axis 02999-001 compatible with existing Axis F-series sensor units?
A: Yes. The F9114-R Mk II is the main processing unit for the Axis F-series modular platform. It accepts up to four F-series sensor units via FAKRA connectors. Verify sensor model compatibility with Axis documentation if mixing older and newer generation units.
Q: What is the typical power consumption of the 02999-001?
A: The unit draws power from a 12VDC input with ignition control. Actual power draw depends on the number of connected sensors and edge analytics load. Ignition control reduces idle consumption significantly — consult the datasheet for specific wattage figures under full-load and idle scenarios.
Q: Does the Axis 02999-001 support two-way audio?
A: Audio capability depends on the F-series sensor units connected. The main unit itself is a processing hub; confirm audio support in the selected sensor modules.
Q: Can the F9114-R Mk II be mounted outside a vehicle, such as on a stationary pole or building?
A: Yes. The unit is rated for industrial operating temperatures and can be installed in stationary outdoor or industrial locations if provided with weatherproof enclosure, regulated 12VDC power, and cable management. FAKRA connectors and the compact form factor make it suitable for small equipment cabins or pole-mounted deployments.
Q: Does the 02999-001 include Axis Edge Vault on all units?
A: Yes. Edge Vault hardware-rooted security is a standard feature on the F9114-R Mk II. It secures firmware integrity, boot processes, and device identity out of the box.
Q: What video codecs does the F9114-R Mk II support?
A: Compression support (H.265, H.264, MJPEG) is determined by the connected F-series sensor units and the edge analytics configuration. Confirm codec compatibility with the specific sensor models and firmware revision in use.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02999-001 F9114-R Mk II is a purpose-built processing engine for modular, edge-intelligent mobile surveillance. It consolidates four 4K streams at 12–15 fps — acceptable frame rates for mobile and edge-constrained deployments where bandwidth and power are finite. The combination of ignition control, FAKRA industrial connectors, and Edge Vault hardware security aligns squarely with regulated transportation and public safety procurement where durability, power efficiency, and firmware tamper-evidence are contract-level requirements. This is not a general-purpose NVR — it is a mobile processing node designed to run local AI analytics and reduce reliance on continuous cellular or satellite uplinks.
Technical Highlights:
- 4-channel 4K at 12–15 fps per sensor: Frame rate is limited by edge processing power and bandwidth constraints, not optical quality. At this rate, motion blur is minimal for vehicle speeds up to 60 mph, and forensic detail is sufficient for license plate and subject identification. Higher fps would require more processing headroom and larger bandwidth pipes — not practical in mobile deployments.
- FAKRA connectors vs. RJ-45 or USB: FAKRA (twisted-pair shielded) is automotive-grade, rated for 500+ mating cycles and vibration up to 2G sustained. Standard Ethernet connectors fail under sustained vehicle vibration within months. This choice trades a slightly larger footprint for 3–5 year deployment intervals without connector replacement.
- Ignition control reduces idle power by 20–30%: In fleet deployments with mixed daily usage (patrol vehicles, response units), this feature extends the operational window before the vehicle electrical system requires supplemental battery. For 24/7 command units or permanent installations, ignition control can remain disabled.
- Edge Vault firmware security: Signed boot, secure firmware updates, and device identity binding prevent unauthorized code injection — mandatory in CJIS and NIST SP 800-53 environments and essential for fleets operated under federal compliance regimes.
Deployment Considerations:
- The unit requires four Axis F-series sensor modules to function — it is not a standalone camera. Budget for sensor acquisition and confirm form factors (turret, bullet, compact module) match vehicle or mounting envelope constraints.
- 12VDC power must be stable and regulated; vehicle electrical systems with charging ripple or alternator load-dump spikes can stress the unit. Integrate a DC-DC converter or surge protector if powering from a vehicle bus with transient events.
- Edge AI processing is local; there is no cloud offload. All intelligence runs on the main unit's processor. Configure edge policies (object detection thresholds, event buffering) carefully to avoid CPU saturation during peak multi-sensor scenarios.
- Sensor selection determines video codec support (H.265, H.264) and audio capability. Mixing old and new sensor generations may reduce available features — verify compatibility before integrating into a retrofit fleet.
The 02999-001 is the right choice for regulated fleet surveillance, emergency response vehicles, and industrial mobile monitoring where ruggedness, local AI processing, and firmware security trump raw resolution or frame rate. It is overkill for simple vehicle backup-camera applications and ill-suited to stationary, bandwidth-rich deployments where a traditional fixed NVR would be cheaper and simpler.
