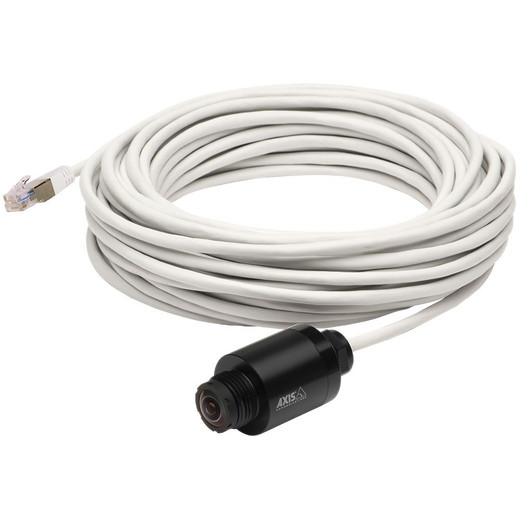

Axis 0737-001 F1035-E Fisheye Sensor Unit, 3m
Overview
The Axis F1035-E (0737-001) is a compact, remote fisheye IP camera sensor unit designed for the Axis F Series modular surveillance platform. With a 194° horizontal field of view, this sensor unit captures a full hemispherical scene from a single installation point — eliminating the blind spots that plague conventional fixed cameras in tight corners, recessed ceilings, or behind-counter retail spaces. The F1035-E pairs with any compatible AXIS F Series main unit, which handles all video processing, encoding, and network transmission, keeping the sensor itself small enough to mount discreetly where a traditional camera body simply won't fit.
The 3-meter cable between the sensor and the main unit gives installers meaningful placement flexibility — run the sensor into a ceiling void, behind a mirror, or through a tight conduit, while the main unit sits in a convenient accessible location. For integrators working on covert surveillance, retail loss prevention, or space-constrained commercial environments, this combination of extreme wide-angle coverage and compact sensor form factor is the practical answer to a common installation problem.
Key Features
- 194° Fisheye Field of View: A single sensor covers an entire room or intersection in one shot. At 194° horizontal, you're capturing beyond a true hemisphere — useful in corner-mount or ceiling-center installations where you need wall-to-wall coverage without stitching multiple camera feeds. That means fewer cameras, fewer licenses, and fewer cable runs on your next retail or hospitality project.
- Modular Sensor-Unit Architecture: The F1035-E is the sensor only — no lens adjustment, no onboard processing, no network port. All encode/decode, PoE, and network functions live in the AXIS F Series main unit. This split architecture lets you place the optical element exactly where coverage demands it, not where a conduit or network drop happens to be.
- 3-Meter Sensor Cable: The included 3m cable gives you enough reach to separate the sensor from the main unit across a ceiling void, behind a display case, or through a partition wall. If 3m isn't enough for your layout, verify cable extension options with the specific main unit you're pairing — not all F Series main units support extended cable runs.
- Wide Dynamic Range (WDR): Built-in WDR means the sensor handles scenes with mixed lighting — a brightly lit window alongside a shadowed interior — without blowing out highlights or losing shadow detail. For retail floors with large storefront windows, or lobbies with mixed natural and artificial light, this prevents the washed-out frames that make footage forensically useless.
- White Housing: The F1035-E ships in a white finish, appropriate for flush-ceiling or recessed installations in commercial interiors. The sensor's small physical footprint and neutral color make it unobtrusive in retail, hospitality, and office environments where aesthetic impact matters alongside coverage requirements.
- Designed for AXIS F Series Main Units: Compatibility is locked to the Axis F Series ecosystem — this sensor won't function as a standalone camera. Pairing it with the correct main unit is mandatory; verify the specific main unit supports the F1035-E sensor before ordering. The main unit determines compression codec, frame rate, analytics capability, and network integration, so spec the main unit carefully for your VMS and storage requirements.
Integration & Compatibility
The F1035-E is purpose-built for the AXIS F Series modular system. The sensor unit itself carries no onboard intelligence — it delivers raw optical data to the paired main unit, which handles H.264/H.265 encoding (depending on main unit model), ONVIF profile support, and VMS integration with platforms like Milestone XProtect, Genetec Security Center, and AXIS Camera Station. When planning your deployment, confirm your chosen main unit's channel count if you intend to run multiple F Series sensors from a single main unit, as some main units support up to four sensors simultaneously.
For camera selection and coverage planning, note that fisheye dewarping is handled either in the main unit or in the VMS — not in the sensor. If your VMS doesn't support fisheye dewarping natively, plan for a client-side dewarp license or choose a main unit with onboard dewarping. The 194° FOV also means significant barrel distortion at the image edges in raw form; dewarped views produce usable rectilinear images for forensic purposes.
Pair this sensor with appropriate PoE network infrastructure sized for your chosen main unit's power draw — the sensor itself is passive and draws no independent power.
Frequently Asked Questions
Q: Does the Axis F1035-E (0737-001) work as a standalone camera?
A: No. The F1035-E is a sensor unit only — it requires a compatible AXIS F Series main unit to function. The main unit provides power, encoding, networking, and VMS integration. The sensor alone cannot connect to a network or record video.
Q: What is the field of view on the 0737-001?
A: The F1035-E has a 194° horizontal field of view using a fisheye lens. This exceeds a true 180° hemisphere, making it well-suited for ceiling-center or corner installations where full-room coverage from a single sensor is the goal.
Q: Which AXIS F Series main units are compatible with the F1035-E?
A: The F1035-E is designed for AXIS F Series main units as a product family. Verify compatibility with the specific main unit model (for example, the AXIS F9114 or similar) before purchasing, as Axis periodically updates the F Series lineup and not every main unit may support every sensor variant.
Q: How long is the sensor cable on the 0737-001?
A: The 0737-001 includes a 3-meter sensor cable, giving installers meaningful separation between the sensor placement point and the main unit. Check your specific main unit's documentation for maximum supported cable length if you need to extend beyond 3 meters.
Q: Does the Axis F1035-E have WDR?
A: Yes. The F1035-E includes Wide Dynamic Range (WDR), which helps the sensor capture usable detail in scenes with significant contrast between bright and dark areas — such as a retail floor with large windows alongside shadowed shelving.
Q: Can the F1035-E be used outdoors?
A: The available specifications do not confirm an IP weather rating for the F1035-E sensor unit. Consult the Axis datasheet or your pre-sales contact to confirm suitability for outdoor or wet-environment installations before deploying outside.
The 0737-001 is one of those products that solves a very specific problem elegantly: you need fisheye coverage in a location where a camera body — any camera body — simply cannot go. The F1035-E's 194° horizontal field of view from a sensor the size of a large button is what makes covert retail installs and tight ceiling-void deployments actually workable. The 3m cable is long enough for most commercial ceiling builds without requiring a junction box mid-run.
Technical Highlights:
- 194° Fisheye FOV: Exceeds a true hemisphere — from a ceiling-center mount, you can cover wall-to-wall in a medium-sized retail bay with one sensor, one license, and one cable run to the main unit.
- WDR: The built-in Wide Dynamic Range prevents the overexposed frames you'd otherwise get near storefront windows or mixed-lighting lobbies — footage stays forensically usable rather than washed out at the highlights.
- 3m Sensor Cable: Enough separation to keep the main unit in an accessible above-ceiling location while the sensor sits flush in the finished ceiling tile — cleaner install, easier maintenance access on the processing side.
Deployment Considerations:
- This sensor is passive — all codec, analytics, PoE, and network functions live in the paired AXIS F Series main unit. Spec the main unit for your VMS, storage retention, and analytics requirements; the sensor itself contributes only optics.
- Fisheye dewarping is not handled in the sensor. Confirm your VMS supports Axis fisheye dewarping natively, or budget for a dewarp license — raw 194° footage with barrel distortion is not usable for forensic review without correction.
The F1035-E is the right call for loss-prevention installations in retail environments with high ceilings and mixed lighting, or any commercial interior where a recessed, near-invisible wide-angle sensor is the only way to achieve full-room coverage without multiple camera runs.
