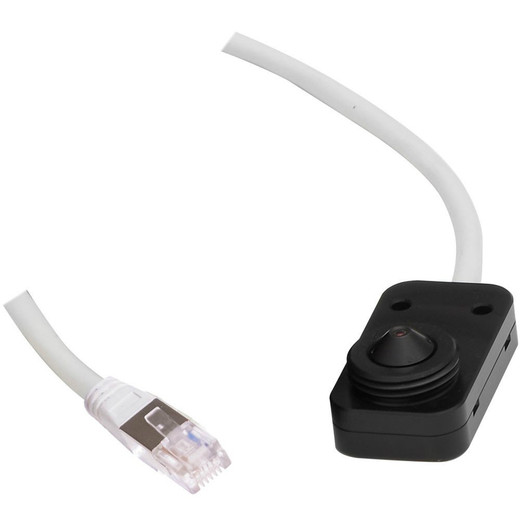

Axis 0735-001 F1025 Pinhole Sensor Unit
Overview
The Axis F1025 is a discreet 1080p pinhole sensor unit built for the AXIS F Series modular camera system — specifically the AXIS F41 Main Unit. If you need to cover a sensitive area without making surveillance obvious, the 0735-001 is the sensor to specify: a near-invisible aperture, a 92° horizontal field of view that captures a full room or corridor, and a 3-meter cable that separates the sensor from the main unit so the processing hardware can be mounted out of sight. Covered spaces include retail fitting rooms, interview rooms, reception desks, hotel lobbies, and any environment where a conventional dome or bullet would be conspicuous or tampered with.
Part of Axis's F Series sensor line, the F1025 pairs with a centralized main unit rather than housing its own processor. That means a smaller sensor head, easier concealment, and the ability to connect multiple sensors to a single unit — a real advantage in multi-angle coverage scenarios where running multiple standalone cameras isn't practical.
Key Features
- 1080p Full HD Resolution: At 1920×1080, the F1025 delivers evidence-grade detail at close-to-medium distances. For a pinhole sensor covering a retail counter or reception area, this is sufficient for facial identification and transaction detail without over-speccing the sensor for the application.
- 92° Horizontal Field of View: A 92° horizontal FOV covers a standard room width or corridor end-to-end from a single mounting point — comparable to a wide-angle fixed dome but from a completely concealed aperture. This reduces the sensor count needed to cover a defined space.
- Pinhole Lens — True Covert Form Factor: The pinhole optic presents a sub-millimeter aperture at the surface — no visible dome, no visible housing, just a small hole in a finished surface. This is the correct choice when you need surveillance that doesn't change occupant behavior or invite tampering.
- Wide Dynamic Range (WDR): Built-in WDR processing handles mixed-lighting environments — a bright window alongside a dimmer interior, for example — keeping both zones usable in the same frame. Without WDR, a pinhole sensor in a lobby or retail environment would routinely blow out backgrounds or underexpose subjects near windows.
- 3-Meter Sensor Cable: The included 3m cable separates the sensor head from the AXIS F Series main unit. This lets the active electronics sit in a ceiling void, back office, or secure enclosure while only the passive sensor aperture is exposed. Reduces both the physical footprint at the sensor point and the risk of tampering with active hardware.
- White Housing: The sensor housing is finished in white — the standard color for flush ceiling and wall integration in commercial interiors. Blends naturally into drop ceilings, drywall, and standard commercial finishes without requiring paint or custom covers.

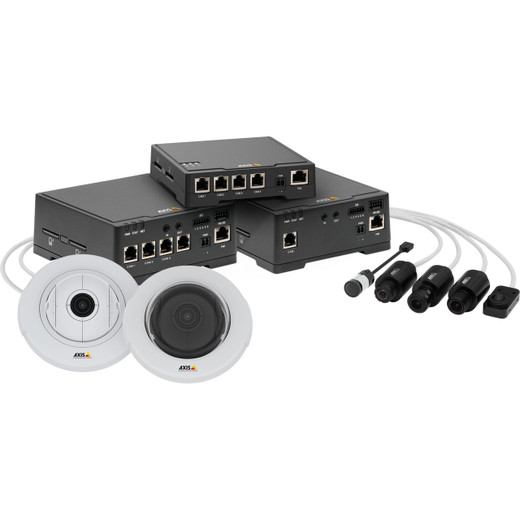

- Modular Architecture — Single Main Unit, Multiple Sensors: The F1025 connects to AXIS F Series main units including the AXIS F41. One main unit can drive multiple sensor heads across a space, reducing total system cost and centralizing configuration, recording, and management through a single network node.
Integration & Compatibility
The 0735-001 is designed specifically for the AXIS F Series Main Units and the AXIS F41 Main Unit. It does not operate standalone — a compatible main unit is required to supply power, processing, encoding, and network connectivity. Before specifying this sensor, confirm your main unit inventory and the total sensor count per unit that your installation requires.
Because the F1025 relies on the main unit for all video encoding and analytics, VMS compatibility, compression codec selection, and network protocol support are all determined by the connected main unit — not the sensor itself. Axis Camera Station and ONVIF-compatible video management systems are supported through the main unit's firmware. The sensor itself contributes optics and image capture only.
For installations involving concealed or recessed mounting in finished walls or ceilings, plan cable routing before surface completion — the 3m cable length is fixed at 0735-001 and determines how far the main unit can be from the sensor point.
Frequently Asked Questions
Q: Does the Axis F1025 (0735-001) operate as a standalone camera?
A: No. The F1025 is a sensor unit only — it requires a compatible AXIS F Series Main Unit (such as the AXIS F41) to supply power, processing, encoding, and network connectivity. It cannot record or stream independently.
Q: What is the cable length on the 0735-001, and can it be extended?
A: The 0735-001 ships with a fixed 3-meter sensor cable. Extension capability depends on the AXIS F Series main unit specifications — consult the main unit datasheet for maximum supported cable runs before planning installation.
Q: How many F1025 sensors can connect to a single AXIS F41 Main Unit?
A: The number of simultaneous sensor inputs is determined by the AXIS F41 Main Unit, not the sensor itself. Refer to the F41 datasheet for maximum channel count per unit.
Q: Does the Axis F1025 support audio input or two-way audio?
A: Audio capability is not confirmed in the available evidence for the F1025 sensor unit. Audio support, if any, would be handled by the connected AXIS F Series Main Unit — check the main unit specifications for audio I/O details.
Q: What compression codecs does the 0735-001 support?
A: Codec support (H.265, H.264, MJPEG, Zipstream) is a function of the connected AXIS F Series Main Unit, not the F1025 sensor itself. The sensor delivers raw image data to the main unit for encoding.
Q: Is the Axis F1025 rated for outdoor use?
A: An IP ingress rating for the F1025 is not confirmed in the available evidence. This sensor is designed for covert interior applications — verify environmental ratings with Axis documentation before considering any outdoor deployment.
The 0735-001 is one of those products where the spec sheet undersells the deployment value. What matters here isn't the resolution number — 1080p is table stakes — it's the combination of a 92° pinhole optic on a 3-meter separable cable feeding into the AXIS F Series architecture. That combination lets you place a camera exactly where you need coverage without placing any recognizable camera hardware there at all.
Technical Highlights:
- 92° Horizontal FOV: Wide enough to cover a standard retail counter or interview room from a single sensor point — reduces total sensor count vs. narrow-angle covert options that require overlapping coverage.
- 3-Meter Separation Cable: The fixed 3m cable is what makes the architecture work — the sensor aperture sits flush in a finished surface while the main unit with all active electronics lives in a ceiling void or back-office enclosure, completely out of reach.
- WDR on a Pinhole: Most pinhole sensors historically sacrificed WDR for form factor. Having it here matters in retail and hospitality environments where window glare and mixed artificial lighting are the norm, not the exception.
Deployment Considerations:
- Plan cable routing before surface finishing — the 3m cable is fixed on the 0735-001, so the main unit location must be within that radius of the sensor aperture. Retrofit installations in finished walls require chase planning upfront.
- This sensor contributes optics only. VMS compatibility, codec selection, analytics, and all network behavior are determined entirely by the connected AXIS F Series Main Unit — validate the main unit spec sheet for your VMS and recording requirements before ordering the sensor.
The F1025 is the right call for hotel lobbies, retail fitting rooms, reception desks, and corporate interview rooms where deterrence is not the goal and discretion is. If your site needs visible deterrence, specify a standard dome or turret instead — but for covert evidence-grade coverage in a finished interior, the F1025 on an F41 main unit is a clean, supportable solution.
