Axis 0734-001 F1025 Pinhole Sensor Unit, 12m
Overview
The Axis F1025 (0734-001) is a 1080p pinhole sensor unit designed for covert or space-constrained surveillance where a standard camera body is impractical. It connects via a 12-meter cable to an Axis F Series main unit — splitting the lens/sensor from the processing hardware so you can route the head through a ceiling tile, wall panel, or fixture while the main unit stays in a secure equipment space. If you're building a discreet monitoring layer into a retail loss-prevention setup, an executive suite, or a reception area where visible cameras would be inappropriate, the 0734-001 (often searched as 0734 001) is worth a close look.
Key Features
- 1080p Resolution: Full HD capture from a pinhole aperture — sufficient for identifying individuals at close-to-mid range in boardrooms, corridors, or retail aisles without advertising that a camera is present.
- 92° Horizontal Field of View: A wide angle for a pinhole optic. You get meaningful scene coverage — roughly the width of a standard doorway at 3 meters — without needing to reposition the sensor for every room geometry.
- Pinhole Focal Length: The lens profile keeps the sensor face nearly flush with the mounting surface. Suitable for integration into standard building fixtures, ceiling panels, or decorative housings without visible protrusion.
- WDR Support: Wide Dynamic Range processing handles mixed lighting — a window-lit lobby or a door threshold where exterior light competes with interior illumination. Usable detail in both the bright and dark zones of the same frame.
- 12m Sensor Cable: The 12-meter lead gives genuine flexibility in routing from the sensor insertion point to the main unit location — enough to cross a standard commercial room and reach a closet, ceiling plenum run, or rack-mounted main unit without extension.
- White Housing: Blends with standard drop-ceiling tiles, white wall panels, and common commercial finishes. Reduces visual conspicuousness in environments where the camera must be present but not prominent.
Integration and Compatibility

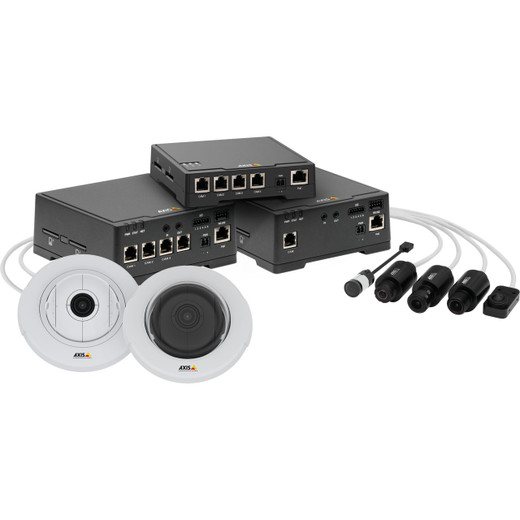

The 0734-001 requires an Axis F Series main unit — such as the AXIS F41 — to function. The main unit handles power, encoding, network connectivity, and VMS integration; the sensor unit itself carries no independent processing. This modular approach lets you place multiple sensor units around a space while centralizing all management at a single main unit. Pair the F1025 with a PoE-capable switch at the main unit end and you keep cabling simple. For VMS integration, consult your Axis Camera Station or third-party VMS compatibility guide at the main unit level — sensor unit compatibility is inherited from the main unit's support matrix. Check the covert surveillance camera category for companion sensor units with alternate focal lengths if 92° doesn't match your scene geometry.
Frequently Asked Questions
Q: Does the Axis 0734-001 work as a standalone camera?
A: No. The F1025 is a sensor unit only — it must be connected to an Axis F Series main unit (such as the AXIS F41) via its 12m cable. The main unit provides power, encoding, and network connectivity.
Q: What main units are compatible with the 0734-001?
A: The F1025 is compatible with Axis F Series main units, including the AXIS F41 Main Unit. Verify compatibility with your specific main unit model before ordering.
Q: Can the 12m cable be extended?
A: The evidence does not confirm extension cable support. Consult Axis documentation for your specific main unit to determine whether cable extension is supported before planning your installation.
Q: What is the field of view of the 0734-001?
A: 92° horizontal, delivered through a pinhole optic — wide enough for single-room coverage in most standard commercial spaces.
Q: Is the Axis F1025 suitable for outdoor use?
A: No environmental or IP rating data is available in the verified evidence for the 0734-001. It should be treated as an indoor sensor unit unless Axis documentation explicitly states otherwise.
The thing that makes the 0734-001 worth specifying — rather than just cramming a mini-dome somewhere — is the 12-meter sensor cable combined with a 92° horizontal field of view in a pinhole form factor. That combination is genuinely hard to find. Most covert sensor units either give you a narrow angle that forces precise aiming or a short cable that constrains main unit placement. The F1025 gives you room to work with on both dimensions.
Technical Highlights:
- 1080p from a pinhole aperture: Full HD resolution means the footage is evidence-usable, not just presence-detection grade — important if loss prevention or HR needs to act on what the camera captures.
- 92° horizontal FOV: Covers a meaningful room slice from a single insertion point. In a 4-meter-wide private office or retail back office, you're getting wall-to-wall coverage without repositioning.
- WDR processing: Handles the mixed-light conditions common in reception areas and lobbies — where a window or glass door creates a blown-out background — and keeps faces readable in both zones of the frame.
Deployment Considerations:
- Plan main unit placement before cutting the sensor hole — 12 meters gives flexibility, but the cable run is fixed. Map the route through ceiling plenum or wall cavity before committing to a sensor location.
- No IP or IK rating is confirmed in the available evidence. Treat this as an indoor-only unit and do not install in environments with moisture, dust ingress risk, or vandal exposure without verifying Axis environmental specs first.
The F1025 is the right call for corporate security and retail loss-prevention installs where the camera must be present but not visible — executive conference rooms, cashier back offices, and customer service counters where a dome or bullet would undermine the environment or tip off a subject.
