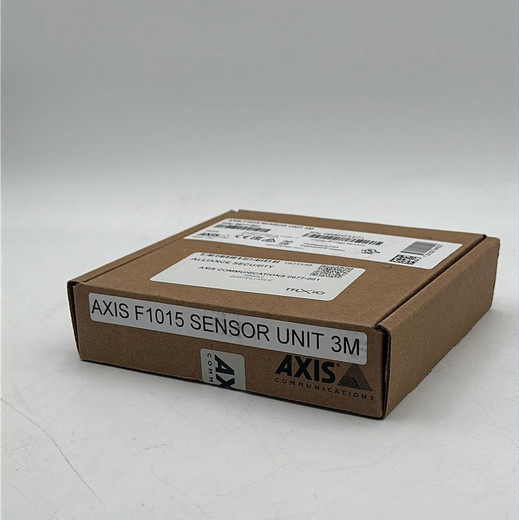

Axis 0677-001 F1015 Vari-Focal Sensor Unit, 3m
Overview

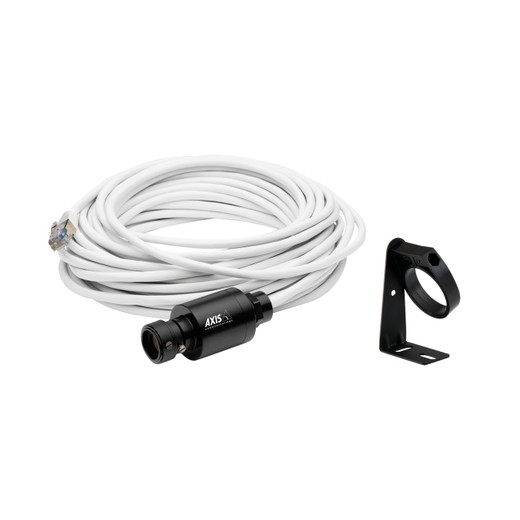

The Axis F1015 sensor unit (0677-001) is a compact, discreet imaging head designed to pair with Axis F Series main units — giving you the ability to place a camera eye precisely where you need it without committing to a full camera body at that location. If you're covering tight spots, ceiling voids, shelf edges, or recessed alcoves where a standard IP camera physically won't fit or would be visually intrusive, the F1015 is the component that solves the placement problem. The 0677-001 ships with a 3-meter cable, setting the maximum distance between the sensor head and the main unit it connects to.
This is not a standalone device — it requires a compatible AXIS F Series main unit to function. That distinction matters for budget planning and system design: the main unit handles encoding, network connectivity, power, and storage, while the F1015 contributes only the optical capture. The benefit is that one main unit can feed multiple sensor heads, keeping per-channel hardware costs down in multi-angle deployments.
Key Features
- Vari-Focal Lens (53°–108° Horizontal FOV): The adjustable field of view lets you dial in coverage at commissioning rather than committing to a fixed angle before you see the actual scene. Wide end (108°) covers a full counter or entrance; narrow end (53°) reaches further into a corridor or aisle without sacrificing too much width. That flexibility reduces the number of SKUs you need to stock for a mixed-scene deployment.
- Wide Dynamic Range (WDR): WDR processing keeps detail usable in scenes with simultaneously bright and shadowed zones — a doorway with natural light behind a subject, a retail shelf with overhead spotlights and dark recesses, or an ATM vestibule with backlit signage. Without it, you're choosing between an overexposed background or a silhouetted subject; with WDR, both zones render with recognizable detail.
- Sensor Unit Form Factor: The small physical footprint of the F1015 head is its primary deployment argument. It can be recessed into ceilings, tucked behind POS equipment, or installed in retail fixtures in a way that a dome or bullet camera cannot. Covert or near-invisible placement is achievable without custom fabrication.
- 3-Meter Cable: The included 3m cable gives enough reach to route from a sensor mounted in a tight spot back to a main unit mounted in a more accessible location — inside a fixture, above a dropped ceiling tile, or in a nearby enclosure. Measure your routing path before ordering; if you need more distance, confirm whether extension cable options are supported by your specific main unit.
- White Housing: The white finish blends into standard commercial ceiling and wall finishes without requiring paint or modification. In retail and hospitality environments where aesthetics matter to the operator, this is a real installation consideration.
- AXIS F Series Ecosystem Integration: The F1015 is purpose-built for AXIS F Series main units, which handle all encoding, network output, and recording functions. This architecture lets you run multiple sensor heads from a single main unit — useful in tight multi-angle installations such as ATMs, self-checkout lanes, or interview rooms where you need coverage from two or three angles without deploying two or three full cameras.
Integration & Compatibility
The 0677-001 connects to AXIS F Series main units via its 3m proprietary cable. The main unit determines the encoding format, frame rate, resolution output, VMS compatibility, and PoE power draw — none of those specs are set at the sensor level. Before specifying the F1015, confirm which AXIS F Series main unit you're pairing it with, and verify that the main unit supports the number of sensor heads your design requires. For PoE switch planning, budget power against the main unit spec, not the sensor unit, since the sensor draws through the main unit connection, not directly from the network.
The F1015 integrates naturally into any VMS that supports the paired AXIS F Series main unit — including AXIS Camera Station, Milestone XProtect, Genetec Security Center, and other ONVIF-compatible platforms. VMS licensing is per-main-unit channel, not per sensor head, which is an important cost factor when using multiple heads on a single main unit.
Frequently Asked Questions
Q: Does the Axis F1015 (0677-001) work as a standalone camera?
A: No. The F1015 is a sensor unit only — it has no encoding, network interface, or power input of its own. It must be connected to a compatible AXIS F Series main unit, which provides those functions.
Q: What is the cable length on the 0677-001?
A: The 0677-001 includes a 3-meter cable connecting the sensor head to the main unit. Check AXIS F Series documentation for compatible extension options if your installation requires greater separation.
Q: What field of view does the Axis F1015 provide?
A: The F1015 has a vari-focal lens with a horizontal field of view adjustable from 53° to 108°, giving you flexibility at commissioning to match the actual scene without swapping optics.
Q: How many F1015 sensor units can connect to one AXIS F Series main unit?
A: The number of sensor heads per main unit depends on the specific AXIS F Series main unit model. Refer to the main unit's datasheet to confirm the maximum supported sensor head count before designing a multi-angle deployment.
Q: Is WDR processing handled by the F1015 sensor unit or the main unit?
A: WDR is indicated as a feature of the F1015 sensor unit, meaning the optical capture includes wide dynamic range capability. The main unit handles encoding and output, but the sensor's WDR capability feeds improved raw image data into that pipeline.
Q: Does the Axis F1015 0677-001 require a separate power supply?
A: No separate power supply is needed for the sensor unit itself. Power runs through the connection to the AXIS F Series main unit, which is typically PoE-powered from your network switch. Plan your power budget against the main unit's spec sheet.
The F1015's 53°–108° vari-focal range is what separates it from fixed-FOV sensor heads in the AXIS F Series lineup — and in practice, that adjustability at commissioning saves a return trip when the scene isn't what the floor plan suggested. I've specified the 0677-001 in retail loss-prevention installs where the actual shelf height and product depth changed the usable FOV by 20 degrees from what the CAD showed. Having that range on-site to dial in means the camera actually covers what you need it to cover, not what the drawing assumed.
Technical Highlights:
- Vari-Focal 53°–108° Horizontal FOV: Covers both tight-corridor and wide-counter scenes from the same sensor SKU — reduces inventory complexity when you're stocking for a mixed-scene retail or banking deployment.
- WDR Capability: The sensor captures usable detail in high-contrast scenes. For ATM vestibules or entrance areas with exterior light bleed, this is non-negotiable — a non-WDR sensor in those environments produces exactly the silhouetted footage that's useless in a dispute.
- 3m Cable (0677-001): Three meters is enough for most in-fixture or above-tile routings, but measure before you finalize the design. The cable length is fixed on this unit — if you need 5m or more between the head and the main unit, verify extension support before spec'ing this SKU.
Deployment Considerations:
- Plan the full system BOM before ordering: the F1015 is inert without an AXIS F Series main unit. VMS licensing, encoding specs, and channel count all come from the main unit selection — the sensor unit itself appears nowhere on a VMS license count independently.
- The 3m cable is the hard constraint for placement flexibility. In deep ceiling void or long-run conduit scenarios, verify that your main unit supports the extension cable before committing to a mounting location that exceeds the native cable length.
The F1015 is the right sensor head for discreet multi-angle retail loss prevention, ATM surveillance, and self-checkout coverage — anywhere a standard camera body is physically or aesthetically impractical and you're already running an AXIS F Series main unit at the location.
