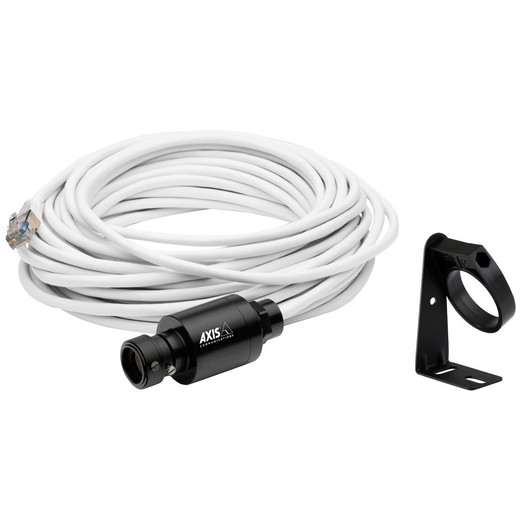

Axis 0678-001 F1015 Vari-Focal Sensor Unit with 12m Cable
Overview
The Axis 0678-001 is the F1015 Sensor Unit — a discreet, pinhole-style imaging head designed for covert or space-constrained surveillance installations where a conventional camera body simply won't fit. Part of the Axis F Series surveillance line, the F1015 connects to an AXIS F Series main unit via an included 12-meter cable, keeping all processing, recording, and network electronics in a concealed or protected location while the sensor itself occupies minimal space in the scene.
The sensor unit covers a vari-focal field of view ranging from 53° to 108°, giving integrators meaningful flexibility at install time to dial in scene coverage without changing hardware. True WDR (Wide Dynamic Range) is built in, making the F1015 useful in scenes with mixed lighting that would wash out a basic sensor. The white housing blends into standard ceiling tiles, wall panels, and retail fixtures. If you're scoping a covert surveillance camera deployment for retail loss prevention, banking environments, or any location where visible cameras create operational or aesthetic friction, the F1015 is worth serious consideration.
Key Features
- 53°–108° Vari-Focal Field of View: The adjustable FOV means you can cover a tight ATM alcove at the wide end or reach deeper into a retail aisle at the narrow end — one SKU handles multiple deployment scenarios without ordering different fixed-focal units.
- True Wide Dynamic Range (WDR): In scenes where bright daylight streams through a window while the interior is dim — think bank lobbies, retail storefronts, or reception areas — WDR preserves usable detail in both the bright and dark zones simultaneously. Without it, you're choosing between a blown-out window or a silhouetted subject.
- 12-Meter Cable Run: The 12m integrated cable gives you enough reach to route from a ceiling plenum sensor location back to a main unit mounted in a back-of-house enclosure or IT closet, keeping the electronics accessible for maintenance without exposing them in the monitored space.
- Compact Sensor Form Factor: The F1015's small footprint allows flush or near-flush mounting in locations that rule out dome or bullet cameras — inside display fixtures, behind one-way glass, or in drop ceilings where even a mini-dome would be visible.
- White Housing: The white finish integrates cleanly into standard commercial interior environments — ceiling tiles, wall panels, trim — without the visual signature of a standard surveillance camera housing.
- AXIS F Series Ecosystem: As part of the Axis F Series, the F1015 pairs with compatible main units including the AXIS F41, centralizing video processing, storage management, and network connectivity. One main unit can drive multiple sensor heads, which keeps per-sensor cost down when you need coverage at several points in a space.
Integration & Compatibility
The 0678-001 is designed specifically for use with AXIS F Series Main Units, including the AXIS F41 Main Unit. It is not a standalone network camera — it requires a compatible main unit to handle encoding, network output, and power delivery. Before specifying this sensor, confirm your main unit model against Axis's current F Series compatibility matrix, as sensor and main unit generations must match.
For installations requiring multiple viewpoints from a single network node — a common requirement in retail or banking environments — the F Series architecture lets you pair several sensor units to one main unit, reducing switch port consumption and simplifying network topology. Pair the sensor deployment plan with a managed PoE switch at the main unit location to keep cabling organized and power budgeting straightforward.
If you're working through camera placement and coverage mapping, review the camera selection guide before finalizing sensor count and field-of-view settings — the vari-focal range gives you flexibility, but scene geometry still needs to be walked before committing to mounting locations.
Frequently Asked Questions
Q: Does the Axis 0678-001 work as a standalone network camera?
A: No. The F1015 is a sensor unit only — it requires an AXIS F Series main unit (such as the AXIS F41) for power, encoding, and network connectivity. It cannot be connected directly to a switch or NVR without a compatible main unit.
Q: What field of view does the Axis F1015 sensor unit cover?
A: The F1015 offers a vari-focal field of view adjustable between 53° and 108°, giving you flexibility to tune coverage at installation time without swapping hardware.
Q: How long is the cable on the 0678-001?
A: The integrated cable is 12 meters (approximately 39 feet), allowing the sensor head to be placed at the scene while the main unit is located in a concealed or protected area nearby.
Q: Can I use the Axis 0678-001 with any AXIS F Series main unit?
A: The F1015 is confirmed compatible with AXIS F Series Main Units including the AXIS F41. Axis recommends verifying sensor-to-main-unit compatibility against the current F Series compatibility documentation before finalizing your bill of materials.
Q: Is the F1015 sensor suitable for outdoor installation?
A: The available evidence does not confirm an environmental or ingress protection rating for the 0678-001. Based on available specifications, it is best treated as an indoor sensor unit unless Axis documentation for the specific deployment environment confirms otherwise.
Q: Does the Axis F1015 support Wide Dynamic Range?
A: Yes. The F1015 includes True WDR, which helps maintain usable image detail in scenes with significant contrast between bright and dark areas — such as a window-facing lobby or a retail storefront during daylight hours.
The 0678-001 comes up regularly in environments where the brief is essentially 'get eyes in this location without anyone knowing there's a camera there.' The F1015's 53°–108° vari-focal range is the first thing I point integrators toward — that's not a minor adjustment range, it's the difference between covering a cash drawer and covering an entire checkout lane, from the same mounting point.
Technical Highlights:
- Vari-Focal FOV (53°–108°): Adjusted at the sensor head before final mounting — means you can walk the space with the sensor in hand, frame your coverage, and lock it in before committing to the cable run. Reduces revisit calls.
- True WDR: In high-contrast interior scenes — retail glass storefronts, ATM vestibules with exterior light bleed — this is what separates a usable recording from a washed-out clip. Not all sensor units in this class include it; the F1015 does.
- 12m Integrated Cable: Long enough to route through a standard ceiling plenum from sensor to main unit in most single-room deployments without extension hardware. Keep the main unit accessible; put the sensor where it needs to be.
Deployment Considerations:
- This is a dependent device — budget for an AXIS F Series main unit (the F41 is the confirmed pairing) in your BOM. The sensor alone won't appear on your network.
- The 12m cable is fixed and integrated; if your routing requires more distance, verify F Series extension options before finalizing the install plan. There is no field-replaceable cable on this unit.
The F1015 is well-suited for retail loss-prevention builds where you need discreet, adjustable-FOV coverage at POS lanes or fitting rooms, and where the F Series multi-sensor architecture lets you consolidate several viewpoints onto a single main unit and network port.
