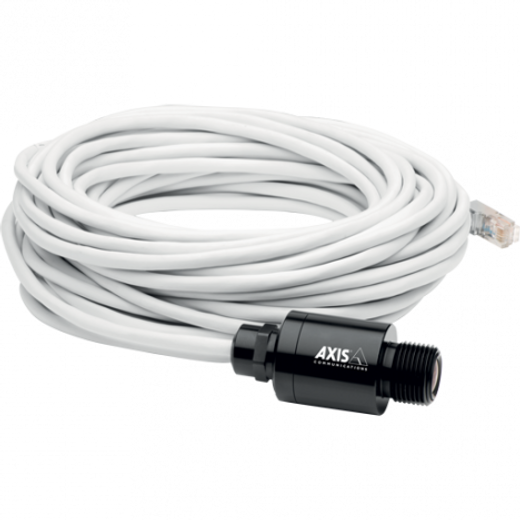

Axis 0675-001 F1005-E Sensor Unit, 3m Cable
Overview
The Axis F1005-E is a discreet sensor unit designed for covert or space-constrained surveillance installations where a full camera body simply won't fit. The 0675-001 pairs with Axis F Series main units, offloading processing and power to a centrally located controller while the sensor head itself stays compact and unobtrusive. The 3-meter cable gives you meaningful placement flexibility — enough reach to route through a wall cavity, drop ceiling, or tight counter gap without the sensor sitting right on top of the main unit.
Key Features
- 113° Horizontal Field of View: A wide 113° horizontal angle covers a full counter width, doorway, or reception desk in a single shot — fewer sensor units needed per scene compared to a narrow fixed lens, which keeps your cable and main-unit count down.
- Wide Dynamic Range (WDR): WDR processing handles scenes with mixed bright and dark zones — a window-lit lobby, a backlit entry door — delivering usable detail across the frame rather than blown highlights or crushed shadows. This matters in retail and reception environments where natural light changes throughout the day.
- 3-Meter Sensor Cable: The 3m integrated cable (0675-001 is often searched as 0675 001) gives enough slack to place the sensor at the point of interest while routing the main unit out of sight. Compared to shorter sensor options in the F Series line, the 3m variant suits installations where the main unit must be recessed or locked away.
- White Housing: The white finish blends into standard drop-ceiling tile and drywall environments, reducing visual footprint in retail, hospitality, and office deployments where aesthetic matters to the end customer.
Integration & Compatibility
The 0675-001 is engineered exclusively for use with AXIS F Series main units — it is not a standalone camera and will not operate independently. Pairing the sensor with the appropriate main unit determines the final image resolution, compression codec, frame rate, and network/analytics capabilities. If you are building out a multi-sensor installation, confirm which main unit you are targeting: the main unit's channel count and connector type dictate how many F-Series sensors you can run simultaneously. For projects requiring broader IP camera coverage, evaluate whether additional sensor units or a different form factor better fits your scene geometry. Consult your PoE switch planning around the main unit — power and network feeds terminate at the main unit, not the sensor head.
Frequently Asked Questions
Q: Does the Axis 0675-001 work as a standalone camera?
A: No. The F1005-E sensor unit requires an AXIS F Series main unit to operate. It has no independent processing, network interface, or power input.
Q: What is the field of view on the 0675-001?
A: The F1005-E provides a 113° horizontal field of view, making it well-suited for wide-angle coverage in confined spaces.
Q: What cable length does the 0675-001 include?
A: The 0675-001 includes a 3-meter integrated sensor cable, allowing flexible placement of the sensor head relative to the main unit.
Q: Does the F1005-E support Wide Dynamic Range?
A: Yes. The F1005-E includes WDR support, which helps maintain image clarity in scenes with mixed lighting conditions such as backlit entryways or window-facing counters.
Q: Which AXIS F Series main units are compatible with the 0675-001?
A: The 0675-001 is compatible with AXIS F Series main units. Verify connector compatibility and channel capacity with the specific main unit model you are deploying.
The 0675-001 is the sensor unit I reach for when the install location physically cannot accommodate a standard camera body — think ATM surrounds, point-of-sale counters, or narrow door frames where a dome or bullet would either be obstructed or visually unacceptable to the property owner. The 113° horizontal FOV is the key spec here: it means a single sensor can cover the width of a standard counter or entryway without requiring you to mount multiple units or compromise on coverage angle.
Technical Highlights:
- 113° Horizontal FOV: Wide enough to cover a full counter or doorway width in a single sensor, reducing the number of sensor heads — and cable runs — required per scene.
- WDR Support: Handles the mixed-lighting problem in retail and reception environments where you have sunlit windows adjacent to dim interior zones — you get detail in both zones rather than choosing between exposing for the bright or the dark area.
- 3m Sensor Cable: Enough reach to route through a wall cavity or ceiling void and keep the main unit out of the public-facing space entirely, which is the right approach for loss prevention and covert monitoring applications.
Deployment Considerations:
- The sensor unit is passive — all recording, compression, analytics, and network connectivity live at the main unit. Size your main unit selection around channel count and the feature set you actually need before committing to how many F1005-E sensors you deploy.
- The 3m cable is fixed and integrated; if your routing requires more distance between sensor head and main unit, this variant will not stretch. Confirm your physical installation geometry before ordering the 0675-001 versus a longer-cable F Series sensor option.
This sensor is the right fit for retail loss prevention counters, hotel front desks, and bank teller lines — anywhere the point of interest is close range, lighting is mixed, and a visible camera body would either be tampered with or aesthetically objectionable to the property.
