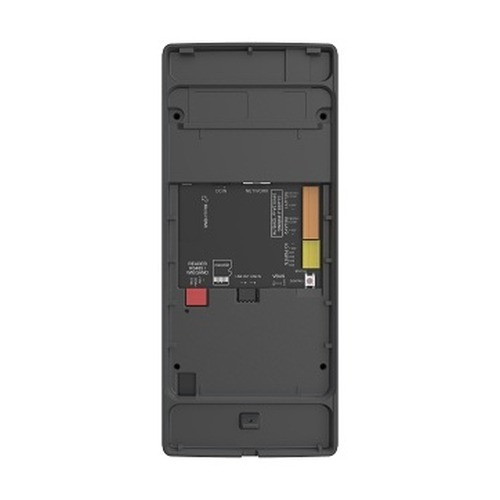

Axis A8207-VE Mk II 3MP Network Video Door Station - 02026-001

Axis 02026-001 A8207-VE Mk II 3MP Network Video Door Station

The Axis 02026-001 is a fixed network video door station engineered for commercial access points, secure facilities, and multi-tenant entry systems where visitor identification, two-way audio, and access control integration matter. Unlike analog intercoms, this IP-native unit delivers 3MP resolution video (3072×2048 at 30 fps), integrated intercom logic with echo cancellation, and wired PoE power — eliminating separate audio and power infrastructure at the door.

Key Features

• 3MP resolution at 30 fps — captures enough detail for facial identification and visitor documentation without requiring enterprise-grade bandwidth. Paired with H.264 compression, this keeps bitrate manageable on typical commercial networks (roughly 2–4 Mbps depending on scene activity).
• 180° horizontal field of view — covers the entire entry vestibule with a single camera, reducing blind spots that would normally require multiple smaller-angle lenses.
• Forensic WDR (Wide Dynamic Range) — handles mixed lighting (bright sunlight behind a visitor, dark shadows on their face) in a single frame. Critical for door stations where backlighting is unavoidable and facial recognition must work regardless of time of day.
• PoE powered (802.3af) — draws approximately 12–13W, well within standard switch power budgets. Single cable to the device means no separate 12VDC runs, no transformer boxes, cleaner installation.
• IP66 weatherproofing and IK08 vandal resistance — direct rain, hose-down, and dust won't breach the enclosure. IK08 means the lens and faceplate resist impact from blunt tools, though deliberate damage can still occur. Not rated for submersion or continuous spray from point-blank.
• Operating range -40°C to +55°C — deployable in cold-climate outdoor entries and high-heat loading dock areas without environmental enclosures.
• H.264 compression — mature codec, universally supported by NVRs and VMS platforms. No playback or integration surprises.
• Integrated intercom with echo cancellation and noise suppression — two-way audio conversation without annoying feedback loop or wind rumble. Built-in speaker and microphone; no external audio module required.
• 4 alarm inputs and 2 relay outputs — connect door sensors, motion detectors, or emergency buttons to the door station. Trigger the door buzzer, lock/unlock relay, or alarm logic directly from the device's I/O without a separate access control panel.
• HDMI output — monitor the live video locally on a small display or reception area monitor. Useful for sites where an on-site attendant needs immediate visual feedback without waiting for network connectivity.
• microSD card slot — local backup storage (supports up to 512GB). Useful when network recording fails or for temporary offline operation, though not a replacement for centralized NVR recording.
• 0.55 lux minimum illumination — captures recognizable video in dim lighting (hallway at dusk, covered awning). Not zero-lux, so supplemental lighting or IR illumination improves performance in complete darkness.

Integration and Compatibility

This door station is ONVIF Profile S/T compatible, meaning it integrates with any standard NVR or VMS platform that supports ONVIF streaming. Milestone XProtect, Axis Camera Station, Genetec, and similar platforms recognize the device automatically. The dual relay outputs and alarm inputs are accessible via standard ONVIF events and configuration APIs, enabling integration into access control systems and automation workflows.

Power planning is straightforward: confirm your PoE switch has available power budget (roughly 15W per port accounting for cable loss). For remote deployments, verify network cabling runs under 100 meters to maintain power delivery; longer runs require PoE extenders or midspan injectors.

When to Choose a Different Model

If you need integrated face-matching analytics or built-in facial recognition, the 02026-001 does not include that — you'll need to run video to a separate analytics engine or NVR with deep-learning modules. If the entry requires 360° coverage (e.g., parking garage ramp), the 180° lens is insufficient; consider a dome camera with a wider angle or a separate device above the door. If you're replacing an existing analog intercom and the building has no network infrastructure at the door, budget for Ethernet cabling or wireless AP deployment.

Frequently Asked Questions

Q: Does the 02026-001 support H.265 compression?

A: No. The A8207-VE Mk II uses H.264 compression. H.264 is fully supported on all current NVRs and is a reasonable tradeoff given the 3MP resolution and fixed lens.

Q: Can I use the 02026-001 indoors instead of outdoors?

A: Yes. The IP66 and IK08 ratings are overbuilt for interior use, but there's no penalty for that. It integrates identically indoors, and the robust enclosure provides extra protection in high-traffic areas.

Q: Does the 02026-001 have infrared night vision?

A: No. There is no built-in IR illumination. In complete darkness, you'll need supplemental lighting (e.g., LED strips around the door frame or an external IR emitter paired with a separate IR-sensitive camera).

Q: Can I trigger the door lock directly from the door station?

A: The device has 2 relay outputs (dry contacts) that can switch 12VDC or 24VDC lock coils. Wiring is straightforward: connect the relay output to the lock control circuit. No external controller required.

Q: What network bandwidth should I plan for?

A: Roughly 2–4 Mbps upstream for continuous 3MP 30 fps H.264 recording, depending on scene complexity and encoder bitrate settings. The device adapts dynamically, so bandwidth usage drops in static scenes (e.g., empty hallway). Plan for at least 5 Mbps to account for overhead and headroom.

Q: Is the 02026-001 NDAA-compliant?

A: Confirm with the manufacturer or distributor. Axis publishes NDAA status separately; not all door stations carry explicit compliance certification.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02026-001 is a mature, well-specified door station for organizations that need reliable visitor identification and access control integration without overengineering. The combination of 3MP resolution, 180° horizontal coverage, and Forensic WDR directly addresses the critical requirement of capturing usable facial and clothing details at a building entrance, regardless of lighting conditions. PoE power and ONVIF networking eliminate installation friction — no separate power runs, no proprietary software lock-in.

Technical Highlights:

• Forensic WDR and 0.55 lux floor: Delivers clear video in backlit scenarios (visitor framed against bright doors or windows) and dim entryways. Without WDR, you'd get either blown-out highlights or crushed shadows, making facial recognition impossible.
• 180° field of view: Eliminates the need for a second camera to cover the sides of an entry vestibule. Reduces hardware cost, cabling, and NVR channel count.
• H.264 compression and 3MP resolution: Balances detail (enough pixels for ID) against bitrate (2–4 Mbps keeps it off shared company network links). Older analog CCTV systems delivering equivalent detail would require four or more cameras.
• Dual relays and 4 alarm inputs: Sufficient for basic access control workflows (door sensor trigger, buzzer output, emergency button logic) without external controller hardware.
• -40°C to +55°C operating range: Eliminates the need for heated enclosures in cold climates or thermal management in high-heat environments — significantly reduces installation cost.

Deployment Considerations:

• No native IR illumination: supplemental lighting is mandatory for after-hours identification. Plan for external LED or verify the site has sufficient ambient light year-round.
• HDMI output is local only: useful for on-site attendants, but adds physical cabling if reception is distant. Consider whether you actually need it or can rely on network monitoring instead.
• microSD backup is a nice-to-have, not a replacement for centralized NVR recording. Treat it as failover, not primary storage.
• The 180° lens is wide, but not 360°. If the entry is a multi-direction corridor or parking ramp, a second camera or dome is needed.

The 02026-001 is the right choice for secure building entrances, access-controlled facilities, and multi-tenant properties where you need clear facial capture, two-way audio, and relay-driven lock integration in a single wired device. It's not the answer for long-range monitoring (think loading docks 50+ meters from the building) or sites requiring deep-learning face matching — those need camera placement and analytics strategy beyond a door station.
