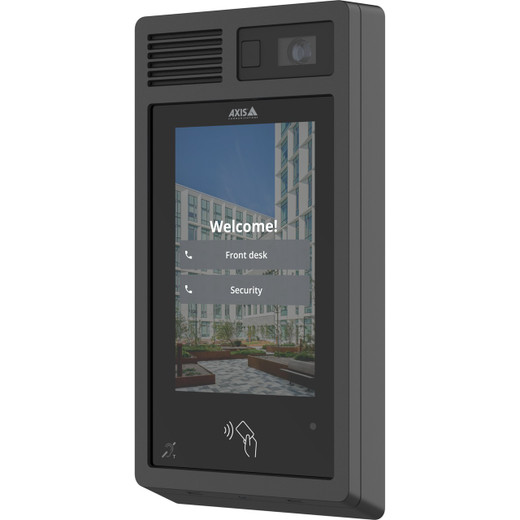

Axis I8307-VE 8MP Network Video Intercom
The Axis I8307-VE is a ruggedized network video intercom engineered for secure, intelligent access control and two-way communication. Built on an 8MP 4K Ultra HD sensor with a 2.2mm wide-angle lens, it delivers exceptional clarity across a 150° horizontal × 112° vertical field of view. The device combines high-resolution imaging, voice communications, RFID/PIN authentication, and a capacitive touchscreen interface into a single IP-based platform—ideal for enterprise entrances, visitor management, and physical security integration.
Key Features
- 8MP 4K Ultra HD Imaging – 3840×2160 resolution with 2.2mm lens and 150° × 112° FOV
- Forensic WDR up to 120dB – Exceptional detail in high-contrast or backlit conditions
- Low-Light Color Operation – Maintains color fidelity in challenging lighting
- Dual Microphones with Echo Cancellation – Crystal-clear two-way audio with noise reduction
- 85dB SPL Built-in Speaker – Intelligible communication in outdoor or noisy environments
- 7-inch Capacitive Touchscreen – Customizable display for buttons, maps, messages, and status
- Multi-Factor Authentication – RFID reader (125kHz & 13.56MHz) plus metal keypad for PIN entry
- IP66 & IK08 Rated – Sealed against weather and vandal-resistant
- -30°C to +55°C Operating Range – Reliable performance across extreme climates
Technical Specifications
Imaging & Optics: The I8307-VE sensor captures 8MP resolution with Forensic WDR technology supporting up to ~120dB dynamic range, ensuring readable detail in shadows and bright areas simultaneously. Low-light color operation preserves color information when ambient levels drop, reducing reliance on infrared modes.
Audio & Intercom: Dual built-in microphones coupled with echo cancellation and noise reduction enable clear hands-free conversation. The 85dB SPL speaker ensures messages reach users in outdoor or high-ambient-noise settings without requiring external amplification.
Security & Access Control: The RFID reader supports both 125kHz (legacy) and 13.56MHz (modern) card technologies, accommodating existing badge infrastructure. A ruggedized metal keypad enables PIN or code-based access. All communications and credential data are protected by Axis Edge Vault with FIPS 140-3 Level 3 certified key storage.
Connectivity & Integration: PoE simplifies deployment with single-cable power and data delivery. Support for ONVIF (Profiles G, M, S, T), SIP for VoIP intercom functionality, and Axis VAPIX API enables seamless integration into video management systems, access control platforms, and custom applications.
Durability: IP66 weather sealing and IK08 impact resistance withstand outdoor installation and intentional tampering. Extended temperature range (-30°C to +55°C) maintains performance in arctic and desert deployments.
Applications
- Corporate and enterprise main entrances with visitor screening
- Multi-tenant buildings and gated communities
- Healthcare facilities requiring access control and audio communication
- Logistics and warehouse entry points
- Government and high-security facilities
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The I8307-VE stands out as a unified access and communication device for organizations seeking to replace separate intercoms, cameras, and access readers. The 8MP resolution with 120dB WDR ensures forensic-quality facial capture—critical for access logs and incident review. Integration of both 125kHz and 13.56MHz RFID standards future-proofs deployments against badge technology changes.
FIPS 140-3 Level 3 certification addresses regulatory requirements in finance, healthcare, and government sectors where credential security is mandated. PoE power reduces infrastructure costs and simplifies installation in retrofit scenarios. For environments where visual verification, voice communication, and access control must operate as a single intelligent system, the I8307-VE delivers enterprise-grade reliability without vendor lock-in, thanks to broad ONVIF and SIP support.
