Sensor Type:
1/3" CMOS (RGB)
NUMBER OF EFFECTIVE PIXELS:
Approx. 2.1 million pixels
SCANNING METHOD:
Progressive Scan
Lens Type:
20x optical zoom lens with auto focus
Focal Length:
4.7 (W) - 94mm (T)
F-NUMBER:
F1.6 (W) - F3.5 (T)
Digital Zoom:
20x
HORIZONTAL VIEWING ANGLE (16:
9):60.4° (W) - 3.2° (T)
VERTICAL VIEWING ANGLE (16:
9):35.1° (W) - 1.8° (T)
DAY/NIGHT MODE:
Yes
I/R CUT FILTER:
Automatically removable infrared-cut filter
MIN. SUBJECT ILLUMINATION - DAY (COLOR:
0.05 lux (F1.6, shutter speed 1/30 sec.)
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME:
0.003 lux (F1.6, shutter speed 1/30 sec.)
FOCUS MODES:
Auto/One-shot AF/Manual/Fixed at infinity
SHOOTING DISTANCE:
0.3m-infinity (W), 1.0m-infinity (T)
SHUTTER SPEED:
1 - 1/16000 sec.
EXPOSURE MODES:
Auto, Shutter-priority AE, Aperture-priority AE, Manual
WHITE BALANCE:
Auto, Manual, Daylight, Fluorescent, Halogen
METERING MODES:
Center-Weighted/Average/Spot
EXPOSURE COMPENSATION:
9 levels
SMART SHADE CONTROL:
Auto / Manual / Disable
HAZE COMPENSATION:
Auto/Manual/Disable
AGC LIMIT:
6 levels
IMAGE STABILIZER:
Digital (2 Levels)
MOTION ADAPTIVE NOISE REDUCTION:
Available
CLEAR IR:
N/A
PAN ANGLE RANGE:
340° (±170°)
TILT ANGLE RANGE:
100° (ceiling-mounted position: -90° - +10°)
ROTATION ANGLE RANGE:
N/A
IR ILLUMINATION RANGE:
N/A
MOVING SPEED:
Pan: Max. 150°/sec.
VIDEO COMPRESSION METHOD:
JPEG, H.264
VIDEO SIZE:
1920x1080, 1280x720, 960x540
VIDEO QUALITY:
JPEG, H.264: 10 levels
Frame Rate:
JPEG: 0.1 - 30 fps; H.264: 1/2/3/5/6/10/15/30 fps
MAXIMUM FRAME RATE:
1920 x 1080: 30 fps
ADSR:
8 windows
I-FRAME INTERVAL:
0.5/1/1.5/2/3/4/5 sec.
SIMULTANEOUS CLIENT ACCESS:
Max. 30 Clients + 1 Admin Client; - H.264: Max. 10 Clients
CAMERA CONTROL:
Administrator, Authorized user, Guest user
ACCESS CONTROL:
User/host auth (IPv4, IPv6)
ENCRYPTED COMMUNICATIONS:
SSL/TLS, IPsec (Auto Key Exchange/Manual)
IEEE 802.1X:
EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
ONVIF Version:
ONVIF Profile S
IPv4 PROTOCOL:
TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, NTP, RTSP, ONVIF
IPv6 PROTOCOL:
TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary)
AUTO IP (LINK-LOCAL:
Yes
AUDIO COMPRESSION METHOD:
G.711 µ-law (64 kbps)
AUDIO COMMUNICATION METHOD:
Full-duplex/half-duplex; RTP
AUDIO FILE PLAYBACK:
Available
PRIVACY MASK:
Max 8 masks, 9 color options
VIEW RESTRICTION:
Available
PRESETS:
Max. 64 positions
INTELLIGENT FUNCTION - VIDEO:
Moving object detection, intrusion detection
INTELLIGENT FUNCTION - AUDIO:
Volume Detection & Scream Detection
INTELLIGENT FUNCTION - DETECTION SETTINGS:
Max. 15
EVENT TRIGGER TYPE:
External Device, Timer, Video, Audio, Day/Night
IMAGE UPLOAD:
FTP/HTTP/SMTP (e-mail)
EVENT NOTIFICATION:
HTTP/SMTP (e-mail)
ON-SCREEN DISPLAY:
Available
IMAGE CROPPING FUNCTION:
Digital PTZ; 9 crop sizes 128x72–640x480
ENHANCED DIGITAL ZOOM:
Available
DAYLIGHT SAVINGS TIME:
Available
CUSTOM SETTINGS:
Available
NETWORK TERMINAL:
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
AUDIO INPUT TERMINAL:
3.5mm mini-jack monaural
AUDIO OUTPUT TERMINAL:
3.5mm mini-jack mono x1
EXTERNAL DEVICE I/O TERMINAL:
Input x 2, Output x 2
MEMORY CARD TYPE:
SD/SDHC/SDXC Compatible
MEMORY CARD RECORDED CONTENT:
Log, Video (Event, Manual, ONVIF, Timer, Upload)
MEMORY CARD RECORDED FRAME RATE:
Log, Video (Event, Manual, ONVIF, Timer, Upload)
TEMPERATURE:
Temperature: -10°C - +50°C (+14°F - +122°F)
HUMIDITY:
Humidity: 5% - 85% RH (without condensation)
Power Type:
PoE power supply via LAN connector (IEEE802.3af compliant)
AC ADAPTER:
PA-V18(100 - 240 V AC) (sold separately)
EXTERNAL POWER SOURCE:
24 V AC/12 V DC
WITH PoE:
Max. approx. 9.2 W
WITH AC ADAPTER:
9.9W @ 100VAC, 9.4W @ 240VAC
WITH 12VDC:
Max. approx. 8.6 W
WITH 24VAC:
Max. approx. 8.8 W
Dimensions:
(F x H) F132 x 155mm (F5.20 x 6.10 in.)

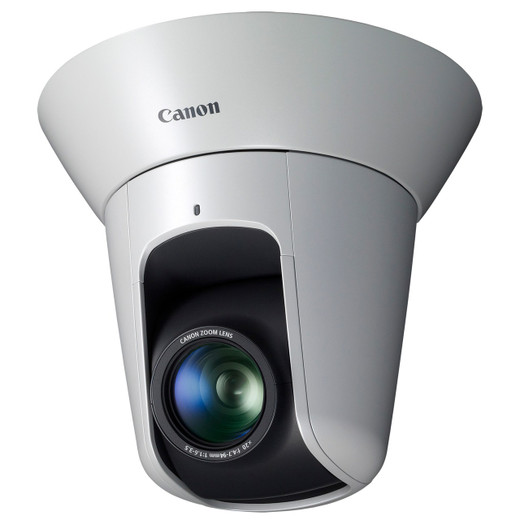

MOUNTING POSITION:
Ceiling mount
Weight:
Approx. 1140 g (2.52 lb.)
Outdoor Ready:
No
VANDAL RESISTANT:
No
Housing Color:
White
