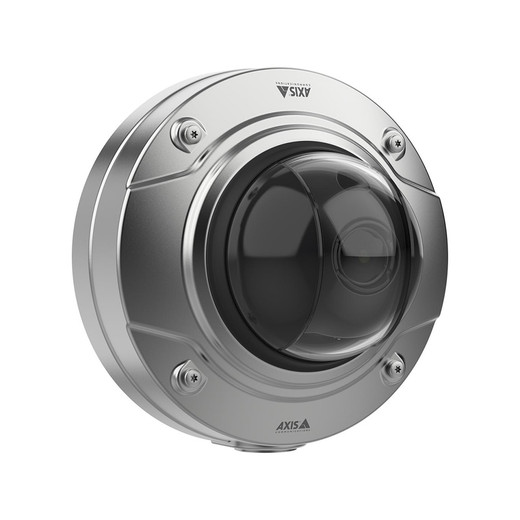

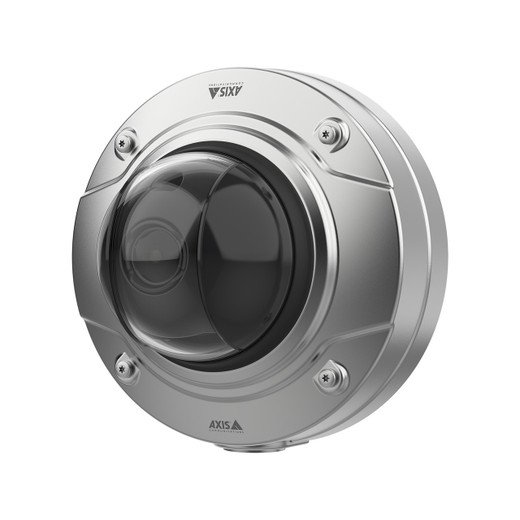

Axis 02463-001 Q3538-SLVE 8MP Outdoor PTZ Dome Camera
The Axis 02463-001 is a professional-grade 8-megapixel outdoor pan-tilt-zoom dome camera built for high-stakes surveillance in exposed, high-vandalism environments. This is a primary-coverage workhorse: 8MP resolution translates to 4K-grade detail across a 103.4° base field of view, motorized zoom reaches 2.08× optical magnification, and the dome housing meets IK10+ vandal resistance plus IP66 weatherproofing. If your deployment requires wide-area monitoring with the ability to zoom into forensic detail without repositioning hardware, this model eliminates the tradeoff.
Key Features
- 8MP Resolution (4K output): Captures 3840 × 2160 pixel imagery, delivering forensic-grade detail across expansive outdoor coverage areas—meaningful on perimeter walls and parking structures where re-framing the camera is impractical or unsafe.
- Pan-Tilt-Zoom with 6.2–12.9mm Motorized Lens: 2.08× optical zoom with 103.4° to 48.6° horizontal field-of-view range provides both broad situational awareness and targeted identification within a single unit. Remote focus and zoom control eliminate field visits for framing adjustments.
- Lightfinder 2.0 Low-Light Performance: Achieves 0.07 lux color sensitivity in near-darkness—that is, meaningful color identification in twilight or heavy cloud cover without shifting to grayscale. Integrated IR illumination (850nm) extends coverage into complete darkness; no separate IR projector required.
- Forensic WDR (Wide Dynamic Range): Balances overexposed and underexposed regions simultaneously—critical in mixed-light scenes such as parking lot perimeters with outdoor lighting, or loading docks with high-bay and exterior sunlight competing in the same frame. Prevents washout on bright surfaces and shadow loss in recessed areas.
- IK10+ Vandal Resistance & IP66 Weatherproofing: Dome housing withstands impact stress and direct rain, dust, and salt spray. Deploy in open-air, unattended locations without enclosure. PVC-free construction aligns with environmental compliance.
- 50/60 fps Frame Rate: Smooth motion capture at full 8MP resolution enables tracking of fast-moving subjects and cleaner forensic playback. Ensures no subject blur in high-activity zones (loading docks, vehicle entry points).
- H.264 with Zipstream Compression: Reduces bandwidth and storage footprint 30–50% compared to standard H.264 by adaptive bitrate encoding—a real efficiency gain on 24/7 multi-camera NVR systems where storage cost scales linearly with camera count.
- PoE Powered (Class 4, ~13W typical): Single Ethernet cable handles both power and video; no separate power supply or conduit needed. Standard 802.3af PoE switch ports handle the load without strain on power budgets.
- Operating Temperature –50°C to +55°C: Survives extreme climates: cold storage facilities, desert sites, northern infrastructure. No thermal management or climate control required.
- Axis Edge Vault Security: Signed firmware and secure boot prevent unauthorized modifications or compromised firmware installation—essential on critical infrastructure and regulated deployments.
Integration & Compatibility
The 02463-001 supports ONVIF Profile S (and PTZ extensions), ensuring compatibility with enterprise video management platforms including Milestone XProtect, Axis Camera Station, and third-party NVR systems. Remote pan-tilt-zoom is accessible via standard API calls, allowing integration into automation workflows and operator consoles. H.264 codec ensures playback on legacy and modern network video recorders without transcoding overhead.
For deployments requiring multiple outdoor outdoor IP cameras, confirm your PoE switch provides sufficient power headroom (typical 13W per unit) and aggregate bandwidth capacity on the network core. High frame rate and 8MP resolution demand approximately 4–6 Mbps per stream depending on scene complexity and compression settings.
When to Choose a Different Model
If your deployment requires fixed wide-angle coverage with no zoom requirement, consider a lower-megapixel fixed-lens outdoor dome—the motorized mechanism and optical zoom add cost and complexity you won't use. If you need day-night monochrome operation in extreme low-light without IR infrastructure, the Lightfinder 2.0 color sensitivity (0.07 lux) is an advantage; if you operate in absolute darkness and IR isn't available, thermal variants exist but are a separate family. If your facility is temperature-controlled and interior-only, the extreme temperature rating and outdoor durability are over-spec.
Typical Deployments
Perimeter fencing, parking structures, loading dock and gate monitoring, transportation hubs, critical infrastructure (power, water, communications), retail loss-prevention across large outdoor lots, campus surveillance, and equipment yards where wide situational awareness plus detail zoom reduces blind spots and re-positioning burden on operations teams.
Frequently Asked Questions
Q: Does the Axis 02463-001 integrate with Axis Companion and Axis Camera Station?
A: Yes. The Q3538-SLVE supports ONVIF Profile S with PTZ extensions and is compatible with Axis Camera Station as well as third-party VMS platforms. PTZ control is available via the native integration or ONVIF API.
Q: What is the actual IR illumination range in complete darkness?
A: The integrated IR is optimized for approximately 40–50 meters in darkness depending on scene reflectance and lens zoom position. Refer to the manufacturer datasheet for detailed IR distance curves at specific zoom levels and aperture settings.
Q: Can I mount the Q3538-SLVE on a wall, or is it ceiling-only?
A: The dome housing supports ceiling, wall, and pendant mounting via standard adapters. Confirm mounting orientation does not obstruct the zoom motor or create condensation pockets in the dome.
Q: What is the warranty period on the 02463-001?
A: Specific warranty terms are available from the specialty distributor or manufacturer. Standard Axis products carry a 3-year limited hardware warranty; verify details with your reseller.
Q: How does Zipstream compression affect video quality compared to standard H.264?
A: Zipstream applies adaptive bitrate encoding—it maintains full quality in high-motion and high-detail regions while reducing bitrate in static or low-detail areas. Storage savings of 30–50% are typical with negligible perceptual quality loss on 8MP archive footage.
Q: Is the Axis 02463-001 NDAA Section 889 compliant?
A: Compliance status depends on your organization's procurement requirements and applicable restrictions. Contact the manufacturer or your specialty distributor for official compliance certification.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis Q3538-SLVE (02463-001) occupies a well-justified position in Axis's premium outdoor PTZ lineup. The 8MP sensor paired with 2.08× optical zoom and Lightfinder 2.0 delivers a practical balance: you get enough resolution for forensic identification without over-speccing on megapixels (which would waste storage), and the color low-light capability (0.07 lux) means you're not forced into thermal or pure IR for twilight-hour detail capture. The 103.4° base field of view combined with motorized zoom flexibility solves a real operator pain point—wide situational awareness without repositioning hardware.
Technical Highlights:
- Lightfinder 2.0 at 0.07 lux: Delivers meaningful color detail in near-darkness. Compare this to standard CMOS sensors (typically 0.3–1 lux for grayscale color), and you're gaining 4–14× more sensitivity in twilight and heavy overcast conditions. Critical for perimeter monitoring where dusk-to-midnight is high-risk.
- Forensic WDR balancing: The simultaneous exposure adjustment prevents the classic parking-lot problem: bright overhead lighting washing out license plates while shadows under vehicles go black. You avoid the storage cost of discarding frames or re-shooting.
- Zipstream + H.264 codec: The adaptive bitrate compression typically cuts storage 30–50% versus constant-bitrate H.264. On a 30-camera deployment recording 24/7, that's a meaningful difference in NVR capacity and backup bandwidth.
- IK10+ + IP66 durability: The combination means you deploy without protective housing in open perimeter, loading docks, or exposed infrastructure—one less point of failure and lower installed cost versus enclosed cabinets.
Deployment Considerations:
- The motorized zoom mechanism adds moving parts and potential service points compared to fixed-lens alternatives. Confirm your maintenance plan covers zoom motor inspection and lubrication in high-salt or sandy environments.
- At 13W typical power draw, confirm your PoE switch has adequate power budget. A 24-port 95W PoE switch supports roughly 7–8 units at rated maximum; oversized deployments need PoE+ or scheduled rotation.
- The 50/60 fps frame rate at full 8MP resolution consumes approximately 4–6 Mbps depending on scene complexity. On congested networks, reduce fps or resolution to manage aggregate bandwidth on the core switch.
- Operating temperature range to –50°C is genuine; thermal stress cycling in extreme cold can affect the dome seal. Inspect gaskets seasonally in arctic installations.
Position the 02463-001 for perimeter and critical-infrastructure deployments where you cannot reposition equipment and require both broad awareness and detail zoom. Parking structures, gate monitors, and loading docks are textbook applications. If your deployment is temperature-controlled interior or doesn't require zoom, step down to a fixed-lens 8MP outdoor dome and recapture budget.
