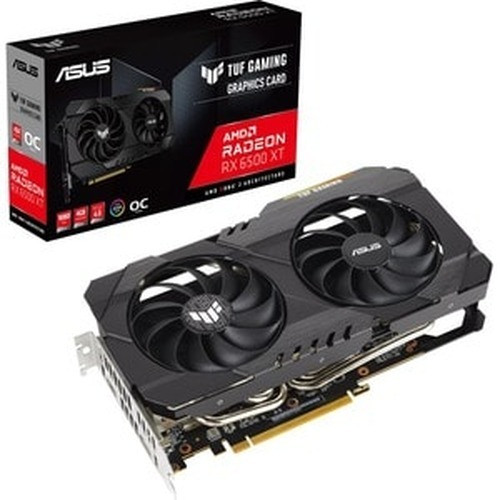

ASUS TUFRX6500XTO4GGAMING Radeon RX 6500 XT OC AMD Rdna 2

ASUS TUFRX6500XTO4GGAMING Radeon RX 6500 XT OC Gaming Graphics Card

Overview

The ASUS TUFRX6500XTO4GGAMING is a factory-overclocked Radeon RX 6500 XT graphics card built on AMD's RDNA 2 architecture, delivering a 2825 MHz boost clock in both OC and Gaming modes with 4 GB of GDDR6 memory on a 64-bit bus. If you're deploying a compact workstation for video wall rendering, multi-monitor security operator consoles, or light GPU-accelerated video analytics workloads, this card slots into the entry-to-mid bracket without demanding a high-wattage power supply or a full-length slot footprint. The PCIe 4.0 x16 interface keeps data throughput from becoming a bottleneck in modern platform builds.

Key Features

• 2825 MHz Boost Clock (OC Mode): Both OC and Gaming profiles run at 2825 MHz — ASUS ships this card with the overclock already applied, so you get the performance headroom without touching any software tuning. For video wall controllers or operator stations running decoded H.265 streams, that clock headroom matters when scene complexity spikes.
• 4 GB GDDR6 at 18 Gbit/s: The 18 Gbit/s data rate partially offsets the narrow 64-bit memory bus — you're not bandwidth-constrained on 1080p or standard 1440p tasks, but this is a real ceiling if you plan to run multiple 4K decode pipelines simultaneously. Plan your workload accordingly.
• PCIe 4.0 x16 Interface: Generation 4 connectivity doubles the available bandwidth over PCIe 3.0 — relevant in surveillance and analytics servers where CPU-to-GPU data movement is frequent. The card is backward-compatible with PCIe 3.0 slots, though at reduced bandwidth.
• 8K Maximum Resolution (7680 x 4320): Supports up to 7680×4320 output across connected displays. For operator consoles driving large-format monitors or video wall segments, the output pipeline isn't the constraint — your display and content pipeline is.
• HDMI 2.1 Output: A single HDMI 2.1 port supports 4K at 120 Hz or 8K at 30 Hz uncompressed — useful when the downstream display or capture device requires high-refresh or high-resolution HDMI specifically (many large-format commercial displays are HDMI-primary).
• DisplayPort 1.4a Output: The single DP 1.4a port supports Display Stream Compression for high-refresh 4K and 8K scenarios. Combined with HDMI 2.1, this card drives up to two displays simultaneously — confirm your monitor count before specifying this card in a multi-head console build.
• AMD RDNA 2 Architecture with 1024 Stream Processors: RDNA 2 brings hardware-accelerated ray tracing and improved compute efficiency over previous AMD generations. For security integrators, the practical takeaway is better H.265/HEVC decode efficiency and support for AMD's hardware video engine — reducing CPU load on decode-heavy recording workstations.
• Crossfire Support: Multi-GPU Crossfire is listed as supported — though in practice, most security and surveillance software stacks do not leverage multi-GPU rendering. Note this as available but unlikely to be exercised in typical operator station deployments.

Integration & Compatibility

The TUFRX6500XTO4GGAMING installs into any PCIe x16 4.0 or 3.0 slot. With a 64-bit memory bus and 4 GB GDDR6 frame buffer, it's well-suited for single or dual-monitor operator consoles, video wall segment drivers, and light GPU-compute tasks. Maximum two simultaneous displays is a hard limit — if your console requires three or more outputs, specify a higher-tier card in the Radeon RX 6000 series. The card does not include an integrated TV tuner. For network video recorder workstations or analytics servers that offload decode to GPU, verify your VMS vendor's AMD GPU compatibility list before deploying — most enterprise VMS platforms support AMD via DirectX or OpenCL paths. Pair with a managed network switch when building out the broader surveillance infrastructure this card's workstation will connect to. Browse the full ASUS hardware catalog for complementary components. For guidance on matching GPU capability to recording and analytics workloads, consult a surveillance camera and system planning resource before finalizing your BOM.

Frequently Asked Questions

Q: How many monitors can the ASUS TUFRX6500XTO4GGAMING drive simultaneously?

A: The TUFRX6500XTO4GGAMING supports a maximum of two displays at once — one via HDMI 2.1 and one via DisplayPort 1.4a. If your operator console or video wall requires three or more outputs, you'll need a higher-tier card.

Q: What PCIe slot does the TUFRX6500XTO4GGAMING require?

A: It uses a PCIe x16 4.0 interface. The card is backward-compatible with PCIe 3.0 x16 slots at reduced bandwidth. Confirm your motherboard's slot generation before ordering.

Q: Is 4 GB of VRAM enough for surveillance or video analytics workloads?

A: For single or dual-monitor operator consoles decoding standard HD or 1080p streams, 4 GB GDDR6 is sufficient. For simultaneous multi-stream 4K decode or GPU-accelerated deep learning analytics, the 4 GB frame buffer and 64-bit bus may become a bottleneck — evaluate higher-VRAM options in that case.

Q: Does the TUFRX6500XTO4GGAMING support 8K output?

A: Yes — the card supports a maximum resolution of 7680×4320 (8K). HDMI 2.1 can carry 8K at 30 Hz; DisplayPort 1.4a supports 8K via Display Stream Compression. The downstream display must also support the target resolution and refresh rate.

Q: What is the memory type and speed on the TUFRX6500XTO4GGAMING?

A: The card uses 4 GB of GDDR6 memory with a data transfer rate of 18 Gbit/s on a 64-bit bus. This delivers strong bandwidth efficiency for the memory capacity, though the bus width is narrower than higher-tier cards in the RX 6000 family.

Q: Does this card support multi-GPU configurations?

A: AMD Crossfire is listed as supported. However, most surveillance, VMS, and security workstation software stacks do not leverage multi-GPU rendering — Crossfire support is unlikely to provide a practical benefit in typical security deployments.

Ted Perry

The TUFRX6500XTO4GGAMING runs a factory-set 2825 MHz boost clock in both OC and Gaming profiles — ASUS has already done the tuning, so what ships is what you get in production. For integrators spec'ing operator workstations or video wall controllers, that predictability matters more than a tweakable headroom you'll never exercise in a security operations environment.

Technical Highlights:

• GDDR6 at 18 Gbit/s: The 64-bit bus is narrow, but the 18 Gbit/s transfer rate extracts close to the maximum available bandwidth for that bus width — adequate for dual-monitor 1080p or 1440p decode workloads without frame buffer pressure.
• PCIe 4.0 x16: Generation 4 doubles the host interface bandwidth over PCIe 3.0, reducing transfer latency when a surveillance server is moving decoded frame data between CPU and GPU repeatedly — relevant in analytics-adjacent builds.
• HDMI 2.1 + DP 1.4a: Two output types, two displays maximum. HDMI 2.1 handles commercial large-format displays that are HDMI-primary; DP 1.4a covers high-refresh professional monitors. Both outputs at spec — no active adapter required for standard deployments.

Deployment Considerations:

• Two-display maximum is a hard limit of the silicon — not a driver or firmware issue. Verify total monitor count in your console design before this card gets specced into a multi-head build; adding a second card for additional outputs requires motherboard slot availability and OS multi-GPU support.
• The 4 GB GDDR6 frame buffer on a 64-bit bus is the primary constraint for future-proofing: if your VMS roadmap includes GPU-accelerated AI analytics or simultaneous 4K stream decode beyond two channels, budget for a higher-VRAM card now rather than retrofitting later.

Best fit for dual-monitor security operator consoles, compact video wall segment drivers, and decode-assist workstations in environments where PCIe 4.0 platform investment is already in place and display count stays at two.
