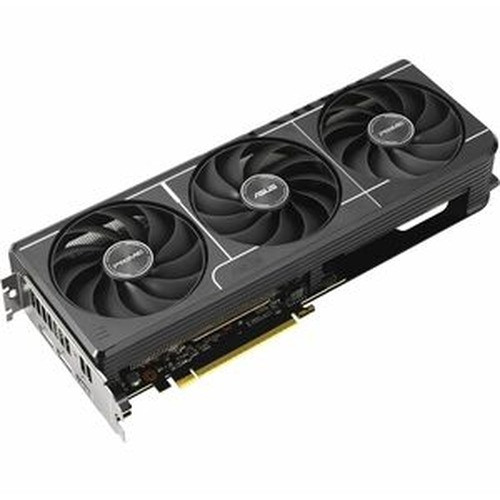

ASUS PRIME-RX9060XT-O8G Prime Radeon RX 9060 XT 8GB GDDR6 OC Edition Graphics Card (PCIe 5.0

ASUS PRIME-RX9060XT-O8G Radeon RX 9060 XT 8GB GDDR6 OC Graphics Card

The ASUS PRIME-RX9060XT-O8G puts AMD's Radeon RX 9060 XT GPU on a well-engineered, factory-overclocked board aimed at workstation builders, video wall operators, and integrators running GPU-accelerated analytics or multi-display surveillance decode workloads. With 8 GB of GDDR6 memory on a 128-bit bus running at 20 Gbit/s, and a boost clock pushed to 3310 MHz out of the box, this card handles demanding frame-buffer tasks without the power envelope of higher-tier discrete GPUs. The 2.5-slot form factor keeps it compatible with most mid-tower and rack-mount workstation chassis without sacrificing airflow margin.

Key Features

• AMD Radeon RX 9060 XT at 3310 MHz Boost: The OC Edition factory overclock delivers higher sustained throughput than reference-clocked RX 9060 XT boards — relevant when running real-time decode on multiple high-resolution streams simultaneously. No manual BIOS tuning required to reach this headroom.
• 8 GB GDDR6 at 20 Gbit/s on a 128-bit Bus: 8 GB of frame buffer gives enough headroom for multi-monitor desktop environments and GPU-assisted video analytics pipelines. The 20 Gbit/s data rate on a 128-bit interface keeps latency low on texture-heavy or decode-heavy workloads — tighter than DDR-based alternatives at this price tier.
• 2048 Stream Processors: The RX 9060 XT's compute unit count (2048 stream processors) makes this card viable for parallel processing tasks such as GPU-accelerated AI inference at the edge, transcoding pipelines, or compute shaders in visualization software — without reaching for a full-fat workstation GPU.
• PCIe 5.0 Interface: PCIe 5.0 x16 connectivity means full bandwidth headroom on current-generation platforms. The card is backward-compatible with PCIe 4.0 and 3.0 slots, so it slots into existing workstation hardware without a motherboard refresh — though you won't recover PCIe 5.0 bandwidth on older slots.
• Triple-Display Output — Up to 7680 × 4320: Two DisplayPort 2.1a and one HDMI 2.1b output support up to three simultaneous displays. DisplayPort 2.1a delivers enough bandwidth for 8K at 60 Hz or 4K at 240 Hz — useful for high-density video wall configurations or operator workstations running multiple 4K monitors. HDMI 2.1b handles AV connectivity to large-format displays without an adapter.
• Dual Ball Bearing Axial Tech Fans: Ball bearings outlast sleeve bearings in continuous-duty environments — relevant for always-on decode or analytics workstations running 24/7. The Axial Tech fan design directs airflow through the heatsink more efficiently than standard blower-style coolers, keeping junction temperatures lower under sustained load.
• Dual BIOS: A physical switch lets you toggle between performance and quiet BIOS profiles without software. This is a meaningful operational feature for deployments where noise floor matters (control rooms, NOCs) — switch to the quiet profile and the fans run conservatively without affecting core functionality.
• ASUS GPU Guard: A reinforced PCIe slot bracket reduces the mechanical stress of a 3.27 lb card in vertical installations — a real concern in rack-mount workstations or chassis that see vibration or frequent transport.
• 2.5-Slot Design at 15.94 × 9.17 × 3.48 in: At just over 2.5 slots wide, this card fits standard ATX and most SFF workstation chassis without blocking adjacent expansion slots. Confirm slot clearance against your chassis spec sheet before ordering — 15.94 inches of card length requires a full-length PCIe bay.

Integration and Compatibility

The PRIME-RX9060XT-O8G targets workstation graphics builds on AMD Ryzen and Intel Core platforms with PCIe 5.0 or 4.0 motherboards. It integrates with standard desktop and workstation components including ATX and E-ATX boards. For surveillance and security operations center deployments, pair this card with a capable operator workstation running a multi-channel VMS client — the 8 GB frame buffer and triple-display output make it a functional decode and display card for medium-density camera grids. Integrators building video wall or NOC workstations will find the dual DP 2.1a outputs particularly useful for tiling high-resolution feeds across large-format panels. Review your power supply headroom before deployment: confirm your PSU has the required PCIe power connectors and sufficient wattage for this GPU combined with your CPU and storage load.

Frequently Asked Questions

Q: What PCIe slot does the ASUS PRIME-RX9060XT-O8G require, and is it backward compatible?

A: The PRIME-RX9060XT-O8G uses a PCIe 5.0 x16 interface. It is backward compatible with PCIe 4.0 and 3.0 motherboard slots — the card will function in older boards, but bandwidth is limited to that slot's generation. For full PCIe 5.0 throughput, use a current-generation platform.

Q: How many monitors can I connect to the ASUS PRIME-RX9060XT-O8G simultaneously?

A: Up to three displays simultaneously — two via DisplayPort 2.1a and one via HDMI 2.1b. Maximum supported resolution is 7680 × 4320 (8K). DisplayPort 2.1a supports 4K at 240 Hz or 8K at 60 Hz per output.

Q: What are the physical dimensions of the ASUS PRIME-RX9060XT-O8G?

A: The card measures 15.94 × 9.17 × 3.48 inches (L × W × H) and occupies 2.5 expansion slots. Verify that your chassis supports a full-length card (15.94 in) before ordering.

Q: Does the ASUS PRIME-RX9060XT-O8G support parallel processing workloads?

A: The RX 9060 XT's 2048 stream processors support GPU compute tasks via AMD's compute stack. CUDA is not supported — this is an AMD GPU. Workloads requiring CUDA must use an NVIDIA-based card instead.

Q: What is the boost clock speed on the ASUS PRIME-RX9060XT-O8G OC Edition?

A: The factory overclock pushes the boost clock to 3310 MHz out of the box, above the reference Radeon RX 9060 XT specification, without requiring manual tuning.

Eden Phillips

When evaluating the PRIME-RX9060XT-O8G for a security operations center workstation build, the spec that stands out is the dual DisplayPort 2.1a outputs paired with a 3310 MHz factory boost clock — that combination means you can drive two 4K monitors at high refresh rates off a single card while the GPU simultaneously handles decode overhead from a multi-channel VMS client, without throttling under sustained load.

Technical Highlights:

• 8 GB GDDR6 at 20 Gbit/s: Provides enough frame buffer for triple-display workstation environments and GPU-assisted decode pipelines without hitting memory ceiling on moderate camera grids — a threshold where 4 GB alternatives start dropping frames under VMS load.
• 2048 Stream Processors, RX 9060 XT Architecture: AMD's compute stack on this silicon supports parallel GPU workloads, making the card usable for edge AI inference or transcoding tasks in addition to display output — without the power draw of a professional workstation GPU.
• Dual BIOS with Physical Switch: The ability to swap between performance and quiet profiles via a physical toggle — not software — is operationally meaningful in control rooms where ambient noise matters. No driver reinstall, no BIOS flash risk.

Deployment Considerations:

• At 15.94 inches card length and 3.27 lb, physically verify chassis clearance and bracket support before deployment — the GPU Guard helps, but long heavy cards in rack-mount workstations with vibration need positive retention beyond the PCIe slot latch.
• CUDA is not supported — this is an AMD Radeon product. If your VMS vendor's GPU-acceleration pipeline requires CUDA (common with certain NVIDIA-only analytics engines), this card will not qualify regardless of its compute specs.

The PRIME-RX9060XT-O8G is a strong fit for NOC and security operations workstations where the operator needs three simultaneous 4K outputs, the platform is PCIe 5.0-capable, and the analytics stack is AMD-compatible or display-decode-only.
