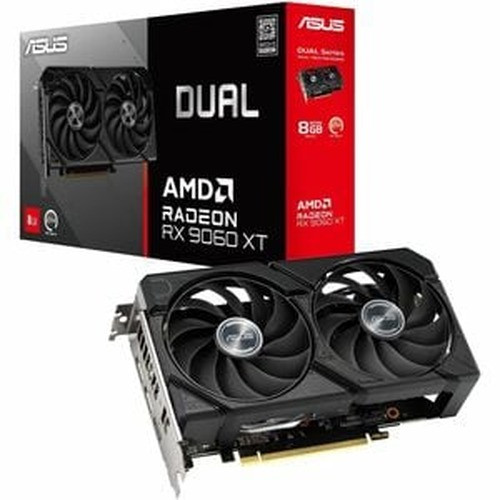

ASUS DUAL-RX9060XT-8G Dual Fan Radeon RX 9060 XT 8GB GDDR6 Graphics Card
Overview
The ASUS DUAL-RX9060XT-8G puts AMD's Radeon RX 9060 XT GPU on a practical, dual-fan 2.5-slot board aimed squarely at workstation builds, video wall controllers, and GPU-accelerated decode servers where you need solid throughput without occupying three slots or requiring supplemental cooling infrastructure. With 2048 stream processors, 8GB of GDDR6 running a 128-bit bus at 20 Gbit/s, and a PCIe 5.0 x16 interface, this card slots into current-generation server and workstation platforms and delivers meaningful headroom for multi-stream video decode, graphics card rendering pipelines, and up to three simultaneous 8K-capable displays. If your deployment involves a ASUS compute hardware stack and you need a mid-range AMD option with modern display output support, this is worth a close look.
Key Features
- AMD Radeon RX 9060 XT GPU — 2048 Stream Processors: The 9060 XT sits in AMD's current mid-range tier with 2048 shader processors. For video surveillance decode workloads or GPU-accelerated video management software rendering, that compute density handles parallel stream processing without the power and cost premium of the top-tier cards. Note: CUDA is not supported — this is an AMD architecture. Workflows locked to NVIDIA CUDA must look elsewhere.
- Boost Clock 3130 MHz (OC Mode: 3150 MHz): The rated boost of 3130 MHz in standard mode, rising to 3150 MHz in OC mode, means the card sustains high single-thread throughput when the workload demands it — relevant for display output refresh and decode latency in real-time monitoring applications. The 20 MHz OC headroom is modest but gives integrators a validated overclock without voiding the operating envelope.
- 8GB GDDR6 on a 128-Bit Bus at 20 Gbit/s: Eight gigabytes of frame buffer is the practical floor for multi-display workstation use. The 128-bit bus at 20 Gbit/s delivers sufficient memory bandwidth for 4K and 8K display pipelines — you won't hit a memory wall managing three 4K outputs simultaneously. If your VMS or analytics platform caches large frame buffers GPU-side, 8GB gives reasonable headroom before you'd need to step up to a higher-memory SKU.
- PCIe 5.0 Interface — Future-Ready Slot Compatibility: PCIe 5.0 x16 provides double the bandwidth of PCIe 4.0, meaning this card won't bottleneck on the host bus even in high-throughput decode scenarios. It also runs in PCIe 4.0 and 3.0 slots (backward compatible by spec), so it can drop into older workstation chassis without a platform upgrade — though full bandwidth is only realized on PCIe 5.0 hosts.
- 1x HDMI 2.1b + 2x DisplayPort 2.1a — Up to 8K @ 60Hz: Three display outputs supporting up to 7680×4320 resolution means this card can drive a full 8K video wall tile, three independent 4K monitors, or a mixed control-room display layout from a single slot. HDMI 2.1b and DisplayPort 2.1a are the current-generation standards — compatible with the latest professional displays and capture devices without adapter chains.
- Axial-Tech Dual Fan + 0dB Technology: The Axial-Tech fan design uses a smaller hub and longer blades versus standard barrel fans, moving more air at lower RPM. The 0dB feature stops the fans entirely at low load — relevant in open-office security operations centers where fan noise accumulates across multiple workstations. Under full GPU load, the fans spin up; at idle or light decode, the card runs silently.
- 2.5-Slot Form Factor — 8.60 × 14.50 × 2.80 in: At 2.5 slots wide and 14.50 inches long, this card fits standard full-length ATX cases and most workstation chassis without occupying the third PCIe slot. Verify your chassis has at least 14.5 inches of card clearance and 2.5 slots of vertical clearance before ordering — some compact workstation towers cap at 12 inches.
- OC Mode Base Clock 2550 MHz: The OC mode exposes a higher base clock (2550 MHz) alongside the 3150 MHz boost, giving the GPU more sustained throughput in thermally stable environments. This is a validated operating mode, not an unsupported overclock — useful for integrators running sustained compute workloads rather than bursty gaming-style loads.
Integration and Compatibility
The DUAL-RX9060XT-8G connects via PCIe 5.0 and is compatible with PCIe 4.0 and 3.0 motherboards at reduced bandwidth. The card supports up to three displays simultaneously across its HDMI 2.1b and two DisplayPort 2.1a outputs — suitable for multi-monitor security operations center setups, NVR decode workstations, or command-and-control display walls. AMD's driver stack supports Windows and Linux environments; confirm your VMS or analytics platform's GPU decode API (DirectX, Vulkan, OpenCL) against AMD's driver compatibility matrix before deployment. CUDA-dependent software stacks are not compatible — this card runs AMD's RDNA architecture, not NVIDIA's. Weight is 2.30 lb; the board is manufactured in China (Country of Origin: CN).
Frequently Asked Questions
Q: Does the ASUS DUAL-RX9060XT-8G support CUDA for AI-based video analytics?
A: No. The DUAL-RX9060XT-8G is based on AMD's Radeon RX 9060 XT (RDNA architecture) and does not support NVIDIA CUDA. If your analytics platform requires CUDA, you need an NVIDIA GPU. AMD's OpenCL and Vulkan compute APIs are supported on this card.
Q: How many monitors can the DUAL-RX9060XT-8G drive simultaneously?
A: Up to three displays simultaneously — one via HDMI 2.1b and two via DisplayPort 2.1a. Maximum supported resolution per output is 7680×4320 (8K).
Q: Will this card fit in a standard workstation or tower chassis?
A: The card measures 8.60 × 14.50 × 2.80 inches and occupies 2.5 expansion slots. Verify your chassis supports at least 14.5 inches of card length and 2.5 slot clearance. Most full-size ATX towers and standard workstation cases will accommodate it, but compact or small-form-factor cases may not.
Q: Is the DUAL-RX9060XT-8G backward compatible with PCIe 4.0 and 3.0 motherboards?
A: Yes. PCIe is backward compatible by specification. The card will operate in PCIe 4.0 and 3.0 x16 slots at reduced bandwidth. Full PCIe 5.0 bandwidth is only available on a PCIe 5.0-capable motherboard.
Q: What is the difference between standard mode and OC mode on this card?
A: In standard mode, the GPU boosts to 3130 MHz. In OC mode, the base clock rises to 2550 MHz and the boost increases to 3150 MHz — a validated higher-performance operating profile for sustained workloads. The 20 MHz boost difference is modest; the more meaningful change is the higher sustained base clock in OC mode.
Q: Does the 0dB fan technology mean the card is always silent?
A: Only at low load. The Axial-Tech fans stop completely when GPU temperatures are low (idle, light compute tasks). Under full load — sustained video decode, multi-display rendering — the fans spin up normally. In a multi-workstation operations center, this reduces ambient noise meaningfully during monitoring-only shifts.
The DUAL-RX9060XT-8G is a pragmatic mid-range AMD pick for integrators standing up GPU-decode workstations or multi-display security operations consoles. The 2048 stream processors and 3130 MHz boost clock give you meaningful parallel compute for multi-stream decode without the slot footprint or power overhead of a top-tier card — and the 2.5-slot design keeps the adjacent PCIe lane open for a capture card or additional NIC in dense workstation builds.
Technical Highlights:
- PCIe 5.0 Interface: Double the host bus bandwidth of PCIe 4.0 — won't bottleneck on high-throughput video decode pipelines, and backward compatible with PCIe 4.0/3.0 slots if you're retrofitting older workstation hardware.
- 8GB GDDR6 at 20 Gbit/s on 128-bit bus: Sufficient frame buffer for three simultaneous 4K display outputs or one 8K feed without memory pressure. If your VMS caches frame data GPU-side, 8GB is the workable floor — step up to a higher-memory SKU if your analytics pipeline routinely holds large inference batches in VRAM.
- HDMI 2.1b + 2x DisplayPort 2.1a, up to 7680×4320: Three current-gen outputs from a single card — drives a full 8K video wall tile, three independent 4K monitors, or a mixed-resolution SOC layout without adapters or daisy-chaining.
Deployment Considerations:
- At 14.50 inches in length, confirm chassis card clearance before ordering — compact workstation towers and short-depth rackmount cases frequently cap at 12 inches and won't physically accommodate this board.
- CUDA is explicitly not supported. Any analytics or AI inference platform that requires NVIDIA CUDA — a common dependency in newer deep-learning-based VMS plugins — is incompatible with this card. Audit your software stack before committing to AMD on this deployment.
The DUAL-RX9060XT-8G fits best in security operations center workstation builds where the software stack runs on AMD-compatible APIs (OpenCL, Vulkan, DirectX) and the priority is three-display output capability with low idle noise — particularly in open-plan SOC environments where the 0dB fan mode keeps ambient acoustic levels manageable across a row of analyst stations.
