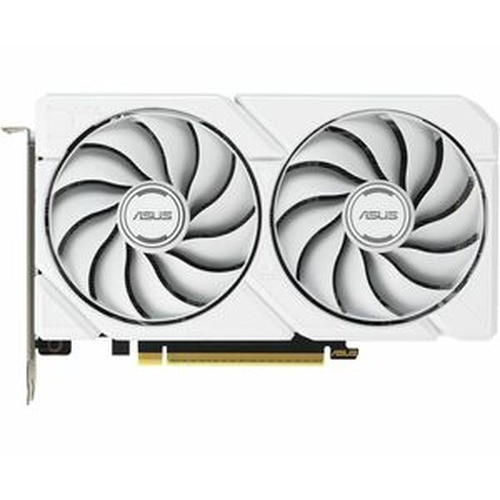

ASUS DUAL-RX9060XT-16G-WHITE Dual Radeon RX 9060 XT 16GB GDDR6 White Edition Graphics Card
Overview
The ASUS DUAL-RX9060XT-16G-WHITE is a discrete AMD Radeon RX 9060 XT graphics card built around a 16GB GDDR6 frame buffer and a PCIe 5.0 interface — the combination that matters when you are provisioning a workstation or compute node that needs to handle GPU-accelerated workloads, high-resolution display output, or intensive video decode at scale. The White Edition aesthetic is purpose-built for system integrators and enterprise buyers speccing light-theme chassis, but the internals are the same production silicon as the standard Dual variant. The 2.5-slot form factor keeps the card physically compact enough for dense tower and short-depth rack-mounted workstations without sacrificing the thermal headroom the Axial-tech fan stack delivers.
This card drives up to three simultaneous displays, a practical requirement in command-and-control rooms, security operations centers, and multi-monitor analyst workstations. The single HDMI 2.1b port and dual DisplayPort 2.1a outputs cover every current panel standard — you are not forced into adapters for 4K or high-refresh-rate monitors on any port.
Key Features
- 16GB GDDR6 at 20 Gbit/s: The 16GB pool means GPU-resident datasets — large video streams, multi-channel decode buffers, or analytics model weights — do not page out to system RAM under load. At 20 Gbit/s data transfer rate, the memory bus keeps the GPU fed even on bandwidth-hungry workloads. For deployments running parallel video transcoding or multi-stream real-time decode, this is the spec that prevents frame drops and stutter.
- PCIe 5.0 Interface: PCIe 5.0 doubles the slot bandwidth available to PCIe 4.0, eliminating the bus as a bottleneck when the host CPU is feeding large DMA transfers. In a workstation running simultaneous high-bitrate capture and GPU decode, the extra headroom keeps the pipeline clear. Backwards-compatible with PCIe 4.0 and 3.0 slots — the card installs without issue in current-generation or previous-generation platforms.
- Boost Clock 3250 MHz (OC Mode) / 2620 MHz (Gaming Mode): Two distinct operating profiles let you match power draw and thermal output to the deployment environment. Gaming mode at 2620 MHz is the right setting for always-on workstation use where sustained thermals matter more than peak throughput. OC mode at 3250 MHz is available for burst workloads where you need maximum GPU throughput for a defined processing window.
- ASUS Axial-tech Dual-Fan Cooling, 0dB Technology: The two Axial-tech fans use a smaller hub and longer blades to increase airflow for a given RPM — relevant in workstations that sit in occupied spaces where fan noise is a concern. The 0dB feature stops both fans completely at low loads, which matters in environments like quiet control rooms or office-adjacent server closets. Under full load the fans spin up proportionally; under light or idle workloads they are silent.
- 2.5-Slot Design, 14.33 x 8.54 x 2.60 in: At 2.5 slots wide, the DUAL-RX9060XT-16G-WHITE occupies less lateral space than a full 3-slot cooler, preserving an adjacent PCIe slot for a capture card, RAID controller, or network adapter in integration builds. Verify your chassis has at least 8.54 inches of clearance from the rear bracket to any obstruction — a frequent miss on short-depth workstations.
- Three-Display Output — HDMI 2.1b + 2x DisplayPort 2.1a: HDMI 2.1b supports the full bandwidth spec for 4K@144Hz or 8K output, while DisplayPort 2.1a handles ultra-high-resolution multi-monitor walls without downscaling. Driving three independent displays from a single card eliminates the need for a secondary GPU in multi-monitor SOC or analyst desk deployments, reducing power draw and driver complexity.
- AMD Radeon RX 9060 XT GPU, No CUDA: This card is built on AMD silicon — it runs ROCm for GPU-compute workloads, not CUDA. If your deployment pipeline depends on CUDA-specific libraries (NVIDIA-only frameworks, certain analytics SDKs), this card is not the correct fit. For workloads that are AMD ROCm-compatible or display-only, the RX 9060 XT performs without restriction.
Integration and Compatibility
The DUAL-RX9060XT-16G-WHITE installs into any PCIe 5.0 or PCIe 4.0 x16 slot. The 2.5-slot cooler requires standard full-height bracket clearance. At 2.40 lb, the card is well within normal chassis slot-support tolerances, but confirm GPU support brackets are present in any chassis that will be moved or rack-transported. The card ships with AMD drivers and is compatible with standard Windows and Linux driver stacks via AMD's driver portal. No proprietary software stack is required for basic display and compute operation. For graphics card selection guidance across the ASUS lineup, refer to the ASUS catalog. Integrators building GPU-accelerated workstations should also review workstation components for compatible host platforms. Deployments requiring multi-card compute arrays should confirm motherboard PCIe slot spacing before ordering — the 2.5-slot width is dense but not universally compatible with all dual-GPU configurations. For power supply sizing, consult your power supply selection guide to confirm the system PSU can support the card's TDP alongside the rest of the build.
Frequently Asked Questions
Q: Does the ASUS DUAL-RX9060XT-16G-WHITE support CUDA?
A: No. This card is built on AMD Radeon architecture and does not support CUDA. CUDA is an NVIDIA-proprietary compute platform. For AMD GPU compute, this card supports ROCm-compatible workloads.
Q: How many monitors can the DUAL-RX9060XT-16G-WHITE drive simultaneously?
A: Up to three displays simultaneously — one via HDMI 2.1b and two via DisplayPort 2.1a.
Q: Is the DUAL-RX9060XT-16G-WHITE compatible with PCIe 4.0 motherboards?
A: Yes. PCIe 5.0 is backwards-compatible with PCIe 4.0 and PCIe 3.0 slots. The card will operate at the highest speed the slot supports.
Q: What are the physical dimensions of the DUAL-RX9060XT-16G-WHITE?
A: 14.33 x 8.54 x 2.60 inches (L x W x H), 2.5-slot width, and weighs 2.40 lb.
Q: Does the 0dB fan technology mean the fans never spin?
A: The fans stop completely at low and idle load levels to reduce noise. Under moderate to heavy workloads the fans spin up automatically based on GPU temperature — this is a thermal management feature, not a passive-only design.
Q: What is the difference between OC Mode and Gaming Mode clock speeds on this card?
A: OC Mode boosts the processor to 3250 MHz for maximum peak throughput. Gaming Mode runs at 2620 MHz with better sustained thermal and power characteristics. For always-on workstation deployments, Gaming Mode is typically the more stable operating profile.
The DUAL-RX9060XT-16G-WHITE is the card I reach for when an integration build needs a capable multi-display GPU with a clean thermal profile and no slot-adjacency compromises. The 2.5-slot Axial-tech cooler is the detail that makes it practical — you keep the neighboring PCIe slot free for a capture card or 10GbE NIC, which is exactly what you need in a purpose-built SOC workstation or video management server.
Technical Highlights:
- 16GB GDDR6 at 20 Gbit/s: A 16GB frame buffer at this bandwidth rate means multi-stream video decode stays GPU-resident rather than bouncing through system RAM — measurable in sustained decode benchmarks on 8+ simultaneous 4K streams.
- PCIe 5.0 x16: Full PCIe 5.0 bandwidth eliminates the upstream bus as a constraint on high-DMA-rate workloads like real-time high-bitrate ingest combined with simultaneous GPU decode — backwards-compatible with PCIe 4.0 slots for installations on current-gen platforms.
- OC Mode 3250 MHz / Gaming Mode 2620 MHz: Two distinct clock profiles give you an explicit choice between peak burst throughput and thermally stable sustained operation — not just a marketing label, a real operating mode selection that affects long-term thermal behavior in enclosed workstation chassis.
Deployment Considerations:
- Confirm chassis depth before ordering: at 14.33 inches card length and 8.54 inches width, short-depth and small-form-factor workstations frequently have clearance conflicts — measure from the rear bracket slot to the nearest obstruction before committing the build.
- No CUDA support is the hard constraint: if any component of your software stack calls CUDA libraries directly (certain VMS analytics engines, NVIDIA-specific AI inference runtimes), this card will not run those workloads regardless of driver version — plan around ROCm-compatible alternatives or select an NVIDIA-based card instead.
For a security operations center workstation that needs three simultaneous 4K display outputs, a large GPU frame buffer for multi-stream decode, and a quiet idle profile in an occupied room, the DUAL-RX9060XT-16G-WHITE is a well-matched fit — provided the software stack is AMD/ROCm-compatible throughout.
