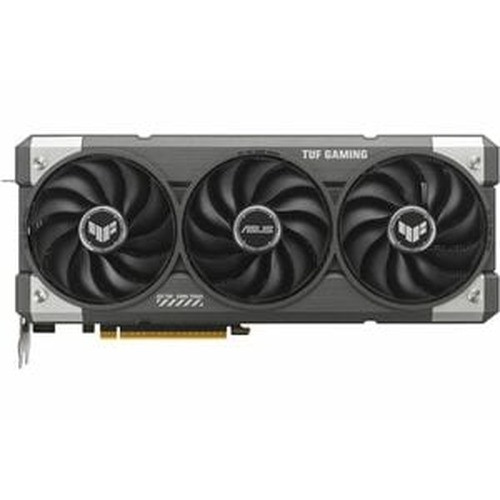

ASUS TUF-RTX5060-O8G-GAMING TUF Gaming GeForce RTX 5060 8GB GDDR7 OC Edition Gaming Graphics Card

ASUS TUF-RTX5060-O8G-GAMING GeForce RTX 5060 OC Edition Graphics Card

Overview

The TUF-RTX5060-O8G-GAMING is ASUS's military-grade take on NVIDIA's GeForce RTX 5060 — a 3840-CUDA-core card running 8GB of GDDR7 memory on a 128-bit bus, factory-overclocked to 2677 MHz in OC mode. At 16.57 inches long and occupying 3.1 expansion slots, this is a full-size card built for workstation towers and performance desktop builds where durability and sustained clock stability matter more than the thinnest possible profile. The TUF Gaming lineup's selling point has always been the component selection and board protection story — military-grade capacitors, chokes, and MOSFETs paired with a conformal PCB coating designed to resist moisture and debris over a long service life.

Key Features

• GeForce RTX 5060 GPU, 3840 CUDA Cores: NVIDIA's Blackwell-architecture RTX 5060 delivers a substantial core count increase over prior mid-range generations. 3840 CUDA cores at a 2677 MHz OC-mode boost clock means this card can handle compute-intensive workloads — including AI-accelerated rendering, real-time ray tracing, and parallel processing pipelines — without thermal throttling under sustained load.
• 8GB GDDR7 at 128-bit / 28 GB/s: GDDR7 memory delivers meaningful bandwidth improvements over GDDR6 at the same bus width. 28 GB/s keeps texture throughput high at 1440p. Note the 128-bit bus — this is a mid-range card, and bandwidth-heavy scenarios at 4K ultra settings will hit that ceiling before the GPU cores do. Plan workloads accordingly.
• PCIe 5.0 Interface: Slots into any PCIe 5.0 x16 motherboard and remains backward-compatible with PCIe 4.0 and 3.0 slots. Future-proofed for next-generation platform builds without requiring an immediate board upgrade.
• 2677 MHz OC Mode Boost Clock: Factory overclocked from NVIDIA's reference 2640 MHz spec. The 37 MHz headroom is modest but consistent — ASUS validates this clock on the production line so you're not pushing an unstable manual OC into a production build.
• Axial-Tech Fan Array: ASUS's Axial-Tech fans use a barrier ring design that increases downward air pressure and reduces turbulence compared to open-frame designs. On a card this size running sustained compute workloads, that translates to lower sustained GPU temperatures and quieter operation under load.
• Military-Grade Components + Conformal PCB Coating: TUF-grade capacitors and MOSFETs are rated for higher temperature and longer cycle life than standard board components. The conformal coating matters in environments with humidity, airborne particulates, or dust — think industrial workstations, production floor PCs, or any deployment outside a climate-controlled server room.
• 4-Display Output (1x HDMI 2.1b + 3x DisplayPort 2.1b): Drives up to four monitors simultaneously at up to 7680x4320 (8K) per output. HDMI 2.1b and DisplayPort 2.1b support high refresh rates at 4K and 8K — relevant for multi-monitor trading stations, video walls, or simulation environments where display bandwidth is the constraint.
• 3.1-Slot Footprint, 16.57 x 8.94 x 3.46 in: Verify your case before ordering — 3.1 slots means this card will block the adjacent slot in most standard ATX builds. At 4.18 lb, it also benefits from a GPU support bracket in horizontal installations to prevent PCIe slot stress over time.

Integration and Compatibility

The TUF-RTX5060-O8G-GAMING installs into any full-size ATX or EATX tower with a PCIe x16 slot (5.0, 4.0, or 3.0 — all backward-compatible) and adequate clearance for a 16.57-inch card. Confirm at least 3.1 slot clearance on your case spec sheet. The card connects to up to four displays simultaneously via the single HDMI 2.1b port and three DisplayPort 2.1b ports — relevant for multi-screen deployments. For workloads that rely on CUDA acceleration (video transcoding, AI inference, simulation), the 3840-core count and GDDR7 bandwidth make this a capable mid-range compute card. Review your PSU's PCIe power connector spec before installing — NVIDIA Blackwell-generation cards use the 16-pin (12VHPWR) connector standard; confirm your power supply includes the adapter or native connector.

Frequently Asked Questions

Q: What is the boost clock speed of the TUF-RTX5060-O8G-GAMING in OC mode?

A: In OC mode, the TUF-RTX5060-O8G-GAMING boosts to 2677 MHz. The standard boost clock is 2640 MHz — ASUS validates the OC frequency on each unit at the factory.

Q: How many monitors can the TUF-RTX5060-O8G-GAMING drive simultaneously?

A: Up to four displays simultaneously — one via HDMI 2.1b and three via DisplayPort 2.1b. Maximum supported resolution per output is 7680x4320 (8K).

Q: Is the TUF-RTX5060-O8G-GAMING compatible with PCIe 4.0 motherboards?

A: Yes. PCIe 5.0 is fully backward-compatible with PCIe 4.0 and 3.0 slots. You will not get PCIe 5.0 bandwidth on an older board, but the card installs and functions normally.

Q: What are the physical dimensions of the TUF-RTX5060-O8G-GAMING?

A: The card measures 16.57 x 8.94 x 3.46 inches (L x W x H) and weighs 4.18 lb. It occupies 3.1 expansion slots — verify case clearance before ordering.

Q: What memory type and capacity does the TUF-RTX5060-O8G-GAMING use?

A: 8GB of GDDR7 on a 128-bit memory bus, with a maximum bandwidth of 28 GB/s. GDDR7 offers improved bandwidth efficiency over GDDR6 at equivalent bus widths.

Q: What does the conformal PCB coating on the TUF-RTX5060-O8G-GAMING protect against?

A: The conformal coating is applied across the PCB to resist moisture, humidity, and airborne particulates — extending board life in environments outside tightly climate-controlled rooms, such as industrial workstations or production floor deployments.

James Everett

The TUF-RTX5060-O8G-GAMING sits in an interesting position in the RTX 5060 lineup — ASUS is shipping it at a 2677 MHz factory OC versus the reference 2640 MHz, which is a conservative validation-tested bump rather than an aggressive enthusiast push. What actually differentiates this card from cheaper RTX 5060 board designs is the component story: military-grade capacitors and chokes, plus conformal PCB coating, make this a defensible choice when the card is going into a workstation that won't be pampered.

Technical Highlights:

• 3840 CUDA Cores at 2677 MHz OC: Meaningful compute throughput for AI-accelerated inference pipelines and parallel workloads — the Blackwell architecture's CUDA density at this clock rate is a genuine step up from the prior RTX 4060 generation for sustained compute tasks.
• GDDR7 / 128-bit / 28 GB/s: GDDR7 at 128-bit is the ceiling for this tier — you get better bandwidth efficiency than GDDR6 at the same bus width, but bandwidth-saturating 4K workloads will hit the 128-bit constraint. 1440p is the sweet spot for this card's memory subsystem.
• Four-Display Output via HDMI 2.1b + 3x DP 2.1b: Driving four high-refresh 4K monitors off a single mid-range card is viable here — HDMI 2.1b and DisplayPort 2.1b both have the bandwidth headroom for it at standard refresh rates.

Deployment Considerations:

• At 16.57 inches and 3.1 slots, physically verify case compatibility before ordering — many mid-tower cases cap out at 330mm GPU length or restrict to 2-slot designs on lower PCIe slots. Check the case spec sheet, not just the GPU clearance spec.
• The 4.18 lb weight on a single PCIe x16 slot is a sag risk over time in horizontal builds — use a GPU support bracket or vertical mount to prevent mechanical stress on the slot and card edge connector.

For a production floor workstation or industrial edge compute node running AI inference or multi-screen operator interfaces, the TUF-RTX5060-O8G-GAMING's conformal coating and mil-spec component rating justify the premium over a commodity RTX 5060 board — this is not the right card for a standard office desktop where the baseline will outlive the use case anyway.
