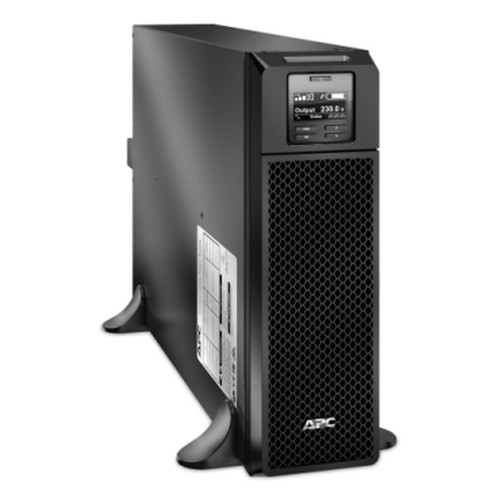

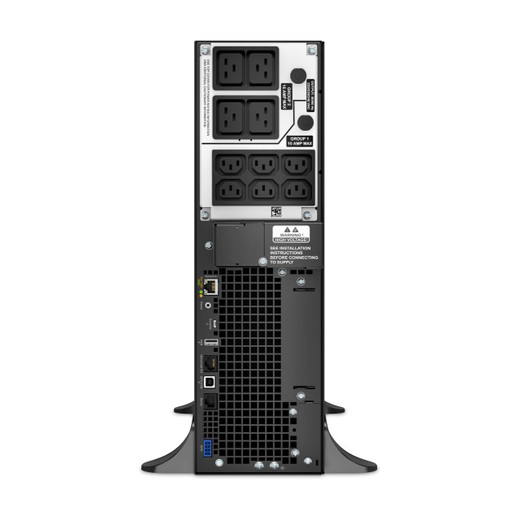

APC Smart-ups SRT 5000VA 230V - SRT5KXLI

APC by Schneider Electric SRT5KXLI Smart-UPS SRT 5000VA 230V Rack-Mount UPS

Overview

The APC by Schneider Electric SRT5KXLI is a 5000VA rack-mount uninterruptible power supply designed for 230V environments where power interruptions carry real operational risk — think server rooms, NVR stacks, access control head-ends, and VoIP infrastructure that cannot tolerate even a brief outage. At 5000VA, this unit sits in the range that handles mid-density rack loads: enough headroom for a multi-camera NVR system plus network switching gear, or a small virtualization host running security management software.

The SRT5KXLI ships in a rack-mount form factor with removable support feet, giving installers the option to deploy it freestanding on a shelf or integrate it into a standard 19-inch rack — a practical choice for equipment rooms where the layout isn't always locked in at design time.

Key Features

• 5000VA / 230V Output: Sized for mid-density commercial rack loads — enough capacity to protect an NVR, PoE switch, and access control server simultaneously without running the unit near its ceiling. Operating close to rated capacity degrades runtime; the 5000VA headroom keeps real-world loads in a sensible range.
• Lead-Acid Battery Chemistry: Sealed lead-acid batteries are field-replaceable without specialized tooling and are widely available through commercial supply channels, which matters for a device expected to hold its position in a rack for years. No proprietary chemistry means battery swap logistics stay simple.
• 230V Input and Output: Designed specifically for 230V single-phase infrastructure — the standard for commercial and industrial installations outside North America, and for 230V-wired North American equipment rooms. Verify your load equipment matches 230V before deployment; this is not a dual-voltage or auto-ranging unit based on available evidence.
• Rack-Mount Form Factor with Removable Feet: The included removable support feet give you two deployment modes — tower (freestanding) or rack. For integrators who rough-in UPS placement before the rack layout is finalized, this flexibility avoids the cost of a separate tower-to-rack conversion kit.
• Network Management Ready: The SRT series is built around APC's SmartSlot architecture, which accepts optional network management cards for remote monitoring, scheduled shutdowns, and integration with DCIM or SNMP-based building management systems. The SRT5KXLI fits that ecosystem.
• Included Temperature Probe: The bundled temperature probe enables environmental monitoring at the UPS location — useful in equipment closets where heat buildup is a real concern and where you want early warning before a thermal event takes down the load equipment.
• USB and Communication Cable Included: The included USB cable and communication cable allow direct connection to a host server for graceful shutdown coordination — so when runtime expires during an extended outage, connected servers get a clean shutdown signal rather than a hard power cut.

Integration and Compatibility

The SRT5KXLI integrates with APC's PowerChute software ecosystem (included on the bundled CD) for automated shutdown sequencing and power event logging. The SmartSlot expansion bay supports optional network management cards that add SNMP, web-based monitoring, and integration with building management platforms — relevant for enterprise security deployments where UPS status needs to feed into a broader infrastructure monitoring stack.

For UPS and power protection deployments in security infrastructure, pair this unit with a managed PoE switch on the protected load side — losing switch power during an outage takes down cameras and access readers simultaneously, so the UPS needs to cover the entire protected segment, not just the NVR head-end. Review your NVR and switch power draw carefully against the 5000VA rating to ensure runtime meets your site's hold-time requirement.

The APC by Schneider Electric SRT line is a long-running commercial platform with broad third-party software support — most enterprise power management and DCIM platforms include native APC integration. Consult the power protection buying guide for load calculation guidance before sizing this or any UPS to a specific rack.

What's in the Box

• 1x SRT5KXLI UPS unit
• 1x CD with Software
• 1x Communication Cable
• 1x Documentation CD
• 1x Set of Removable Support Feet
• 1x Temperature Probe
• 1x USB Cable

Frequently Asked Questions

Q: What input voltage does the SRT5KXLI require?

A: The SRT5KXLI is designed for 230V single-phase input. It is not a dual-voltage or auto-ranging unit — confirm your facility wiring is 230V before installation.

Q: Can the SRT5KXLI be rack-mounted?

A: Yes. The SRT5KXLI ships with removable support feet that allow either rack-mount or freestanding tower deployment. The chassis fits a standard 19-inch rack.

Q: What battery type does the SRT5KXLI use?

A: It uses sealed lead-acid batteries. These are field-replaceable and available through standard commercial supply channels without proprietary sourcing constraints.

Q: Does the SRT5KXLI include software for graceful server shutdown?

A: Yes. A CD with APC PowerChute software is included in the box. The unit also ships with a USB cable and communication cable for connecting to a protected host server.

Q: Does the SRT5KXLI support network management cards?

A: The APC SRT series includes a SmartSlot expansion bay that accepts optional APC network management cards for SNMP monitoring, remote management, and integration with DCIM platforms. The card is not included in the base unit.

Q: What is the output voltage of the SRT5KXLI?

A: The SRT5KXLI delivers 230V output, matching its 230V input design. Ensure all connected load equipment is rated for 230V operation.

Jerry Tildsen

When I look at the SRT5KXLI for a security infrastructure deployment, the first question I ask is whether the 5000VA rating is actually matched to the site's protected load — not just whether it fits in the rack. The 5000VA ceiling gives real headroom for a mid-density security stack: NVR, managed PoE switch, access control server, and an intercom head-end can all sit behind this unit without pushing the load to the point where runtime drops to minutes.

Technical Highlights:

• 5000VA / 230V Rating: Covers mid-density commercial rack loads without running near capacity — runtime degrades sharply above 80% load, so the 5000VA headroom is a real operational buffer, not just a marketing ceiling.
• Lead-Acid Battery: Field-replaceable without proprietary tooling or manufacturer service contracts — important for a device you expect to sit in a locked equipment room for 3-5 years between battery cycles.
• Temperature Probe Included: Equipment closets trap heat; the included probe gives you a monitoring point at the UPS itself, not just at the room thermostat — a meaningful difference when the UPS and load gear share a confined space.

Deployment Considerations:

• The 230V design is fixed — this is not an auto-ranging unit. If the equipment room has 120V circuits, this is the wrong model; look to the 120V variants in the SRT family instead.
• Network management capability requires an optional SmartSlot card (not included). For any deployment where remote monitoring or graceful shutdown over the network is a requirement — and it usually is in enterprise security installs — budget for the card separately at design time, not as an afterthought.

The SRT5KXLI is a strong fit for a 230V commercial equipment room running a multi-camera NVR system with associated switching and access control infrastructure — particularly where a network management card will be added for integration into a building DCIM or SNMP monitoring platform.
