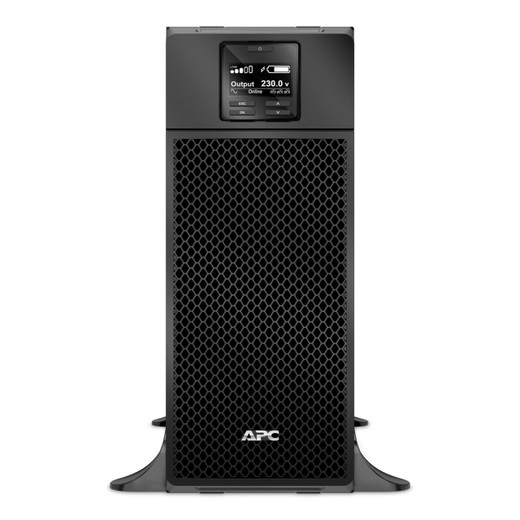

APC Smart-ups SRT 6000VA 230V - SRT6KXLI

APC by Schneider Electric SRT6KXLI Online Double-Conversion 6000VA/6000W UPS 230V

Overview

The APC Smart-UPS SRT6KXLI is a 6kVA/6000W true online double-conversion UPS designed for mission-critical loads where a single power interruption is unacceptable. Unlike standby or line-interactive topologies that switch to battery only on failure, the SRT6KXLI continuously conditions power through a full AC-DC-AC conversion cycle — your connected equipment never touches raw utility power directly. That architecture matters most in environments running network video recorders, server infrastructure, or high-density PoE switch stacks where a 10ms transfer gap can corrupt a database or drop a recording stream.

At 94.4% operating efficiency and a pure sine wave output with less than 3% total harmonic distortion, the SRT6KXLI sits in a class suited for sensitive electronics. It handles input voltage swings from 100V to 275V and frequency variations from 40Hz to 70Hz before touching battery reserves — wide enough to ride out most utility instability without battery wear. Emergency Power Off (EPO) support makes it compliant with data center and server room safety codes requiring remote shutdown capability.

Key Features

• True Online Double-Conversion Topology: Power is continuously rectified to DC and re-inverted to AC, isolating connected loads from every upstream anomaly — spikes, sags, surges, and frequency drift — without any transfer time. For UPS and power protection applications where zero transfer time is mandatory (medical imaging, video management servers, access control panels), this is the architecture you need.
• 6000 VA / 6000 W Output at Unity Power Factor: A 1.0 power factor rating means the full 6kVA nameplate translates directly to 6000W of usable capacity. Many competing UPS units carry a 0.8 or 0.9 PF derating — at 6kVA that's only 4,800–5,400W real. You won't be surprised by undersized capacity here.
• Pure Sine Wave Output at <3% THD: Output voltage total harmonic distortion stays below 3%, which is within tolerance for active power factor correction (APFC) power supplies common in modern servers and network gear. Square-wave or stepped-approximation UPS units can cause APFC supplies to behave erratically or refuse to start — this unit won't have that problem.
• 100V–275V Input Operating Range: The wide input window absorbs extreme voltage sag or swell events from utility feeds before switching to battery. In commercial or light-industrial sites with inconsistent utility quality, this range extends battery life by riding through fluctuations rather than cycling the battery repeatedly.
• 40–70 Hz Input Frequency Acceptance: Broader than the standard ±3Hz tolerance, this range makes the SRT6KXLI compatible with generator power — relevant for security operation centers and remote surveillance installations that rely on diesel backup generation during extended outages.
• 480 Joule Surge Energy Rating: Surge suppression at 480J provides meaningful protection against transient events on the input feed. Paired with double-conversion isolation, connected equipment sees none of the upstream transient energy.
• 94.4% Operating Efficiency: At typical loads the SRT6KXLI wastes less than 6% of consumed power as heat. In a 24/7 server room or security operations center, that difference from a less efficient unit adds up across the utility bill and reduces HVAC load.
• 3:1 Crest Factor Tolerance: A 3:1 crest factor rating means the inverter can handle loads whose peak current demand is three times the RMS average — common with switching power supplies. Lower crest factor ratings cause clipping distortion; this spec ensures clean delivery to real-world server and network equipment.
• Emergency Power Off (EPO): Hard-wired EPO input allows facility management or a building management system to remotely de-energize the UPS output in an emergency. Required by NEC and NFPA 75 in many data center and server room installations — confirm your AHJ requirements before commissioning.
• 55 dB Operating Noise: At 55 dBA, the SRT6KXLI is suitable for installations in wiring closets or small server rooms adjacent to occupied spaces, though not silent. Plan ventilation clearances and account for fan noise in noise-sensitive environments.
• Single-Phase Output (220–240V, 50/60 Hz): Output voltage is regulated to the 220–240V range at 50 or 60 Hz regardless of input frequency variation, providing consistent power quality to connected equipment across different utility standards.

Integration and Compatibility

The SRT6KXLI's output frequency regulation at 50/60 Hz and wide input acceptance make it compatible with equipment across international voltage standards at the 230V nominal level. The EPO dry-contact input integrates with building management systems, fire suppression systems, and access control panels that require coordinated emergency shutdown. For sites deploying the SRT6KXLI alongside a full surveillance infrastructure, pair it with appropriately rated PoE network switches and plan load distribution so camera, NVR, and server loads are balanced across output circuits. Review your security system power planning guide for load calculation methodology before sizing final circuit assignments.

The SRT6KXLI's double-conversion architecture makes it generator-compatible out of the box — the 40–70 Hz input window covers typical generator frequency excursions during startup and load transients that would confuse a line-interactive UPS.

Frequently Asked Questions

Q: What is the difference between the SRT6KXLI's double-conversion topology and a line-interactive UPS?

A: A line-interactive UPS uses utility power directly and switches to battery only when voltage falls outside tolerance — there is a brief transfer time (typically 2–10ms) during the switch. The SRT6KXLI's double-conversion (online) topology continuously re-generates AC power from an internal inverter, so connected equipment is always running on conditioned inverter output. Transfer time is zero because the inverter is always active. This also means the output is fully isolated from input disturbances at all times.

Q: Can the SRT6KXLI run on generator power?

A: Yes. The SRT6KXLI accepts input frequencies from 40Hz to 70Hz, which covers the frequency excursions typical of diesel generators during startup and variable load conditions. Its double-conversion topology also re-generates clean 50/60 Hz output regardless of generator frequency instability, protecting connected equipment from generator power quality issues.

Q: What output voltage does the SRT6KXLI supply?

A: The SRT6KXLI delivers regulated output in the 220–240V range at 50/60 Hz. Output total harmonic distortion is less than 3%, making it suitable for active power factor correction (APFC) power supplies used in modern servers and network equipment.

Q: What is the real power output capacity of the SRT6KXLI?

A: The SRT6KXLI is rated at 6000 VA and 6000 W, reflecting a unity (1.0) power factor. This means the full nameplate VA translates directly to watts — unlike UPS units with 0.8 or 0.9 power factor ratings that deliver only 4,800–5,400W from a 6kVA frame.

Q: Does the SRT6KXLI support Emergency Power Off (EPO)?

A: Yes. The SRT6KXLI includes an EPO input that allows the unit to be remotely de-energized via a hard-wired dry contact. This is required by NEC and NFPA 75 in many data center and server room installations. Verify your local Authority Having Jurisdiction (AHJ) requirements during design.

Q: How much surge protection does the SRT6KXLI provide?

A: The SRT6KXLI includes surge suppression rated at 480 joules. Combined with the double-conversion isolation, connected equipment is further protected because the inverter re-generates output power independently of input transients — the surge rating addresses transients that reach the input circuitry.

Eden Phillips

The SRT6KXLI is one of the cleanest power sources you can put behind a critical surveillance or IT load at this wattage class. The spec that matters most in day-to-day operation is the sub-3% output THD combined with a true unity power factor — 6000 VA delivers 6000W, no derating math required. I've seen integrators undersize UPS capacity because they didn't account for 0.8 PF derating on competing frames; that problem doesn't exist here.

Technical Highlights:

• Double-Conversion Topology: Zero transfer time because the inverter is always live — input disturbances, brownouts down to 100V, and frequency drift from 40–70Hz are absorbed without the output seeing any of it.
• 94.4% Efficiency: Less than 6% of consumed power becomes waste heat. In a 24/7 security operations center running at full load, that efficiency delta versus a 90% unit saves roughly 360W of continuous heat generation — a real factor in HVAC-constrained closets.
• 3:1 Crest Factor: Switching power supplies in NVRs, servers, and PoE switches regularly draw peak currents 2–3x their RMS average. A 3:1 crest factor tolerance means the inverter won't clip those peaks, which is how you avoid load instability under real-world current profiles.

Deployment Considerations:

• EPO wiring must be dry-contact only — verify your building management system or fire panel output type before terminating. Incorrect EPO wiring can cause unintended shutdowns or fail to trip when needed.
• At 55 dBA operating noise, this unit is not suited for open office or quiet control room installations without acoustic isolation — plan for a dedicated equipment closet or server room with appropriate ventilation.

The SRT6KXLI is the right fit for a mid-size security operations center or server room supporting 20–40 cameras with associated NVR, switching, and access control infrastructure — anywhere a 10ms transfer gap or dirty generator waveform would compromise continuous recording or system availability.
