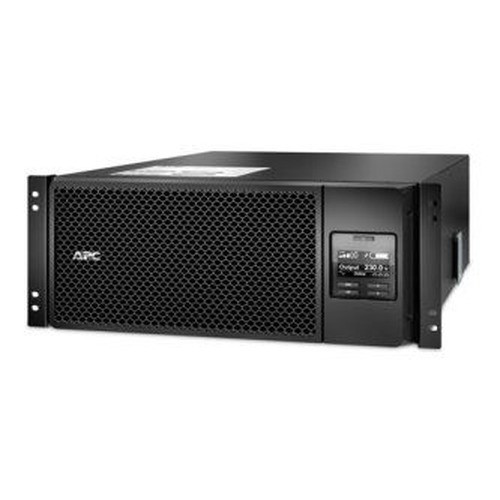

APC Smart-ups SRT 6000VA RM 230V - SRT6KRMXLI

APC by Schneider Electric SRT6KRMXLI 6kVA Online Rackmount UPS 230V

Overview

The APC by Schneider Electric SRT6KRMXLI is a 6kVA/6000W double-conversion online UPS designed for rackmount deployments where continuous, clean power is non-negotiable. Unlike standby or line-interactive topologies that switch to battery only on failure, the SRT6KRMXLI runs your load through the inverter at all times — meaning there is zero transfer time to battery and your connected equipment never sees raw utility power. That matters in server rooms, security operations centers, and surveillance NVR racks where even a 4ms transfer gap can trigger a reboot.

With a wide input voltage window of 100–275V and an input frequency range of 40–70Hz, the SRT6KRMXLI handles poor power environments — unstable generators, weak utility legs, industrial sites with significant voltage fluctuation — without unnecessarily drawing down the battery. That extended operating range is the difference between a UPS that protects and one that cycles batteries prematurely.

Key Features

• Double-Conversion (Online) Topology: The load runs through the inverter continuously, so there is no transfer time when utility power fails or degrades. For NVR arrays, access control servers, and security workstations, this eliminates the brief power interruption that causes unexpected reboots — a common failure point in less capable UPS designs.
• 6000VA / 6000W Output at Unity Power Factor: The SRT6KRMXLI delivers a true 1.0 power factor, meaning the full 6kW is available for your actual load — not just 5,400W or 4,800W as you'd see on older designs rated at 0.9 or 0.8 PF. This matters when you're stacking dense 1U servers or multi-channel NVRs that draw close to nameplate.
• 94.4% Efficiency: At full load the unit loses roughly 5.6% as heat — lower than older online UPS designs that typically run 88–92%. Over a year of 24/7 operation, that efficiency difference translates to measurable savings on utility costs and reduces heat load in the rack or equipment room.
• Wide Input Voltage Range (100–275V): Accepts utility voltages from 100V to 275V before the inverter falls back to battery. Deployments on weak utility feeds, or in facilities sharing a panel with heavy industrial equipment, will spend far less time on battery — extending battery service life and reducing replacement cycles.
• 480J Surge Energy Rating: The integrated surge protection absorbs up to 480 joules, providing a meaningful first line of defense against transient spikes that slip through facility-level protection. This is particularly relevant in environments near high-draw equipment, loading docks, or facilities on overhead utility lines prone to switching transients.
• True Sine Wave Output: The SRT6KRMXLI outputs a pure sine wave regardless of input condition. Active PFC power supplies — standard in modern servers, rack switches, and NVR appliances — require sine wave input to operate correctly; non-sine wave (simulated/stepped) UPS output can cause equipment instability or void manufacturer warranties on sensitive loads.
• Emergency Power Off (EPO) Support: The EPO input allows integration with facility-level emergency shutoff systems — a code requirement in many data center and security control room installations. Connecting the SRT6KRMXLI to a building EPO circuit meets this requirement without additional hardware.
• 3:1 Crest Factor Tolerance: A crest factor of 3:1 means the UPS can handle loads with high peak-to-RMS current ratios — laser printers, motor-start loads, and switching power supplies all impose crest factors above 1.5:1. This prevents nuisance tripping and overload faults under real-world mixed loads.
• Audible Alarm and 55 dB Noise Level: Onboard audible alarms alert on-site staff to utility failure, low battery, and fault conditions without requiring a management connection. At 55 dB operational noise, the unit is audible in an equipment room but not disruptive in a lightly staffed monitoring environment.
• 50/60 Hz Output Frequency Regulation: Output frequency is regulated independently of input, which is useful in generator-fed environments where generator frequency can drift under load — the SRT6KRMXLI maintains stable output frequency regardless.

Integration and Compatibility

The SRT6KRMXLI outputs at 220–240V across a regulated 50/60 Hz range, making it compatible with standard IEC-input rackmount equipment operating on 230V feeds. The double-conversion architecture is fully transparent to connected equipment — servers, NVRs, PoE switches, and workstations see clean, regulated power with no waveform artifacts. The EPO terminal enables integration with building management and emergency shutoff systems. For power and UPS solutions in rackmount configurations, the SRT6KRMXLI fits standard 2U or 3U rack space depending on configuration. It pairs naturally with managed PoE switches and network video recorders that form the backbone of enterprise surveillance infrastructure. See the broader APC power protection catalog for compatible external battery modules that extend runtime beyond internal battery capacity, and consult a UPS selection guide for matching runtime requirements to load profiles in multi-camera deployments.

Frequently Asked Questions

Q: What is the difference between double-conversion (online) and line-interactive UPS topology, and why does it matter for this application?

A: A double-conversion online UPS like the SRT6KRMXLI runs your load through the inverter at all times — the inverter is always active, not just on transfer. This means zero transfer time to battery when utility power fails. Line-interactive designs typically have a 2–10ms transfer window, which can cause brief interruptions on sensitive loads. For NVR arrays, security servers, and access control systems that can reboot on any power interruption, double-conversion is the correct topology.

Q: Does the SRT6KRMXLI support a 1.0 power factor load, and what does that mean for capacity planning?

A: Yes. The SRT6KRMXLI is rated at 6kVA with a 6000W output — a 1.0 power factor. This means the full 6000W is available for your real load. Older UPS designs rated at 0.8–0.9 PF would deliver only 4,800–5,400W from a 6kVA rating. Unity power factor simplifies capacity planning: if your rack draws 5,200W, this unit covers it with headroom.

Q: What is the input voltage operating range of the SRT6KRMXLI, and can it run on generator power?

A: The SRT6KRMXLI accepts input voltages from 100V to 275V and input frequencies from 40 to 70 Hz. This wide range makes it well-suited to generator-fed environments where voltage and frequency can fluctuate under load. Output frequency is regulated to 50/60 Hz regardless of input frequency drift, so connected equipment sees stable power even when the generator is under variable load.

Q: Does the SRT6KRMXLI output a true sine wave?

A: Yes, the output waveform is a true sine wave at all times, including battery operation. This is required for equipment with active power factor correction (PFC) power supplies — which includes most modern servers, PoE switches, and NVR appliances. Running active-PFC loads on a non-sine wave (simulated or stepped) UPS can cause instability or equipment faults.

Q: What is the EPO feature on the SRT6KRMXLI and when is it required?

A: EPO (Emergency Power Off) is a hardwired input that allows a remote switch or building management system to cut power to the UPS output instantly. Many local electrical codes and data center standards require EPO capability on UPS systems above a certain capacity. The SRT6KRMXLI includes an EPO terminal for integration with facility emergency shutoff circuits — no additional hardware required.

Q: How loud is the SRT6KRMXLI during normal operation?

A: The unit operates at 55 dB under normal conditions. This is roughly equivalent to a quiet office environment or moderate conversation. In a dedicated equipment room or server rack enclosure, this is generally acceptable. If the unit is installed in an open office or lightly staffed monitoring area adjacent to workstations, acoustic isolation may be worth considering.

Marty Allison

The SRT6KRMXLI is the unit I reach for when a customer has a dense NVR rack or a security operations center that cannot tolerate even a momentary power interruption. The double-conversion topology means the inverter is live at all times — there is no transfer relay, no 4ms gap, no surprise reboot when utility power dips. At 6kVA with a true unity power factor, you get the full 6000W available for real load, not a de-rated figure.

Technical Highlights:

• Double-Conversion Online, Zero Transfer Time: The inverter is always driving the output — utility failure causes no interruption whatsoever to connected equipment. This is the only topology that genuinely eliminates transfer-related reboots in NVR and server applications.
• 94.4% Efficiency at Load: That is on the high end for online double-conversion — older designs in this class run 88–90%. The difference shows up as lower heat output in the rack and a measurable reduction in annual operating cost over continuous 24/7 operation.
• 100–275V Input Window with 40–70 Hz Frequency Acceptance: In facilities with aging electrical infrastructure, shared panels with variable loads, or generator backup, this range prevents the UPS from cycling onto battery unnecessarily — which is the leading cause of premature battery degradation in field-deployed units.

Deployment Considerations:

• The EPO terminal must be wired correctly if your facility has a building emergency shutoff system — confirm the EPO input polarity and normally-open vs. normally-closed configuration before commissioning to avoid inadvertent shutdown.
• At 55 dB, this unit is not silent. In an IDF closet or open office installation, plan for acoustic mitigation. Dedicated equipment rooms are the natural home for a 6kW online UPS.

This unit is the right call for a centralized security head-end rack in a mid-to-large commercial building — the kind of installation where a 30-camera NVR system, a PoE switch stack, and an access control server all share the same power feed and a single reboot costs hours of investigation and potential evidence gaps.
