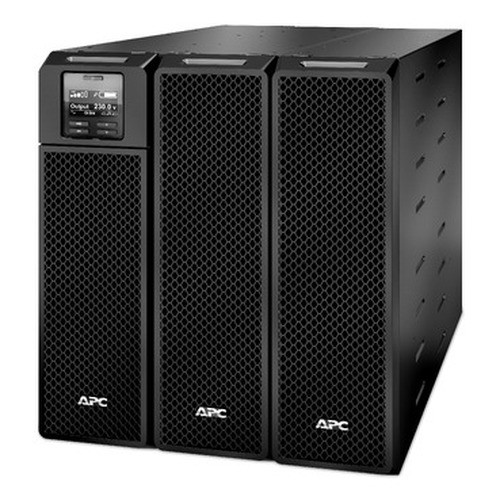

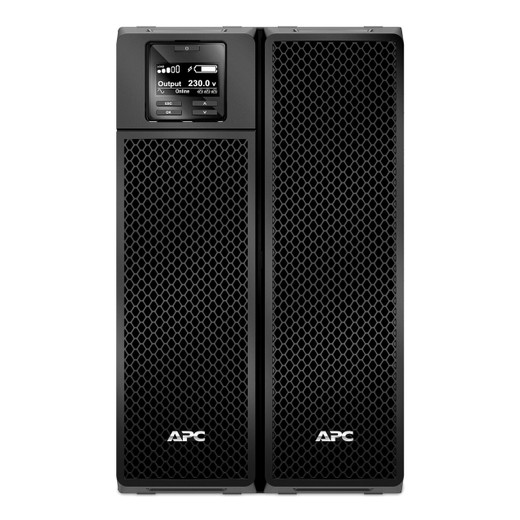

APC Smart-ups SRT 10000VA 230V - SRT10KXLI

APC by Schneider Electric SRT10KXLI Online Double-Conversion UPS 10kVA 230V

Overview

The APC by Schneider Electric SRT10KXLI is a 10kVA/10,000W online double-conversion UPS designed for critical infrastructure where any power interruption, voltage fluctuation, or waveform distortion is unacceptable. Unlike standby or line-interactive topologies that switch to battery only on outage, the SRT10KXLI continuously powers connected equipment from its inverter — utility power never touches your load directly. That means zero transfer time, consistent pure sine wave output regardless of input quality, and no risk of switching transients reaching sensitive electronics.

With an input voltage range of 100–476V and input frequency tolerance of 40–70 Hz, the SRT10KXLI accommodates genuinely poor utility environments — useful in older facilities or regions with notoriously inconsistent grid quality — without unnecessarily cycling the battery. At 94.6% efficiency under typical load, it avoids the thermal and energy penalty that plagues older online UPS designs, keeping operating costs in check for 24/7 installations.

Key Features

• Online Double-Conversion Topology: Load is continuously powered through the inverter rather than switching on outage. Transfer time is zero — critical for servers, NVRs, and access control panels that cannot tolerate even a brief gap. If your facility has frequent micro-outages or dirty utility power, this is the topology that eliminates the problem rather than masking it.
• 10,000W / 10kVA Output Capacity: Full watt-for-watt unity power factor (10kW from 10kVA) means no derating penalty when your connected load is predominantly resistive or modern switched-mode equipment. Size your load budget to the kW figure, not a derated fraction.
• 100–476V Wide Input Voltage Range: Accepts input from 100V up to 476V before switching to battery. In practice this means the unit rides through deep sags and significant overvoltages that would force a narrower-range UPS onto battery, preserving battery cycle life for genuine outages.
• Pure Sine Wave Output: Delivers utility-grade waveform to every connected device. Active PFC power supplies, variable-speed drives, and medical or lab equipment that reject stepped-approximation waveforms will run cleanly — no harmonic interference or compatibility exclusions to work around.
• 94.6% Efficiency: Online double-conversion UPS designs historically run in the 88–92% range; 94.6% closes most of that gap versus line-interactive alternatives. On a 10kW unit running 8,760 hours/year, the difference between 90% and 94.6% efficiency at $0.12/kWh is roughly $480/year in saved energy — a real operational cost factor at this capacity class.
• 3:1 Crest Factor Tolerance: Handles loads with a crest factor up to 3:1, covering the inrush-heavy switched-mode power supplies typical of server racks and imaging equipment without output voltage collapse or UPS shutdown during startup.
• Emergency Power Off (EPO): Hard-wired EPO port allows facility safety systems or a remote cutoff switch to immediately de-energize connected equipment. Required in many data center and server room installations by local electrical codes and NFPA 75/76 standards — confirm your jurisdiction's requirements before commissioning.
• Auto-Restart: After a utility restore following deep discharge, the SRT10KXLI restarts autonomously without operator intervention. For unattended installations — remote surveillance nodes, edge compute closets, unmanned substations — this eliminates a manual recovery step after extended outages.
• 55 dB Noise Level: Comparable to a normal conversation at 1 meter. Acceptable for equipment rooms and IDF closets; plan accordingly if deploying in open office or noise-sensitive environments where fan noise will be audible at close range.
• 50/60 Hz Output Frequency Regulation: Output frequency is actively regulated regardless of input frequency variation. Connected equipment sees a stable, consistent supply frequency — relevant when input frequency drifts under generator operation or weak grid conditions.

Integration and Compatibility

The SRT10KXLI operates at 230V single-phase output across the 220–240V range, aligning with standard IEC-connected IT equipment, power protection infrastructure, and the distribution panels common in European and international facility standards. The wide input window (100–476V) accommodates step-down or step-up transformer-fed circuits without modification.

EPO integration connects to facility building management systems, fire suppression panels, or dedicated emergency disconnect switches via the onboard EPO port — standard in data centers and security operations centers where a single point of controlled shutdown is required. The APC Smart-UPS SRT series is a broadly deployed product line; consult the UPS and power protection category for complementary models at other capacity points. For facilities combining UPS protection with surveillance infrastructure, pairing with network video recorders and downstream PoE switches on protected circuits is standard practice. Reference the power planning guide when sizing UPS capacity across multi-device security deployments.

The audible alarm system provides local notification for fault, low battery, and overload conditions — confirm whether your installation environment requires integration with a remote monitoring card (SNMP/network management) for centralized alerting, as network management card compatibility should be verified against the SRT10KXLI chassis specification at time of purchase.

Frequently Asked Questions

Q: What is the difference between the SRT10KXLI's online double-conversion topology and a line-interactive UPS?

A: In an online double-conversion UPS like the SRT10KXLI, the load is continuously powered through the inverter — utility power is converted to DC and back to AC at all times. Transfer time on outage is zero. A line-interactive UPS normally passes utility power directly and only switches to inverter on outage, introducing a brief transfer delay (typically 4–10ms). For servers, NVRs, and precision electronics, zero transfer time and continuous waveform conditioning are the reasons to choose online double-conversion.

Q: What input voltage range does the SRT10KXLI accept?

A: The SRT10KXLI accepts input from 100V to 476V at 40–70 Hz. This wide range allows the unit to ride through significant voltage sags and swells on utility or generator power without switching to battery, which extends battery life and reduces unnecessary cycling.

Q: Does the SRT10KXLI produce a pure sine wave output?

A: Yes. The SRT10KXLI outputs a pure sine wave at 220–240V, 50/60 Hz — actively regulated regardless of input quality. This is required for active PFC power supplies, variable-speed drives, and any equipment that specifies a sine wave input.

Q: What does the Emergency Power Off (EPO) feature do?

A: The EPO port allows an external safety system, fire suppression panel, or manual switch to immediately cut power to all connected equipment. This is a code requirement in many data center and server room environments (NFPA 75/76) and is standard practice in security operations centers where controlled shutdown is a safety requirement.

Q: What is the efficiency of the SRT10KXLI, and does it matter for operational cost?

A: The SRT10KXLI operates at 94.6% efficiency. At a 10kW load running continuously, this translates to meaningful energy savings versus older online UPS designs that typically run at 88–92%. On a 24/7 basis at standard commercial electricity rates, the efficiency difference compared to a 90% unit is approximately $400–500 per year — a real factor in total cost of ownership over a 5–7 year deployment.

Q: Will the SRT10KXLI restart automatically after a complete battery discharge and utility restore?

A: Yes. The SRT10KXLI includes auto-restart functionality. After a deep-discharge event followed by utility return, the unit restores power to connected equipment without requiring manual intervention — important for remote or unattended installations such as edge surveillance nodes or unmanned equipment closets.

Marty Allison

The SRT10KXLI is the unit I recommend when a customer needs double-conversion protection at 10kW and cannot accept the energy penalty that usually comes with it. The 94.6% efficiency rating is the spec that changes the TCO conversation — on a unit this size running 24/7, you are not giving back 8–10% of your load to heat and waste the way you would with an older online design.

Technical Highlights:

• Zero Transfer Time: Online double-conversion means the inverter is always in the power path — there is no switching event on outage. For NVR arrays, access control servers, or any device with active PFC supplies, that continuity matters more than runtime math.
• 100–476V Input Range: This is unusually wide. In a building running on a weak grid or transitioning between utility and generator, the SRT10KXLI will ride through conditions that would force a narrower unit onto battery — and every avoided battery cycle extends battery service life.
• 3:1 Crest Factor: Server racks with high-inrush switched-mode supplies will stress a UPS on startup. The 3:1 crest factor tolerance in the SRT10KXLI handles that inrush without output voltage collapse, which is the kind of detail that prevents mysterious reboots during load energization sequences.

Deployment Considerations:

• The EPO port needs to be wired into your facility's emergency disconnect or fire suppression interlock before commissioning — do not treat it as optional in a data center or security operations center environment. Confirm your local code (NFPA 75/76 or equivalent) before installation.
• At 55 dB, fan noise is audible in quiet environments. Deploy in a dedicated equipment room or IDF closet rather than open office space. Budget for network management card integration if you need remote monitoring — the onboard audible alarms are local-only.

For a surveillance or physical security operations center running a large NVR stack, PoE switch infrastructure, and access control servers on a shared protected circuit, the SRT10KXLI is correctly sized and correctly specified — double-conversion topology, wide input tolerance, and EPO integration all in one chassis at 10kW.
