Main Input Voltage:
230 V 400 V 3 phases
Product Type:

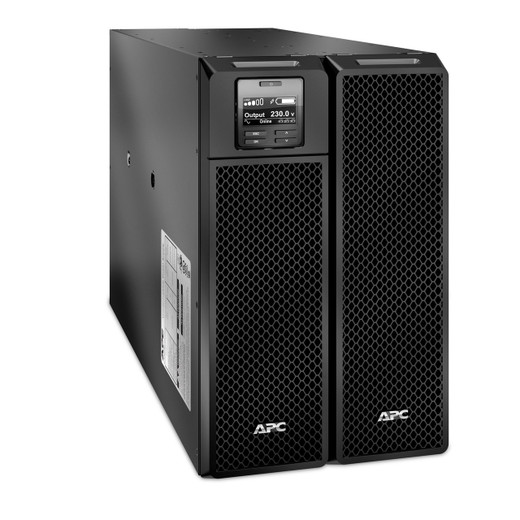

Uninterruptible power supply (UPS)
Other Input Voltage:
220 V 240 V 380 V 415 V
Main Output Voltage:
230 V
Other Output Voltage:
220 V 240 V
Rated Power In W:
10000 W
Rated Power In VA:
10000 VA
Output Connection Type:
4 IEC 60309 32 A
Output Connector Type:
Hard wire 3-wire (H N + E) 1
Number Of Rack Unit:
6U
Battery Type:
Lead-acid battery
Battery Recharge Time:
1.5 h
Battery Life:
3…5 year(s)
Battery Charger Power:
1195 W rated
UPS Type:
Double conversion online
Input Voltage Limits:
100...275 V adjustable (half load) 173...476 V adjustable (half load)
Number Of Input Connectors:
1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E)
Network Frequency:
40...70 Hz auto-sensing
Bypass Type:
Internal bypass (automatic and manual)
Crest Factor:
3 : 1
Harmonic Distortion:
Less than 2 %
Maximum Configurable Power In VA:
10000 VA
Maximum Configurable Power In W:
10000 W
Wave Type:
Sine wave
Output Frequency:
50/60 Hz +/- 3 Hz sync to mains
Product Certifications:
CE EAC IRAM RCM VDE
Marking:
CE Mark
Standards:
EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Acoustic Level:
55 dBA
Heat Dissipation:
1947 Btu/h
Operating Altitude:
0...10000 ft
Ambient Air Temperature For Operation:
0…40 °C
Ambient Air Temperature For Storage:
-15…45 °C
Storage Altitude:
0.0000000000…15240.0000000000 m
IP Degree Of Protection:
IP20
Relative Humidity:
0…95 % non-condensing
Storage Relative Humidity:
0…95 % non-condensing
Free Slots:
1
Alarm:
Audible and visible alarms : prioritized by severity
Surge Energy Rate:
480 J
Height:
26.3 cm
Width:
43.2 cm
Depth:
71.5 cm
Net Weight:
111.82 kg
Mounting Mode:
Rack-mounted Two post mountable
Warranty:
3 years repair or replace (excluding battery) and 2 years for battery
