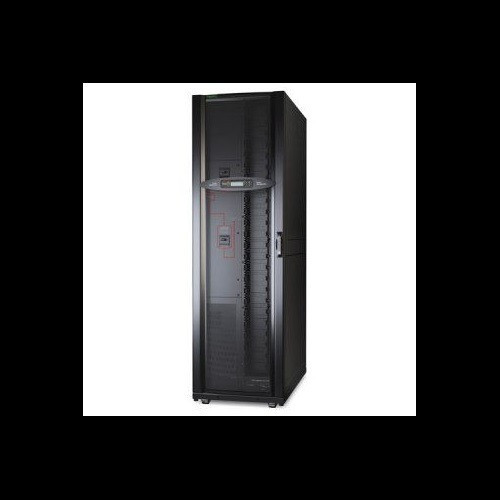

APC 144kVA Modular Power Distribution Unit Isolation Transformer 480:208V 72 Poles 2 - PDPM150G6F

APC by Schneider Electric PDPM150G6F Concise Descriptor

Overview

The APC by Schneider Electric PDPM150G6F is a 144kVA modular isolation transformer designed to step down 480V three-phase power to 208V three-phase. This unit is critical for ensuring clean, stable power delivery to sensitive equipment in environments where the primary power source is a higher voltage, such as large data centers or industrial facilities. Its modular design allows for flexible integration into APC's EcoStruxure Power architecture, simplifying deployment and maintenance for IT infrastructure. The PDPM150G6F model specifically addresses the need for a robust 72-pole configuration, offering precise power conditioning for high-density power distribution racks. This transformer is essential for maintaining the operational integrity of critical IT loads by isolating them from power line disturbances.

Compatibility

This isolation transformer is designed to integrate with APC's modular power distribution units, specifically within the Symmetra LX and Smart-UPS Modular families. It is intended for use with APC rack enclosures and power distribution systems that accept modular transformer components. Ensure your existing APC infrastructure supports 480V input and 208V output configurations for seamless integration.

Installation Notes

Installation requires qualified personnel familiar with high-voltage three-phase power systems. Ensure the unit is installed in a clean, dry environment with adequate ventilation. Refer to the APC installation manual for specific torque values for terminal connections and required clearances. The 72-pole configuration necessitates careful wiring to ensure proper phase balancing and load distribution.

What's in the Box

• 1x APC PDPM150G6F Isolation Transformer Module
• 1x Installation Guide
