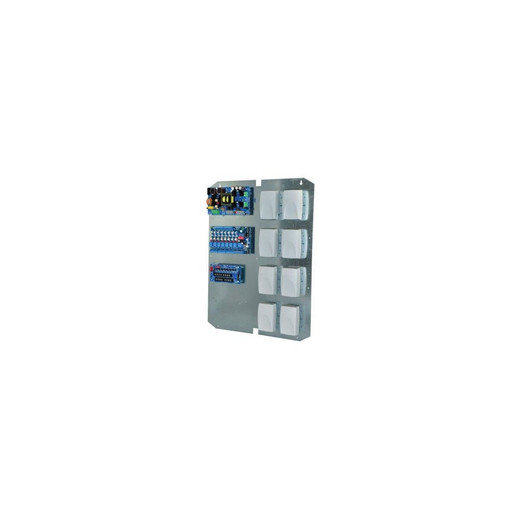

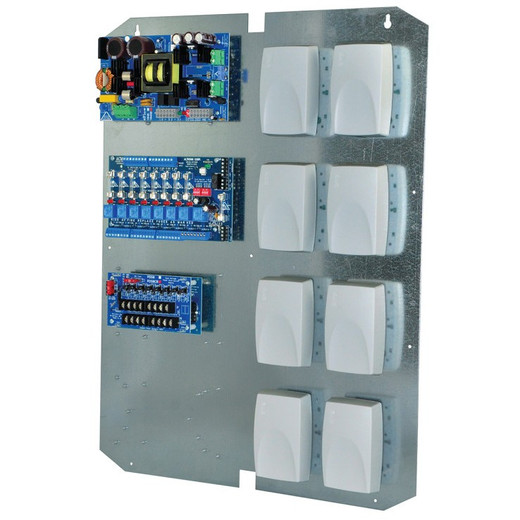

Altronix TDM2 Trove2 Backplane Module
Overview
The Altronix TDM2 is a backplane module engineered as the central interconnection point for the Trove2 modular power platform. Unlike monolithic power supplies that force you into fixed configurations, the TDM2 enables you to mix and match compatible power, management, and monitoring modules within a single Trove2 enclosure — a critical advantage when your security infrastructure spans cameras, access control readers, and network equipment with varying power demands and redundancy requirements.
This backplane serves integrators and IT architects who need flexible, scalable power distribution without replacing entire cabinets. The TDM2 supports distributed power management, meaning you can load-balance across installed modules and avoid single points of failure in central station monitoring, video surveillance backbones, and integrated access control systems.
Key Features
- Modular backplane architecture compatible with Trove2 chassis: The TDM2 accepts multiple compatible Altronix and DMP power supply and management modules in a single enclosure, eliminating the need to purchase separate power supplies for each circuit or function — reduces physical footprint and cable clutter in equipment rooms.
- Supports distributed power management and load balancing: Installed modules share interconnection intelligence via the backplane, allowing you to monitor power consumption and redistribute load dynamically across circuits — important for facilities where peak camera and access control loads overlap and you need to avoid breaker trips.
- Hot-swappable module connectivity: Replace or upgrade individual modules without powering down the entire system, minimizing downtime during maintenance windows — a real operational advantage in 24/7 surveillance and access control facilities where a full power cycle cascades into hours of downtime across cameras and readers.
- Designed for integration with Altronix/DMP power and monitoring modules: The TDM2 is purpose-built for the Altronix power ecosystem, ensuring pin-to-pin compatibility and support for redundancy features, managed power switching, and remote monitoring capabilities that you'd lose with generic backplanes.
- Engineered for high-reliability security and surveillance infrastructure: Trove2-based systems support mission-critical deployments requiring redundant power supplies and failover switching — configurations that protect against both scheduled maintenance and unexpected power events.
- Lifetime Limited Warranty: Altronix backs the TDM2 with a lifetime limited warranty, meaning component failures are covered for the operational life of the product — significant for integrators who service customer sites over 10+ year lifecycles and need to minimize unexpected parts replacement costs.
Integration & Compatibility
The TDM2 is compatible with Altronix and DMP modules designed for the Trove2 platform. Confirm module compatibility with the Trove2 product family before specifying — not all Altronix power modules work with older or alternative backplane architectures. This modular design also supports power supply integration with access control infrastructure and video surveillance power distribution.
Deployment Scenarios
- Central station monitoring facilities: Deploy multiple redundant power modules on a single TDM2 backplane to ensure 24/7 monitoring console and recorder uptime — if one module fails, the backplane routes load to standby modules without manual intervention.
- Video surveillance system power backbone: Use the TDM2 to consolidate power for multiple camera circuits, each with independent surge protection and monitoring — scales from a small 8-camera installation to enterprise deployments with dozens of independent circuits.
- Access control infrastructure with modular power management: Integrate door lock power, reader power, and controller power on a single TDM2, with the ability to reboot individual circuits remotely or via scheduled maintenance scripts — avoids the need for separate cabinets for access control and video power.
- Integrated security systems combining multiple power and monitoring functions: Equipment rooms where CCTV, access control, intercom, and emergency lighting all draw from a single managed power infrastructure benefit from the TDM2's ability to distribute load, monitor consumption, and provide per-circuit status reporting.
When to Consider a Different Model
If your deployment is a standalone single-circuit application — for example, a small office with one camera circuit and no redundancy requirement — a traditional fixed power supply is simpler and more cost-effective than a modular backplane system. The TDM2 adds value when you have three or more circuits, redundancy requirements, or a need to reconfigure power distribution without replacing hardware.
Frequently Asked Questions
Q: What Trove2 modules are compatible with the TDM2 backplane?
A: The TDM2 is designed to accept Altronix and DMP power supply and management modules engineered for the Trove2 platform. Confirm specific module part numbers with the Altronix product compatibility matrix before specifying — module families have generational variants.
Q: Can I hot-swap modules while the system is under load?
A: Yes. The TDM2 supports hot-swappable module connectivity, allowing you to remove and install modules without powering down the backplane or other installed modules — provided you follow Altronix installation procedures and confirm load routing to active modules before removal.
Q: Does the TDM2 work with non-Altronix power modules?
A: The TDM2 is engineered for Altronix and DMP modules. Third-party modules may not provide compatible pinouts or management interfaces. Stick to Altronix and DMP compatible modules to ensure redundancy features, monitoring, and failover support function correctly.
Q: What is the warranty on the TDM2?
A: The TDM2 carries an Altronix Lifetime Limited Warranty, covering component defects for the operational life of the product under normal use.
Q: Can I upgrade or replace modules without purchasing a new backplane?
A: Yes. One core advantage of the modular architecture is the ability to upgrade individual modules — for example, swap a standard power module for a redundant failover module, or upgrade to a higher-capacity module — without replacing the TDM2 backplane.
Q: Is the TDM2 suitable for outdoor installations?
A: The TDM2 is a backplane module designed for installation within a Trove2 enclosure in controlled environments (equipment rooms, server closets, cabinets). Do not expose the TDM2 itself to outdoor weather. The Trove2 enclosure provides the environmental rating for the system as a whole.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix TDM2 is the right choice when you're building a scalable, redundant power infrastructure that needs to grow without hardware replacement. I've specified the TDM2 in central stations and large surveillance deployments where power circuits aren't static — customers add camera zones, upgrade access control readers, or deploy new monitoring consoles on timelines measured in months, not years. The TDM2's modular backplane handles that without forcing a power supply swap.
Technical Highlights:
- Hot-swappable module connectivity: You can replace or upgrade individual power modules without shutting down the backplane — critical for 24/7 facilities where even a brief power loss cascades into hours of downtime recovering camera streams and access control sync. This feature alone saves thousands in lost security visibility during maintenance windows.
- Distributed load balancing across installed modules: Rather than daisy-chaining circuits to a single power supply, the TDM2 distributes load intelligently across compatible modules. In practice, this means avoiding the surge load spike that triggers breaker trips when all cameras power on simultaneously after a facility outage.
- Lifetime Limited Warranty: Altronix stands behind the TDM2 for the product's operational life — no 5-year cliff where your backplane becomes a spare-parts liability. For integrators managing customer sites over 15+ year lifecycles, that warranty horizon matters for cost-of-ownership calculations.
Deployment Considerations:
- The TDM2 is a backplane-only component — you still need to specify compatible Altronix/DMP modules for the actual power supply and management functions. Confirm module compatibility before ordering; generational variants exist within the Trove2 family.
- Hot-swap capability assumes you're following Altronix procedures for module removal and that load is properly routed to active modules before you pull a live module. This isn't a 'yank and go' design — it requires brief verification before module swap.
- The TDM2 must be installed in a controlled environment (equipment room, cabinet). If you need outdoor power distribution, evaluate hardened Trove2 enclosures separately — the backplane itself has no weather rating.
Specify the TDM2 for multi-circuit security power backbones where modular scalability and redundancy are explicit requirements — central stations, large integrations with multiple camera zones and access control, and facilities where power configuration changes happen on 2–3 year cycles. For single-circuit standalone applications, a traditional fixed power supply is simpler and more cost-effective.
