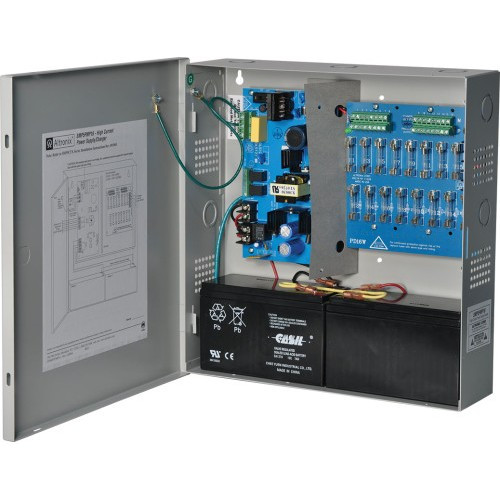

Altronix SMP5PMP16 16 Fused Outputs Supervised Power Supply

Altronix SMP5PMP16 16 Fused Outputs Supervised Power Supply

The Altronix SMP5PMP16 is a supervised power supply with 16 independently fused outputs for distributed 12VDC power delivery in security and access control systems. Accepts 16–28VAC input and provides multiple 12VDC rails with current ratings up to 6A, supporting mixed load requirements across 16 separate circuits. Built-in supervision monitors AC failure, low battery, and battery presence conditions.

Key Features

• 16 individually fused outputs for circuit-level protection and load isolation
• Accepts 16–28VAC input voltage for flexible transformer integration
• Multiple 12VDC output rails with ratings of 0.5A, 4A, and 6A per source specifications
• Integrated battery backup support for emergency power operation
• Supervised monitoring: AC fail, low battery, and battery presence detection
• Compact board footprint 7"L × 4"W × 1"H mounted in BC300 enclosure
• CE approved for European deployment
• Lifetime Limited Warranty

Applications

• Multi-door access control systems requiring distributed 12VDC power
• Video surveillance installations with mixed load profiles
• Alarm system backup power distribution
• Networked security device power management

Specifications

• Input: 16–28VAC
• Output: 12VDC with 0.5A, 4A, and 6A available per rail
• Outputs: 16 fused channels
• Battery Backup: Yes
• Supervision: AC Fail, Low Battery, Battery Presence
• Board Dimensions: 7"L × 4"W × 1"H
• Enclosure: BC300
• Approvals: CE
• Warranty: Lifetime Limited
