Altronix SMP5PMP16CB 16 PTC Outputs Supervised Power Supply
Altronix SMP5PMP16CB 16 PTC Outputs Supervised Power Supply
Altronix SMP5PMP16CB 16 PTC Outputs Supervised Power Supply
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

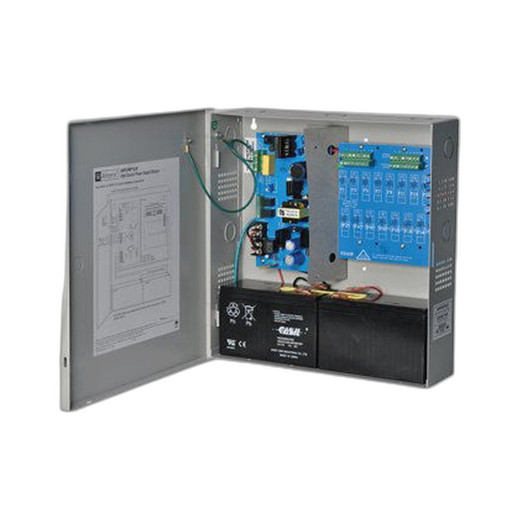

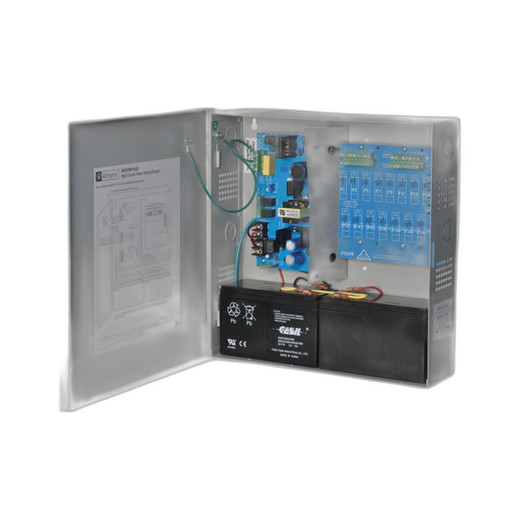

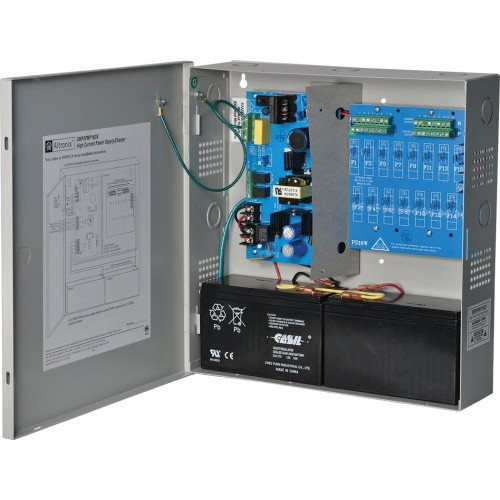

Altronix SMP5PMP16CB 16 PTC Outputs Supervised Power Supply

The Altronix SMP5PMP16CB is a supervised power supply with 16 individually controlled PTC (Positive Temperature Coefficient) outputs. Designed for networked security systems requiring reliable power distribution and remote monitoring, the SMP5PMP16CB accepts 115/220VAC input and delivers regulated 12/24VDC output at 4A maximum current. Each output includes PTC protection and remote supervision capabilities for fault detection and reporting.

Key Features

  • 16 independently supervised PTC outputs
  • Dual input voltage support: 115/220VAC
  • Switchable output voltage: 12/24VDC
  • 4A maximum output current
  • Battery backup capability for sustained operation during mains failure
  • Individual output supervision for open-circuit and short-circuit detection
  • Lifetime Limited Warranty

Applications

  • Access control system power distribution
  • Video surveillance equipment backup power
  • Networked security device management

Specifications

  • Input Voltage: 115/220VAC
  • Output Voltage: 12/24VDC (switchable)
  • Maximum Output Current: 4A
  • Number of Outputs: 16 (PTC-protected)
  • Battery Backup: Yes
  • Supervision: Yes (individual output monitoring)
  • Warranty: Lifetime Limited
Expert Analysis
Specifications
Input Voltage: 115/220VAC
Output Voltage: 12/24VDC
Max Current: 4A
Number of Outputs: 16
Supervision: Yes
Warranty: Lifetime
Type: Power Supply
Power: 24VDC
Battery Backup: Yes
Q&A
Reviews
Product Video

Altronix SMP5PMP16CB 16 PTC Outputs Supervised Power Supply

$404.25
$221.99
