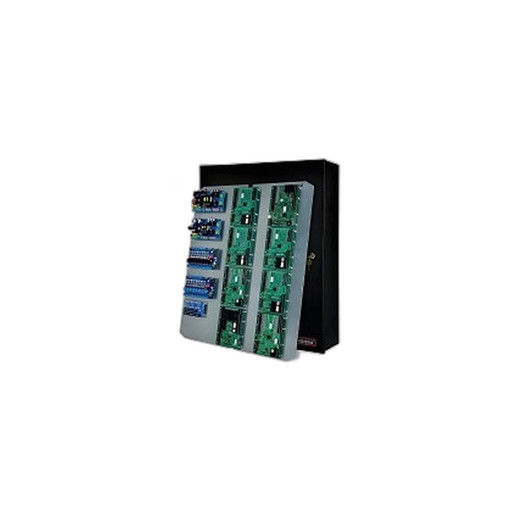

Altronix T3MK77F16QV 16-Output Supervised Power Supply

Altronix T3MK77F16QV 16-Output Power Supply

Overview

The Altronix T3MK77F16QV is a 16-output power supply designed for multi-device security installations requiring centralized power distribution and management. Built to serve as part of the TROVE3M3/TMV2/MER16DR FUS architecture, the T3MK77F16QV operates from 220V AC input and delivers distributed power to 16 separate output channels. This model is engineered to support access control systems, intercom networks, and mixed security device arrays where reliable, supervised power delivery is critical to system integrity.

Key Features

• 16 Independent Output Channels: Distributes power across 16 separate circuits, enabling modular device control and fault isolation within a single enclosure
• 220V AC Input: Operates directly from standard international power standards, reducing the need for step-down transformers in 220V regions
• Supervised Power Delivery: Built-in supervision ensures each output channel is monitored for faults, short circuits, and load anomalies
• Battery Backup Integration: Compatible with auxiliary battery modules to provide backup power during mains failure, critical for 24/7 security operations
• Integrated Fusing: Each output channel includes individual fusing for circuit protection and rapid fault clearing without cascading system failure
• DIN Rail Mounting: Fits standard DIN rail enclosures, enabling integration into control cabinets and equipment racks
• TROVE3M3/TMV2/MER16DR Compatible: Designed as a core component within Altronix modular security ecosystems, ensuring plug-and-play integration with companion modules
• Field-Installable: Supports both new installations and retrofit upgrades into existing security infrastructure

Integration & Compatibility

The T3MK77F16QV functions as a power distribution hub within the TROVE3M3/TMV2/MER16DR system architecture. Its 16 outputs allow systems integrators to power access control readers, door strike solenoids, intercom stations, and auxiliary security devices from a single supervised source. The model's modular design allows stacking multiple units in larger installations, and its output supervision provides real-time fault reporting to central monitoring systems via integrated signaling.

Installers can configure output current limits on a per-channel basis, enabling load matching for devices with varying power requirements. The 220V input voltage makes the T3MK77F16QV well-suited to installations across Europe, Asia-Pacific, and other 220V standard regions, eliminating compatibility issues and reducing bill-of-materials complexity.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Altronix T3MK77F16QV in multi-site access control deployments where centralized power management and fault isolation are non-negotiable. The 16-output architecture with individual supervision is particularly valuable in large buildings where device density and power draw variability demand granular control.

Technical Highlights:

• 220V Direct Input: Eliminates transformer overhead in compatible regions; reduces space and heat dissipation compared to step-down architectures
• 16 Supervised Channels: Each output monitored independently; a fault on one channel does not compromise the remaining 15, critical for fault-tolerant security postures
• Battery Backup Ready: Accepts auxiliary battery modules, ensuring continuity during power loss—essential for door control and access logging

Deployment Considerations:

• Verify local mains voltage (220V AC ±10%) before installation; voltage excursions outside specification may require additional conditioning
• Plan circuit load distribution during design phase; uneven loading across the 16 channels can reduce overall system efficiency and thermal headroom
• Integrate output supervision signals into your central monitoring platform to enable proactive maintenance alerting and rapid fault response

For systems integrators managing multi-node security networks, the T3MK77F16QV provides the backbone for reliable, scalable power architecture. Its compatibility with the broader TROVE3M3/TMV2/MER16DR ecosystem means you're building on a proven platform with established field documentation and support infrastructure.
