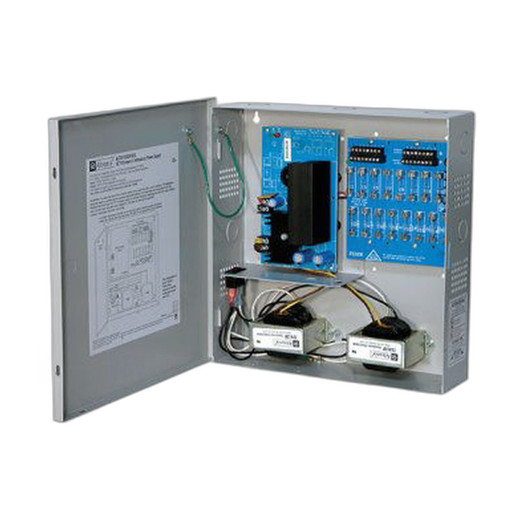

Altronix ALTV615DC616UL 16-Output CCTV Power Supply
The Altronix ALTV615DC616UL is a fixed-voltage, fused-output power distribution unit designed for CCTV camera installations, access control systems, and integrated security networks. Housed in the BC300 steel enclosure, this unit delivers regulated power across 16 independently fused outputs, making it a standard choice for multi-camera deployments where reliable, supervised power distribution is critical to system uptime.
Overview
This power supply operates on standard 115VAC input and provides selectable output voltage between 6 and 15VDC, accommodating both legacy and modern camera architectures. Each of the 16 outputs is individually fused, allowing technicians to isolate device failures without affecting the entire system. The unit's compact footprint and industrial enclosure design support both wall-mount and rack-integration installations typical in security integrator workflows.
Key Features
- 16 Individually Fused Outputs: Isolates device failures and simplifies troubleshooting on multi-camera runs
- Output Voltage Selection: Selectable 6–15VDC range accommodates diverse camera and accessory power requirements
- Maximum Output Current: 6A per output at 6VDC, with reduced capacity at higher voltage settings (4A @ 6VDC under specified load conditions)
- 115VAC Input: Standard North American mains supply compatibility
- UL Listed & CE Approved: Meets regulatory requirements for commercial security installations in North America and European markets
- BC300 Steel Enclosure: Durable, metal construction suitable for indoor installation in control rooms, telecommunications closets, and security operations centers
- Fused Protection: Individual output fuses prevent cascading failures and protect downstream equipment from overcurrent events
Integration & Deployment Considerations
The ALTV615DC616UL integrates seamlessly into analog and hybrid CCTV architectures where centralized power distribution simplifies cabling and maintenance. Security integrators benefit from the individual fuse topology—each output can be serviced independently without powering down the entire system, reducing downtime during camera or lens replacements. The 6–15VDC output range supports standard bullet cameras, dome housings, PTZ units, and auxiliary devices such as IR illuminators and access control relays. In larger installations, multiple units can be cascaded or deployed across zones to distribute load and improve fault tolerance.
Proper wire gauge selection and breaker sizing at the 115VAC input is essential for code compliance and fire safety. Consult local electrical code and the system design engineer to confirm adequate branch circuit capacity before installation.
Regulatory Compliance
UL Listed certification confirms the ALTV615DC616UL meets North American electrical safety standards for commercial use. CE approval extends applicability to European Union installations. These certifications reduce compliance risk and support insurance and regulatory sign-off requirements on larger projects.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Altronix ALTV615DC616UL in mixed-camera deployments where standardized power distribution and fault isolation are non-negotiable. The individual fusing on all 16 outputs eliminates the common failure mode of a single camera shutdown cascading across the entire run—something you'll appreciate when troubleshooting on a live site.
Technical Highlights:
- Output Current Capacity: 6A per fused output at 6VDC ensures sufficient headroom for most fixed-lens cameras, PTZ units with motor current draw, and auxiliary loads such as IR arrays or heater blowers
- Voltage Flexibility: The 6–15VDC range bridges legacy 12VDC systems and modern lower-voltage camera designs without requiring separate power conditioning
Deployment Considerations:
- In high-current applications (multiple PTZ units or high-wattage illuminators), confirm total load against 6A per-output limits; over-subscription will trip individual fuses and create false failure diagnostics
- The BC300 steel enclosure provides EMI shielding in installations near radio transmitters or high-frequency equipment—typical in telecom closet co-location scenarios
The ALTV615DC616UL is a workhorse choice for integrators who value simplicity, individual output control, and regulatory compliance. Size and fuse the input circuit correctly, respect per-output current limits, and this unit will deliver years of transparent operation.
