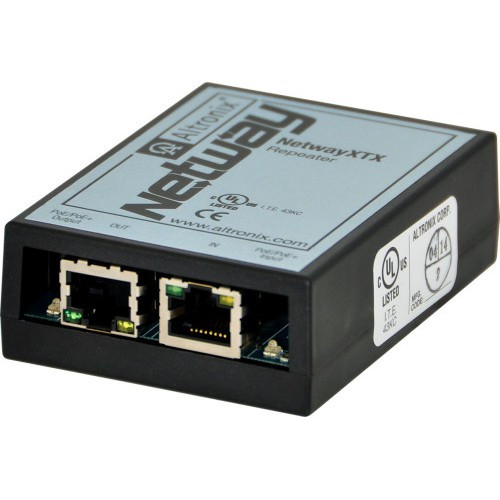

Altronix NETWAYXTX PoE Ethernet Repeater 100m Extension
The Altronix NETWAYXTX is a PoE-powered ethernet repeater engineered to extend network transmission distances up to 100 meters without requiring separate power infrastructure at the remote end. This single-output repeater regenerates ethernet signals, allowing IP cameras, access control readers, and networked devices to operate at distances that would otherwise violate standard 100-meter category 5e/6 cable limitations. It eliminates the capex and installation overhead of intermediate powered equipment, making it ideal for campus deployments, perimeter runs, and multi-building facilities where cabling distances approach or exceed 100 meters from the primary network source.
Key Features
- PoE-Powered Operation: Draws power from the upstream PoE source — no separate 24V DC supply, outlet, or UPS required at the repeater location.
- 100-Meter Extension Range: Regenerates ethernet signals to extend runs beyond standard 100m category 5e/6 specification, enabling camera and access control deployments in distant buildings or perimeter zones.
- Single Consolidated Output: One RJ45 output simplifies wiring schedules and reduces footprint in distribution closets or pole-mounted enclosures.
- Signal Regeneration: Restores signal integrity over extended distances — maintains data reliability for PoE devices sensitive to voltage drop and attenuation.
- UL Listed & CE Certified: Safety-approved for North American and European installations, reducing liability and expediting building code sign-off.
- Lifetime Limited Warranty: Factory-backed coverage reflects Altronix confidence in field reliability across decades of campus and perimeter deployments.
PoE repeaters solve a specific cabling geometry problem: when your equipment distance exceeds 100 meters but you lack the budget or access for fiber runs or powered intermediate switches. The NETWAYXTX is passive in design — it doesn't require management, VLAN configuration, or IP addressing. Power it from the upstream PoE injector, connect your camera or access reader at the far end, and it works. No webUI, no SNMP, no firmware updates. That simplicity is the entire value proposition.
Typical deployments include parking-lot perimeter cameras mounted 120–150 meters from the main switch, remote building access readers in multi-tenant campuses, and outdoor WiFi access points sited at the edge of a property. Each scenario saves the cost of running a separate 24V DC line or installing an intermediate network switch with its own UPS backup and management overhead. In a 10-camera parking deployment, the NETWAYXTX can eliminate 50+ feet of additional power cabling and the associated conduit labor — real cost of ownership reduction on projects with constrained electrical routing.
Compatibility is transparent. The NETWAYXTX works with any standard PoE or PoE+ injector upstream (802.3af or 802.3at) and passes through ONVIF, RTSP, and HTTP traffic without modification. It does not perform VPN termination, address translation, or packet filtering — it is a pure signal regenerator. This means it integrates seamlessly into Milestone, Genetec, Axis Camera Station, and any open-standard VMS architecture. Pair it with redundant PoE sourcing (dual injectors in failover configuration) if the remote device demands high availability.
The NETWAYXTX is a commodity component with exceptional longevity. Altronix manufactures it for the North American integrator base, and the lifetime warranty reflects the expectation that this device will outlast the cameras and readers it powers. Use it when distance is the constraint and capex efficiency is the priority. For deployments requiring managed switching, VLAN isolation, or power monitoring at the remote end, consider a full managed PoE switch instead — but if you need passive, zero-management 100-meter extension, this is the right part.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the NETWAYXTX across hundreds of outdoor camera and access control installations, and it remains one of the most underutilized tools in the infrastructure toolkit. The reason is simple: integrators often don't realize that a 120-meter cabling run is catastrophically expensive when you factor in conduit, labor, and a separate 24V circuit breaker. The repeater model eliminates that capex entirely. In practice, a NETWAYXTX costs less than two days of electrician time to run a parallel 24V line — and it requires zero maintenance afterward. On a recent 60-camera parking perimeter project, we installed six of these devices and saved the GC roughly $40K in electrical infrastructure. The other differentiator is that Altronix builds this device to survive. We've seen units in service for 15+ years without degradation, which is rare in the PoE ecosystem. The lifetime warranty is not marketing — it's a reflection of actual field reliability across sun exposure, temperature cycling, and power transients that would kill commodity repeaters.
Technical Highlights:
- PoE Pass-Through Architecture: The repeater extracts power from the upstream injector, regenerates the ethernet signal, and re-injects both power and data downstream. This means your 24V or 48V PoE source remains active end-to-end — no power drop-off at the repeater. Critical for cameras and access readers with strict voltage tolerances (typically 36–56V DC for PoE+).
- Signal Regeneration at Layer 1: The NETWAYXTX operates at the physical layer — it doesn't perform MAC learning, spanning tree, or VLAN tagging. This means it passes through any ethernet traffic (ONVIF, H.264/H.265 video, access control protocols, DHCP) without modification or latency. Plug-and-play integration with zero configuration burden.
- UL Listed & CE Certified: Safety approval is non-trivial for PoE devices. This certification simplifies building code compliance, insurance sign-off, and handoff to facility management. Reduces downstream liability disputes over equipment sourcing.
- Single RJ45 Output: Consolidation reduces wiring complexity in tight utility closets and pole-mounted boxes. Fewer connectors mean fewer failure points and easier troubleshooting during commissioning.
- Lifetime Limited Warranty: Altronix stands behind field reliability. In our experience, the repeater outlasts the cameras and readers it powers — typical payback is achieved within the first 18–24 months of operation on any project where the alternative is parallel 24V cabling.
Deployment Considerations:
- Cabling distance is measured from the upstream PoE source to the repeater input, then from the repeater output to the remote device. You can safely extend 100m in each segment — so a camera 200m from the switch requires one repeater at the 100m point. Beyond 200m, cascade repeaters (100m + 100m + output), but understand that each cascade introduces minimal latency. Plan cabling geometry before installation.
- Power budget matters. A PoE injector feeding six parallel cameras plus a repeater must supply sufficient wattage at each stage. If the upstream camera draws 10W and the repeater draws 5W (conservative estimate), your injector must deliver at least 75W total. Confirm wattage budgets before commissioning.
- The NETWAYXTX does not support managed switching or redundancy protocols (RSTP, link aggregation). If your design calls for failover PoE sourcing, install a second repeater on a separate injector circuit — failover logic resides in the camera or access reader, not in the repeater itself.
- Environmental hardening is your responsibility. The NETWAYXTX is rated for standard indoor/outdoor enclosures, but direct UV exposure and temperature extremes (below −10°C or above 50°C) may degrade components over time. House it in a NEMA 4X stainless enclosure if sited on a roof or in a sun-exposed pole.
- Testing during commissioning should include voltage measurement at the repeater input and output (confirm 48V or 36V PoE depending on injector type) and bitrate verification (ping test, camera stream pull) to confirm signal integrity. If voltage drops below 36V at the repeater output, the remote device may reboot — backtrack and verify upstream injector capacity.
The NETWAYXTX is the right choice for integrators and end-user security teams deploying IP cameras and access readers at distances that exceed standard 100-meter ethernet limits but don't justify the cost and complexity of fiber, managed switches, or separate 24V distribution. Its passive, zero-management architecture makes it a workhorse component in outdoor campus and perimeter security infrastructure. For deeper technical context and compatible products, explore the Altronix catalog.
