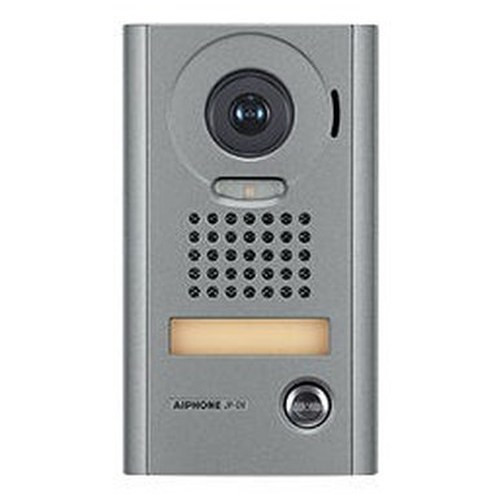

Aiphone JP-DV Surface Mount Vandal Video Door Station
Overview
The Aiphone JP-DV is a compact, wall-mounted video door station engineered for the JP Series intercom ecosystem. It pairs a rugged aluminum die-cast housing with a 1/4" CMOS camera delivering a 100° × 170° wide viewing angle—wide enough to capture the entire entry without forcing visitors to stand directly in frame. Hands-free audio, automatic LED illumination for low-light conditions, and straightforward 2-conductor wiring make it practical for multi-unit residential complexes and commercial entry points where durability and simplicity matter more than bleeding-edge optics.
Key Features
- 1/4" CMOS Camera with Digital PTZ: 100° × 170° viewing angle covers a wide entry zone without dead spots. Digital pan, tilt, and zoom control from the master station lets you inspect details without moving the physical unit—useful when the door station is mounted high or in an awkward angle.
- PoE Power Delivery: Draws power directly from your Aiphone JP Series master station via 2-conductor wiring. No separate power supply or voltage regulator required—one less component to fail or troubleshoot on site.
- Auto LED Illumination: Activates when ambient light drops below 5 lux, ensuring the camera captures usable video during dusk, overcast days, or dim entryways. Reduces false alarms from poor visibility and speeds up tenant identification during evening/night shifts.
- Hands-Free Open Voice with Auto-Voice Actuation: Two-way audio communication is always live once a call is initiated from the master station. Auto-voice actuation means visitors don't need to hunt for a call button—speech triggers the intercom automatically, improving accessibility for elderly residents or those with mobility constraints.
- Vandal-Resistant Aluminum Die-Cast Housing: Solid aluminum construction resists forced entry attempts, dents, and casual tampering. Operating temperature range of -4°F to 140°F (-20°C to 60°C) tolerates freeze-thaw cycles, coastal salt spray environments, and hot industrial applications without degradation.
- Surface Mount or 1-Gang Box Installation: Mounts directly to exterior walls or standard electrical boxes using an optional MKW-P mounting plate. Reduces rough-in complexity on retrofit jobs and permits straightforward relocation if building access routes change.
Integration & Compatibility
The JP-DV integrates exclusively with Aiphone JP Series master stations and video intercom sets. It communicates over standard 2-conductor twisted-pair wiring (Aiphone #871802 recommended) with maximum run distances of 165 feet at 22 AWG or 300 feet at 18 AWG. If your existing infrastructure is already wired for analog intercom, the JP-DV can often reuse those runs—saving labor on dense multi-unit installations. All power and signal originate from the master station, so there's no local power connection to manage at the door unit itself.
Consider a related IP camera system if you require cloud recording, remote mobile app access, or integration with third-party video management software beyond the JP Series ecosystem. The JP-DV is purpose-built for closed, self-contained intercom deployments and does not offer ONVIF, RTSP, or network streaming capabilities.
When to Choose a Different Model
If your requirement includes:
- Higher resolution or zoom capability for facial recognition in security-critical applications—explore higher-megapixel options within the Aiphone line.
- Network video integration, mobile app viewing, or cloud backup—step outside the JP Series to a standalone outdoor IP camera paired with a separate intercom or access control system.
- Sub-zero environments below -4°F (e.g., arctic shipping ports, cold storage facilities)—confirm operating limits with Aiphone technical support before committing.
Physical Specifications
- Dimensions: 6-13/16" H × 3-7/8" W × 1" D — compact enough to fit beside standard door frames without crowding.
- Weight: 1.43 lbs — light enough for secure wall mounting without heavy-duty structural brackets on most wall types.
- Operating Temperature: -4°F to 140°F (-20°C to 60°C) — suitable for HVAC-exposed areas and unheated entryways.
Frequently Asked Questions
Q: Can I use the JP-DV with a non-Aiphone master station?
A: No. The JP-DV is designed exclusively for Aiphone JP Series master stations and video intercom sets. It does not support third-party systems or standalone deployment.
Q: What's the maximum cable run distance?
A: 165 feet at 22 AWG wire or 300 feet at 18 AWG wire. Longer runs will cause voltage drop and may prevent the unit from powering up. Use heavier gauge (18 AWG) for installations exceeding 165 feet.
Q: Does the JP-DV record video?
A: No. The JP-DV is a live intercom door station only. It does not include internal recording, microSD slot, or network export. Recording requires integration with a separate network video recorder or the master station's built-in storage (if equipped).
Q: Will the auto-LED illumination work in complete darkness?
A: The LED activates when ambient light falls below 5 lux (very dim). It provides enough illumination for the camera sensor to capture usable video in darkness, but the output is monochrome and detail is limited compared to daylight. For critical night security, consider supplemental flood lighting at the entry.
Q: What mounting hardware is included?
A: The unit ships with internal components only. The optional MKW-P mounting plate is a separate purchase and required for standard wall or 1-gang box mounting.
Q: Is the JP-DV weatherproof for outdoor rain and snow?
A: Yes. The aluminum die-cast housing is weather resistant and rated for vandal resistance. However, the unit is not submersible and should not be mounted in locations subject to standing water or active water spray (e.g., under a leaky gutter). Mount under an eave or awning in wet climates.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The JP-DV is a no-nonsense door station—it does one job and does it reliably. That 100° × 170° wide angle and digital PTZ from the master station let you see and inspect the entire entry without repositioning hardware. For apartment buildings and office parks already standardized on Aiphone intercom infrastructure, this unit integrates cleanly without forcing a rip-and-replace.
Technical Highlights:
- 2-Conductor Wiring at 300 feet (18 AWG): Reduces rough-in cost and complexity compared to network-based cameras requiring PoE runs and gigabit Ethernet termination. On retrofit jobs in older buildings, you often reuse existing intercom conduit.
- Auto-LED at 5 lux threshold: Activates early enough to maintain usable monochrome video during deep dusk—important for capturing evening visitor interactions without relying on exterior flood lights.
- Aluminum die-cast housing, -4°F to 140°F operating range: Handles coastal salt spray, freeze-thaw cycles, and industrial heat without housing degradation. The weight (1.43 lbs) permits secure mounting on standard wall studs or electrical boxes without structural reinforcement.
Deployment Considerations:
- Closed ecosystem: The JP-DV does not output ONVIF, RTSP, or cloud streams. If you need mobile app viewing, cloud backup, or VMS integration beyond the JP Series, you'll need a separate IP camera system—the JP-DV cannot retrofit into a network architecture.
- Master station dependency: All power and signal originate from the master station. If the master fails, the door station goes offline. This also means video recording (if desired) requires the master station to have integrated recording capability or a connected external recorder—there's no local recording at the door unit itself.
Best fit: multi-unit residential or small commercial deployments where intercom is the primary entry access tool and the tenant base is accustomed to pressing a call button rather than expecting instant mobile alerts. The straightforward 2-conductor wiring and vandal-resistant housing make it ideal for high-traffic public entries where repair costs need to stay predictable.
