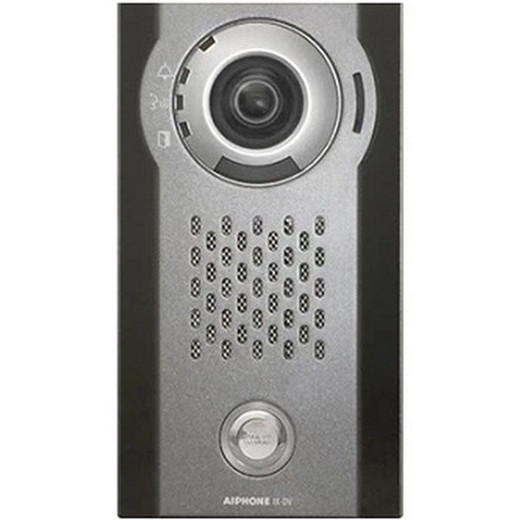

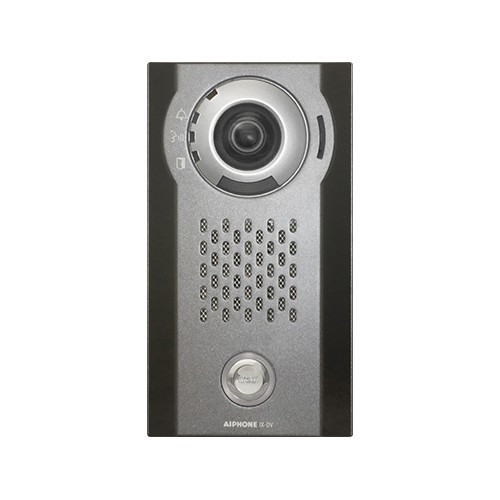

Aiphone IX-DV Surface Mount IP Video Door Station
Overview
The Aiphone IX-DV is a surface-mounted IP video intercom designed for exterior entry control and visitor verification at building entrances. Built with an aluminum diecast enclosure, it delivers 2MP video capture with white LED illumination for reliable low-light operation. The unit is rated IP54 (dust and splash protection) and IK08 (impact resistance to 5 joules), making it suitable for high-traffic outdoor locations where weather and accidental contact pose a real threat. This is a straightforward door station — no frills, but engineered to survive repeated abuse and sustained environmental exposure.
Key Features
- 2MP Video Capture: Delivers sufficient resolution for facial identification and visitor recognition at a typical door entrance. H.264 compression keeps bitrate manageable (critical if you're recording 24/7 on bandwidth-constrained connections or local microSD card storage).
- PoE+ Power (802.3at Type 2): Draws 5.28W max, so it will run on a standard 95W PoE+ injector or switch port without straining your power budget. No separate 24V DC supply required, though 24V DC is also supported as a fallback.
- IP54 Weatherproofing: Dust and water spray won't penetrate the enclosure. This means you can mount it in open-air entry porches, loading docks, and sheltered exterior locations. Skip this if you need full submersion protection (IP67) — this unit is splash-resistant, not submersible.
- IK08 Vandal Resistance: Withstands 5-joule impact (roughly equivalent to a rubber mallet strike). Aluminum diecast housing won't dent or crack easily, a real factor in high-traffic or high-risk environments.
- White LED Illumination: Built-in LEDs provide fill light for low-light capture without requiring an external IR array or separate lighting circuit. Useful when mounting in shaded entry alcoves or dimly lit corridors.
- microSD Card Recording: Local backup recording capability lets you store video on an onboard card without relying on a central NVR. Valuable for sites where network recording is unreliable or where you need edge-local retention.
- SIP and ONVIF Profile S Compliance: Integrates seamlessly with Aiphone IX and IXG series systems, and with any third-party VMS or SIP infrastructure that supports open standards. You're not locked into a proprietary ecosystem.
- Dual Contact Outputs + Six Trigger Inputs: Flexibility for door release automation, relay signaling, and external sensor integration (motion sensors, push-buttons, etc.). Typical enterprise integrators will find this sufficient for simple access control workflows.
- RTSP Video Streaming: Real-time streaming protocol support ensures compatibility with standard video management platforms. No proprietary streaming codec to decode.
- Manual Camera Angle Adjustment: Tilt options (+15°, 0°, -8°) allow fine-tuning of the viewing plane during commissioning. Critical if your entrance has awkward geometry or you need to capture a specific height range.
- IEEE 802.1X Port Security: Built-in support for network authentication; the unit can be bound to a controlled access network with certificate-based authentication, a requirement in some enterprise and government deployments.
- Wide Operating Temperature Range: Rated -40°F to 140°F (-40°C to 60°C), so it will function in harsh climates — frozen northern winters or hot desert installations without enclosure heating or cooling.
Integration and Compatibility
The IX-DV integrates into larger IP intercom systems via SIP and ONVIF Profile S protocols. It works with the Aiphone IX and IXG product families for centralized call handling and access control. If you're deploying into a mixed-vendor environment, ONVIF compliance means you can pull the video stream into your existing NVR or VMS platform without specialized bridges. For PoE power planning, confirm your managed switch has sufficient available 802.3at budget; 5.28W per unit is low, but cumulative load across multiple door stations adds up quickly on undersized infrastructure.
When to Choose a Different Model
If you need higher resolution (4MP or above) for long-distance facial recognition or license plate capture, consider a higher-megapixel variant in the Aiphone product line. If you require integrated card readers for proximity-based access, or need modular reader compatibility, evaluate dedicated access control readers paired separately. If your site demands full submersion capability (pool areas, car wash entrances), step up to IP67-rated equipment. The IX-DV is purpose-built for typical outdoor door station duty — if your application pushes beyond standard entry verification, a different architecture may be more cost-effective.
What's in the Box
- 1x Aiphone IX-DV Door Station
- 1x Surface Mount Bracket
Frequently Asked Questions
Q: Can the IX-DV be flush-mounted, or only surface-mounted?
A: The IX-DV is designed for surface mounting using the supplied bracket. Flush mounting would require custom enclosure work and is not a supported configuration.
Q: What compression formats does the IX-DV support?
A: H.264 and motion JPEG. H.264 is recommended for 24/7 recording to minimize storage and bandwidth overhead; MJPEG is useful for low-frame-rate snapshot recording or archival applications.
Q: Is the IX-DV compatible with non-Aiphone VMS platforms?
A: Yes. ONVIF Profile S compliance and RTSP streaming support mean you can integrate the IX-DV into third-party systems like Milestone XProtect, Hanwha Techwin, or other ONVIF-aware VMS products.
Q: How much power does the IX-DV consume, and will it work on standard PoE+?
A: The unit draws 5.28W maximum via PoE+ (802.3at Type 2) or 24V DC. Standard 95W PoE+ switches and injectors will easily support multiple IX-DV units without power derating.
Q: Does the IX-DV support two-way audio?
A: Yes. The unit includes microphone input and speaker output for hands-free intercom communication, standard for IP video door stations in the Aiphone family.
Q: What is the maximum microSD card capacity for local recording?
A: The datasheet specifies microSD card support for local video storage. Check current device firmware documentation for maximum tested capacity; typical modern deployments use up to 256GB or 512GB cards.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Aiphone IX-DV is a workhorse IP door station for sites that need straightforward entry verification without fancy analytics or modular reader frameworks. At 2MP with H.264 compression, it's neither cutting-edge nor underpowered — it sits in the practical middle ground where most outdoor door installations live. The IX-DV draws only 5.28W, which matters if you're provisioning dozens of units across a campus or warehouse complex; that low draw means you won't blow through your PoE+ switch budget on door stations alone.
Technical Highlights:
- 2MP + H.264: Sufficient for facial recognition at typical entry distances (3–6 feet). H.264 compression will cut your storage footprint roughly in half versus MJPEG for equivalent quality, a real advantage if you're archiving to local microSD cards or bandwidth-constrained WAN links.
- IP54 + IK08: Dust and splash protection plus 5-joule impact resistance. This matters in loading docks, outdoor kiosks, and high-traffic pedestrian zones. Not submersion-proof, but weather-sealed for most outdoor climates.
- White LED illumination + manual tilt: No reliance on external IR or lighting arrays. The manual angle adjustment (+15° to -8°) handles most mounting heights without needing servo-controlled optics — saves cost and complexity.
- SIP/ONVIF + microSD recording: Standard protocols and edge storage mean you're not hostage to a proprietary NVR. Drop a card in, get local backup video. Pull the stream into Milestone or Hanwha Techwin if that's your platform.
Deployment Considerations:
- The -40°C to 60°C operating range is genuine Arctic-to-desert coverage, but confirm your PoE injector or switch port is rated for the same ambient before deploying into extreme climates. A freezing switch port won't power the door station reliably.
- The 802.1X support is solid for managed enterprise networks, but don't expect plug-and-play if your site requires certificate pinning or custom RADIUS integration — coordinate with your network team during commissioning.
- Manual tilt adjustment is fine-tuning, not automation. If your installation requires dynamic angle changes or remote PTZ capability, you need a different product class.
Deploy the IX-DV for tenant entry verification, warehouse receiving docks, and multi-tenant office buildings where you need reliable visitor capture and access control integration without complexity. It's not the flashiest option, but it's proven and vendor-agnostic — exactly what integrators reach for when they need a door station that doesn't require training customers on proprietary ecosystems.
