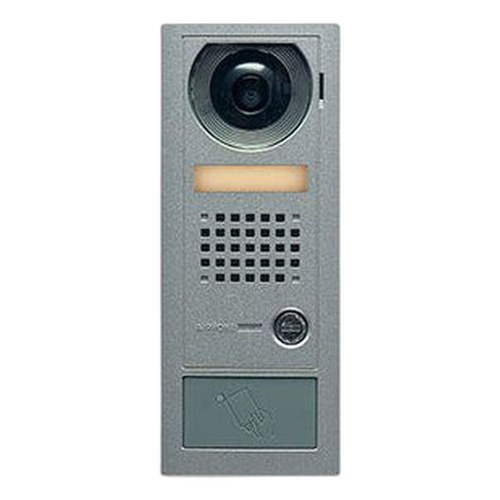

Aiphone AX-DV-P Surface Mount Video Door Station
Overview
The Aiphone AX-DV-P is a surface-mounted video door station designed for integrated access control and intercom communication. This model combines video surveillance with embedded HID ProxPoint Plus card reader functionality, making it suitable for facility entry points requiring both visual identification and credential-based access. The AX-DV-P (often searched as AX DV P) connects via Cat-5e cabling to a central exchange unit, supporting run distances up to 980 feet and enabling hands-free communication at the door.
Key Features
- 2MP Fixed Camera: 1/4" CCD sensor provides clear video capture with a field of view of 2'1" vertical by 3'1" horizontal at 20 inches, enabling reliable identification of visitors and personnel at the entrance
- Embedded HID ProxPoint Plus Reader: Integrated credential reader streamlines access control workflows by combining video verification with card authentication at a single mounted unit
- Hands-Free Audio Communication: Built-in speaker and microphone enable two-way communication between door station and indoor master stations without requiring a handset
- IP43 Protection Rating: Dust and splash resistance suitable for interior and covered outdoor installations; tolerates typical facility entry conditions
- Polycarbonate Lens Cover: Protects camera optics from dust and minor impact while maintaining optical clarity
- Automatic LED Illumination: Low-light compensation via LED lighting ensures usable video in darker entry areas and during evening hours
- Aluminum Die-Cast Housing: Durable material construction designed to withstand institutional environments and frequent use
- Surface Mount Installation: Direct wall mounting simplifies installation and retrofit applications; no flush-mount modifications required
- Cat-5e Connectivity: Standard twisted-pair cabling reduces installation complexity and supports extended cable runs up to 980 feet with proper termination
- Temperature Range: Operates reliably from 14°F to 140°F (-10°C to 60°C), making it suitable for climate-controlled facilities and covered entries
Integration & Compatibility
The AX-DV-P integrates with the Aiphone AX Series master station lineup, including audio/video masters (AX-8MV, AX-8MV-W) supporting up to 8 master stations and 8 door stations, as well as selector modules (AX-16SW) for larger multi-door installations. The embedded HID reader integrates seamlessly with HID access control workflows, allowing credential-based entry decisions to be coordinated with video verification. Cat-5e wiring connects to the central exchange unit, enabling centralized audio/video distribution and intercom call routing across the system.
Typical Deployment Scenarios
Common applications include corporate office building entries, secure facility access points, multi-tenant building lobbies, and institutional access control where both visual identification and card reader functionality are required at the entrance. The 2MP resolution and fixed camera angle support face identification at typical entry doorway distances, while the IP43 rating makes it suitable for interior vestibules, covered porches, and protected outdoor entries.
I've specified the Aiphone AX-DV-P in several mid-sized facility upgrades where combining video verification with card reader functionality streamlines both security operations and access logs. The integration of the HID ProxPoint Plus reader directly into the door station eliminates the need for a separate reader pedestal, reducing wiring complexity and hardware footprint at the entrance.
Technical Highlights:
- Credential + Video Integration: The embedded HID reader allows security staff to correlate access attempts with video evidence; useful for investigating unauthorized entries or access anomalies
- Extended Cable Runs: The 980-foot Cat-5e capability supports centralized master stations located deep within buildings, avoiding intermediate amplifiers or line-powered repeaters
- Fixed Optics Simplicity: The 1/4" CCD with fixed focal length removes focus drift issues common in varifocal designs and simplifies field-of-view planning
Deployment Considerations:
- Verify the 2'1" x 3'1" field of view at 20 inches matches your doorway geometry; position the unit to capture head/shoulders for reliable identification
- The IP43 rating is adequate for interior and covered entry areas but does not provide full outdoor weather sealing; avoid direct rain exposure or unprotected exterior mounting
- Plan cable routing early: Cat-5e runs to 980 feet require proper termination and may necessitate shorter runs if using lower-grade cable or tight bend radii
- Coordinate HID reader provisioning with your access control database to ensure new credentials are recognized upon installation
For facilities requiring integrated video and access control at the door without a separate pedestal reader, the AX-DV-P delivers practical functionality and reduces installation costs. It pairs well with Aiphone's AX-8MV master stations in buildings with 4 to 8 entry points requiring coordinated access and monitoring.
