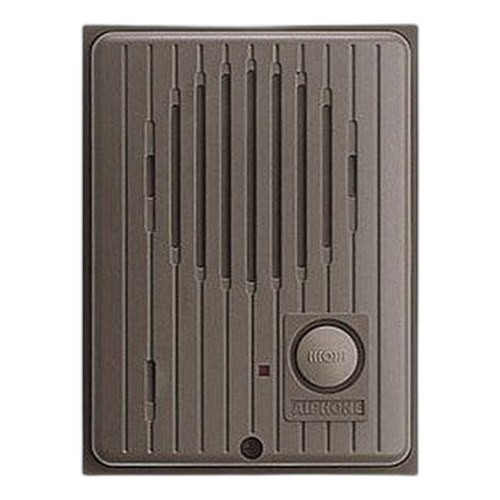

Aiphone IF-DA Surface Mount Door Station
Overview
The Aiphone IF-DA is a compact surface-mount door station engineered for hands-free entry communication in indoor and covered outdoor environments. Built from ABS plastic with an IP43 protection rating, it mounts directly to a standard 1-gang box or ring, keeping installation footprint minimal. A locator LED adjacent to the call button provides visual feedback in low-light conditions—critical for visitor identification during evening hours. The IF-DA integrates with Aiphone master stations, making it part of a cohesive intercom ecosystem rather than a standalone camera.
Key Features
- 2MP Resolution: Delivers 1920×1080 effective detail for facial recognition and package identification at the door. Sufficient for residential and light commercial entryways; if multi-angle or long-distance verification is required, consider a higher-megapixel variant in the Aiphone family.
- PoE (802.3af) Power: Draws under 13W, so it won't strain standard switch power budgets. No separate 12VDC supply or cable run needed—one cable handles both power and data.
- IP43 Environmental Rating: Protects against splash and light dust. Suitable for covered porches, vestibules, and interior hallways. Not rated for direct rain exposure or coastal spray—those environments require IP66 or higher.
- Infrared Night Vision: Enables visitor identification after dark without supplemental lighting. Practical for 24/7 entry monitoring, though range is moderate compared to larger bullet cameras.
- Hands-Free Communication Protocol: Integrates with compatible Aiphone master stations (AX-8M audio; AX-8MV and AX-8MV-W audio/video models), allowing residents to answer calls and unlock doors from inside without manually lifting a handset.
- ABS Plastic Construction: Lightweight and corrosion-resistant. Less rugged than die-cast aluminum under impact, but adequate for protected mounting locations.
- Operating Range: 14°F to 140°F (-10°C to 60°C): Handles typical indoor and mild outdoor climates. Not suitable for unheated garages or extreme cold zones without additional thermal management.
- 2-Conductor Shielded Twisted Pair Wiring: Compatible with Aiphone #822202 or #821802 cable. Keeps cabling simple and reduces installation complexity compared to multi-pair video/audio separation.
Integration and Compatibility
The IF-DA pairs exclusively with Aiphone master stations. Audio models (AX-8M) deliver intercom-only function; audio/video models (AX-8MV, AX-8MV-W) display live video on the master unit screen during calls. This is a manufacturer-locked ecosystem—you cannot bridge to third-party SIP or ONVIF systems. If you require open-standard intercom integration or VMS software recording, the IF-DA is not the correct choice.
When to Choose a Different Model
If your environment is fully outdoor, unprotected, or requires IP66 rating, the IF-DA is undersized. If you need to record video 24/7 to a network video recorder or cloud storage, or integrate with non-Aiphone master stations, you would be better served by a standalone IP camera with ONVIF support. The IF-DA is purpose-built for Aiphone's closed intercom architecture, not general surveillance.
Deployment Context
The IF-DA shines in controlled-access environments: residential multi-family buildings with a central intercom desk, secure office building lobbies, and apartment complexes where a resident or security guard monitors calls from a master station inside. It is not a camera for network video recorder integration or cloud video storage. It is an intercom endpoint, and your master station determines the full system capability.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Aiphone IF-DA (often searched as IF DA) is a dead-simple door station for closed-loop intercom systems. If you're wiring a residential or light commercial building for hands-free entry, it does one job well: pair a 2MP camera and call button to an Aiphone master unit so residents can see and talk to visitors without opening the door. No network recording, no VMS, no open standards—just intercom.
Technical Highlights:
- PoE 802.3af (under 13W): Eliminates the need for a separate 12VDC power supply and keeps your switch's power budget clean. Standard POE injectors or PoE switches support it without special provisioning.
- IP43 splash protection: Safe for covered porches and interior vestibules. Not outdoor-rated for direct rain or coastal spray—watch that constraint if you're tempted to mount on an exposed south-facing wall.
- 2MP + infrared: Adequate for evening visitor ID and package recognition. Don't expect the range or detail of a dedicated 4MP or 5MP bullet; this is intercom-class optics, not surveillance-grade.
Deployment Considerations:
- Master station model (AX-8M vs. AX-8MV) determines whether you see video on the inside monitor. The IF-DA itself is video-capable, but audio-only masters won't display it. Size your master unit before committing to the door station.
- The IF-DA requires Aiphone's proprietary wiring and master hardware. You cannot retrofit it to a third-party intercom system or SIP gateway without a bridge device, and Aiphone does not ship one with this unit.
- Operating temperature range (-10°C to 60°C / 14°F to 140°F) is reasonable for indoors and mild climates, but unheated entryways or freezing outdoor applications need thermal consideration.
The IF-DA is the right fit for apartment buildings, office lobbies, and secure multi-tenant facilities where a single security or concierge desk monitors intercom calls all day. It is not suitable for standalone surveillance, cloud video storage, or integration with corporate VMS platforms. Choose this only if you have committed to an Aiphone master station.
Frequently Asked Questions
Q: Can I record video from the IF-DA to a network video recorder?
A: No. The IF-DA is designed to feed video only to an Aiphone master station (AX-8MV or AX-8MV-W). It does not output ONVIF or RTSP streams for third-party recording. If you need NVR integration, you would need a standalone IP camera instead.
Q: What is the night vision range on the IF-DA?
A: The IF-DA includes infrared night vision but specific range specifications are not provided in manufacturer documentation. Expect moderate range typical of compact door station IR (approximately 5–15 feet). Contact Aiphone directly for detailed IR performance data if critical to your deployment.
Q: Does the IF-DA work with non-Aiphone intercom systems?
A: No. The IF-DA is designed exclusively for Aiphone master stations (AX-8M, AX-8MV, AX-8MV-W). It uses proprietary wiring and signaling and cannot integrate with third-party SIP intercoms, VoIP systems, or other manufacturers' intercom hardware without external integration devices.
Q: Is the IF-DA rated for outdoor use?
A: The IF-DA carries an IP43 rating, suitable for covered outdoor areas (porches, vestibules) but not for direct rain or unprotected exterior walls. For full outdoor exposure, consider a higher IP-rated model or a dedicated outdoor IP camera.
Q: What power supply does the IF-DA require?
A: The IF-DA operates via PoE (802.3af), drawing under 13W. No separate 12VDC supply is needed. Any standard PoE-equipped network switch or PoE injector will power it.
Q: What cabling does the IF-DA require?
A: The IF-DA uses 2-conductor overall-shielded twisted pair wiring. Aiphone recommends part #822202 or #821802 cables. Standard Cat5e/Cat6 Ethernet also works for PoE delivery, though Aiphone's proprietary cable may offer better signal integrity for the intercom signaling protocol.
