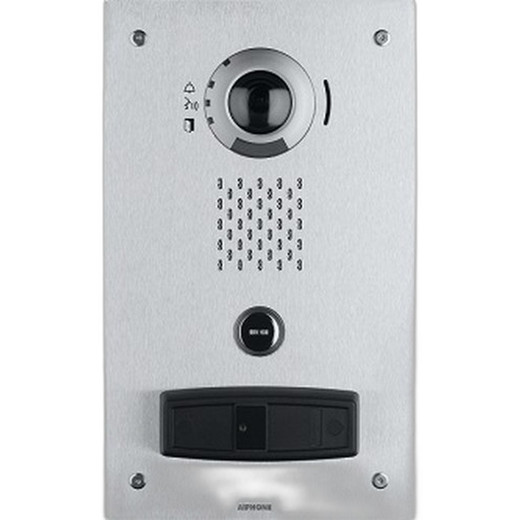

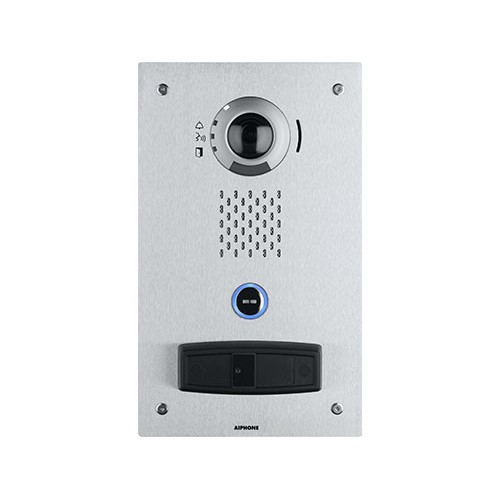

Aiphone IX-DVF-PR Flush-Mount IP Video Door Station with Proximity Reader

Aiphone IX-DVF-PR Flush-Mount IP Video Door Station with Proximity Reader

Overview

The Aiphone IX-DVF-PR is a flush-mount IP video door station that merges visitor identification and credential-based access control into a single weatherproof endpoint. It pairs a 1.23 megapixel fixed camera with a built-in AC-PROX-1G proximity reader supporting 125kHz Wiegand credentials, eliminating the need for separate intercom and card reader hardware at the entrance. The stainless-steel vandal-resistant housing and IP65 rating make it suitable for exposed outdoor installations where durability and weather sealing matter. The IX-DVF-PR operates on PoE+ (802.3at Type 2) standard Cat-5e/6 cabling, delivering power and data over a single run—no separate 24V supply required. ONVIF Profile S compliance and SIP interoperability ensure this device integrates with third-party video management systems and access control platforms, not just native Aiphone IP cameras.

Key Features

• 1.23 Megapixel Fixed Camera: 1/3" CMOS sensor at 2MP resolution delivers sufficient detail for visitor identification and real-time monitoring. Fixed focal length simplifies installation—no focus drift or lens creep over time, but you lose zoom capability if recognition at distance is critical.
• White LED Illumination for Low-Light Operation: The built-in white LED ensures usable video capture down to 5 lux ambient light without switching to infrared. This matters in covered lobbies or dawn/dusk entries where IR would wash out warm-tone skin tones. No IR capability means near-infrared isn't available for covert night monitoring.
• Manual Vertical Camera Angle Adjustment: Tilt angles of +15°, 0°, or -8° allow you to frame the visitor's face and chest region correctly regardless of mounting height or entrance geometry. Misaligned cameras degrade facial recognition accuracy, so this adjustment prevents that common deployment mistake.
• Built-in 125kHz Proximity Card Reader: The AC-PROX-1G reader supports Aiphone 40-bit, HID, AWID, and Pyramid credential formats with a 6-inch non-contact read range. Requires wiring to an access control system via standard Wiegand interface—this device does not manage door locks independently; it only reads and reports credentials.
• IP65 and IK08 Ratings: IP65 protects against dust ingress and directed water jets (rain, washdown). IK08 withstands 5 joule impacts—enough to resist casual vandalism but not deliberate prying. If you need explosive-resistant or extreme security hardening, this isn't the tier for that.
• Dual Audio Codecs (G.711 and G.722): Two-way audio with 73–96 dB output volume covers typical entrance distances. G.722 offers better voice clarity at lower bandwidth if your network prioritizes audio quality; G.711 is the legacy standard most VoIP systems expect.
• H.264 and Motion JPEG Compression: H.264 reduces storage footprint compared to Motion JPEG, meaningful if you retain footage long-term or record across multiple cameras. H.264 encoding consumes slightly more CPU on the device but saves 30–50% bandwidth in typical scenes.
• Two Contact Outputs and Six Trigger Inputs: Relay outputs can trigger door strikes or auxiliary alarms; trigger inputs accept signals from door sensors, motion detectors, or access control system events. Enables basic automation logic without a separate relay module.
• microSD Card Slot: Local video recording up to card capacity (often 256GB+) provides failsafe archival if your network recorder is offline or disconnected. Useful for compliance and audit trails but requires periodic card swaps or network-based archive transfer.
• PoE Pass-Through (802.3at Type 2): Pass-through ports allow daisy-chaining a downstream PoE device—such as an outdoor access point or IP speaker—without adding a separate switch port. Saves switch cost in small installations but increases cable runs and creates a single point of failure if the IX-DVF-PR loses power.

Integration and Compatibility

The IX-DVF-PR supports IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, and DNS. ONVIF Profile S compliance means it streams video to third-party VMS platforms like Milestone XProtect, Genetec Security Center, or open-source systems—not locked into Aiphone software. It integrates seamlessly with all Aiphone IX and IXG series door stations and master stations, enabling modular multi-unit deployments. IEEE 802.1X port-level authentication prevents unauthorized network access, hardening the device against rogue endpoint connections. Power draw is minimal: 5.28W typical, well within standard 802.3af 15.4W budget. Operating temperature range is -40°F to 140°F (-40°C to 60°C); the proximity reader operates independently at -35°C to 60°C. Dimensions are 11-11/16" H × 7" W × 2-1/16" D with a back box for flush mounting. The device holds CSA, FCC, CE, and C-Tick regulatory approvals.

When to Choose a Different Model

If your entrance requires higher-resolution facial recognition (4MP or above) or long-distance zoom, consider a higher-megapixel variant in the Aiphone IX series. If you need active infrared night vision in a fully dark space (0 lux), the white LED approach won't suffice—specify an IR-equipped model instead. If the proximity reader isn't part of your access control strategy and you only need video intercom, a simpler IX-DVF (without the reader) reduces cost and complexity. For indoor-only lobbies where vandalism is not a concern, non-rated stainless housings may provide a cost advantage.

FAQ

Frequently Asked Questions

Q: Does the IX-DVF-PR require a separate access control panel or can it manage door locks on its own?

A: The proximity reader only reads credentials and outputs Wiegand signals. You must wire the Wiegand output to a compatible access control system (such as an Aiphone master station or third-party controller) to manage the door lock. The IX-DVF-PR does not lock or unlock doors directly.

Q: Can the IX-DVF-PR daisy-chain multiple downstream PoE devices?

A: Yes. The built-in PoE pass-through (802.3at Type 2) supports one downstream device. If you need more, add a separate PoE switch rather than relying on pass-through, which creates a single point of failure.

Q: What credential formats does the AC-PROX-1G reader support?

A: The reader supports Aiphone 40-bit, HID, AWID, and Pyramid 125kHz proximity credentials. If you use iClass, DESFire, or other high-frequency cards, this reader will not recognize them—verify compatibility with your existing card stock before deployment.

Q: Is the camera resolution sufficient for facial recognition at typical entrance distances?

A: At 1.23 MP, the IX-DVF-PR provides adequate detail for visitor identification at 3–6 feet (typical entry distance) but does not meet forensic facial recognition standards (typically 4MP+). Use it for general visitor verification and credential audit trails, not as a primary biometric capture device.

Q: Does the IX-DVF-PR work with Milestone XProtect or other third-party VMS platforms?

A: Yes. ONVIF Profile S compliance ensures interoperability with most major VMS platforms. Confirm with your VMS vendor that ONVIF video streaming and event integration are supported for this specific device class.

Q: What happens if the PoE power is interrupted?

A: The device loses power immediately—no battery backup is built in. If you need 24/7 operation during power loss, add an uninterruptible PoE injector or UPS to the network upstream.

James Everett

The Aiphone IX-DVF-PR pairs a practical 1.23 MP fixed camera with a straightforward 125kHz proximity reader in a single flush-mount package. It's not a flagship device, and it doesn't pretend to be. What it does is eliminate cable clutter and mounting complexity at the entrance by combining video intercom and badge access into one PoE-powered unit. That simplification has real value in retrofit installations and crowded entry vestibules.

Technical Highlights:

• White LED illumination to 5 lux: No IR means cleaner daytime video without washout, but you'll lose night-vision capability in fully dark spaces. Plan accordingly if your entrance is unlit after hours.
• PoE+ pass-through: One downstream device on the pass-through port saves a switch port and cable run. Don't rely on it for critical devices—it's convenience, not redundancy.
• H.264 compression: At 5.28W typical power draw, the encoding overhead is minimal and storage footprint is reasonable for 24/7 recording on a small recorder or microSD card.
• IP65 + IK08 durability: Withstands weather and casual impact, but not designed-in extreme vandalism. If your entrance sees frequent deliberate abuse, spec a heavier-duty enclosure or add a protective cage.

Deployment Considerations:

• The proximity reader only outputs Wiegand—it does not manage door strikes. Wire it to an access control system or master station, not directly to a lock solenoid.
• 1.23 MP is entry-level for facial recognition. It works for general visitor verification but not forensic capture or multi-person crowd scenes at distance.
• No IR mode means this device is a poor fit for fully dark, unlit entries. If your lobby has no ambient lighting after hours, specify an IR-equipped camera or add supplemental floodlights.

Deploy the IX-DVF-PR in small to mid-size office lobbies, warehouse receiving docks, or apartment building vestibules where you want single-endpoint video and access logging but don't need high-resolution facial biometrics. It handles the job cleanly and integrates with both Aiphone and third-party systems via ONVIF. For larger facilities or higher security posture, choose a higher-resolution camera paired with a dedicated access control reader.
