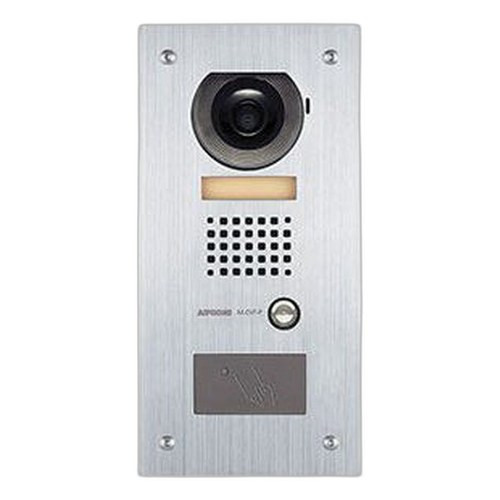

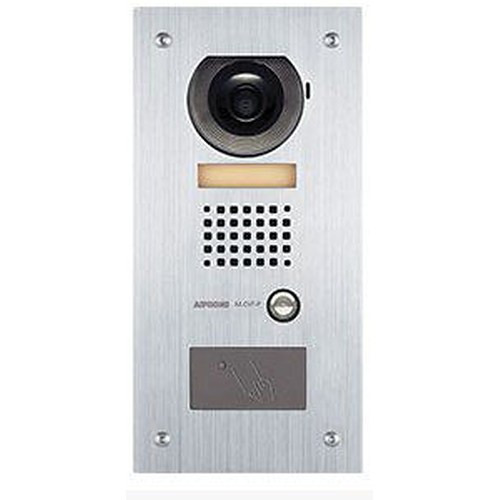

Aiphone AX-DVF-P Flush Mount Video Door Station

Aiphone AX-DVF-P Video Door Station with HID ProxPoint Plus Reader

Overview

The Aiphone AX-DVF-P is a flush-mount video door station designed for access control and intercom integration in residential and light commercial applications. Built from stainless steel with an embedded HID ProxPoint Plus proximity card reader, the AX-DVF-P combines video verification with secure access control in a single exterior unit. It connects via Cat-5e cabling to central Aiphone exchange units, supporting wired installations up to 980 feet from the master station.

Key Features

• Integrated HID ProxPoint Plus Reader: Embedded proximity card reader enables credential-based access control without separate hardware installation
• 2MP Fixed Camera: 1/4" CCD sensor captures clear identification video with a field of view of 2'1" vertical by 3'1" horizontal at 20 inches, suitable for facial recognition at entry points
• Automatic LED Illumination: Low-light compensation through LED illumination ensures visibility in dim conditions without requiring external lighting
• Polycarbonate Lens Cover: Protects the optical path from environmental contamination and minor impacts while maintaining optical clarity
• Hands-Free Communication: Built-in audio enables two-way conversation between door and interior master stations
• IP43 Environmental Rating: Provides protection against dust and water spray, suitable for covered entries and sheltered outdoor installations
• Stainless Steel Construction: Corrosion-resistant housing rated for temperature operation from 14°F to 140°F (-10°C to 60°C), supporting year-round deployment
• Flush or Surface Mount Flexibility: Includes back box for flush installation into walls; optional SBX-DVF-P bracket enables surface mounting where wall modification is not practical
• Cat-5e Wiring: Standard structured cabling simplifies integration with existing building infrastructure and supports runs up to 980 feet

Integration & Compatibility

The AX-DVF-P connects to Aiphone AX Series master stations, including the AX-8M Audio Master, AX-8MV Audio/Video Master, and AX-8MV-W for up to 8 master stations and 8 door stations. Multi-door deployments leverage the AX-16SW Add-On Selector to manage up to 16 door stations. The integrated HID ProxPoint Plus reader operates independently of video—credentials are authenticated at the reader, enabling access decisions without dependence on video verification or network connectivity. Hands-free audio communication routes through configured master stations, supporting simultaneous voice and credential verification workflows.

Physical Specifications

The unit operates across a wide temperature range from 14°F to 140°F (-10°C to 60°C), accommodating both cold and warm climates. Cat-5e connectivity supports extended cable runs up to 980 feet, allowing central master station placement in secure interior locations with door stations distributed across building perimeters. Flush mounting uses the included back box; surface mounting requires the optional SBX-DVF-P bracket.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the AX-DVF-P during integration planning for multi-unit residential and small office deployments. The combination of fixed video, proximity card authentication, and hands-free audio in a single door unit reduces hardware count and simplifies field wiring. The stainless steel construction handles coastal and humid climates effectively, and the 2MP resolution at the 20-inch standoff distance provides sufficient detail for access event auditing.

Technical Highlights:

• HID Integration: ProxPoint Plus reader is vendor-standard in access control—existing card stocks and badge management systems integrate without reconfiguration
• 2MP Fixed Optics: 1/4" CCD at 2'1"x3'1" field of view delivers consistent framing for entry verification; fixed lens eliminates focus drift and mechanical wear in outdoor environments
• IP43 Durability: Adequate for covered entries and sheltered vestibules; not rated for direct weather exposure or high-pressure washdown
• Cat-5e Simplicity: Standard cabling avoids PoE infrastructure costs; 980-foot run length supports large facility footprints with a single master station location

Deployment Considerations:

• Flush mounting requires wall prep and back box installation during construction or renovation; plan conduit routing for Cat-5e at the time of framing
• The AX-DVF-P (often searched as AX DVF P) operates as an analog intercom video station—it does not produce ONVIF streams and does not integrate with IP video management platforms, limiting deployment to closed Aiphone ecosystems
• Proximity card reader operates independently of master station availability; plan access control logic around this offline-capable behavior to avoid lockout scenarios during master station maintenance
• LED illumination is effective for dusk/dawn conditions but may require external supplemental lighting for night shift or basement-level installations

The AX-DVF-P is well-suited for access-controlled multifamily and light commercial entries where proprietary intercom integration, stainless construction, and hands-free audio justify the closed-system architecture. Evaluate carefully if future IP video integration or cloud-based analytics are anticipated.
